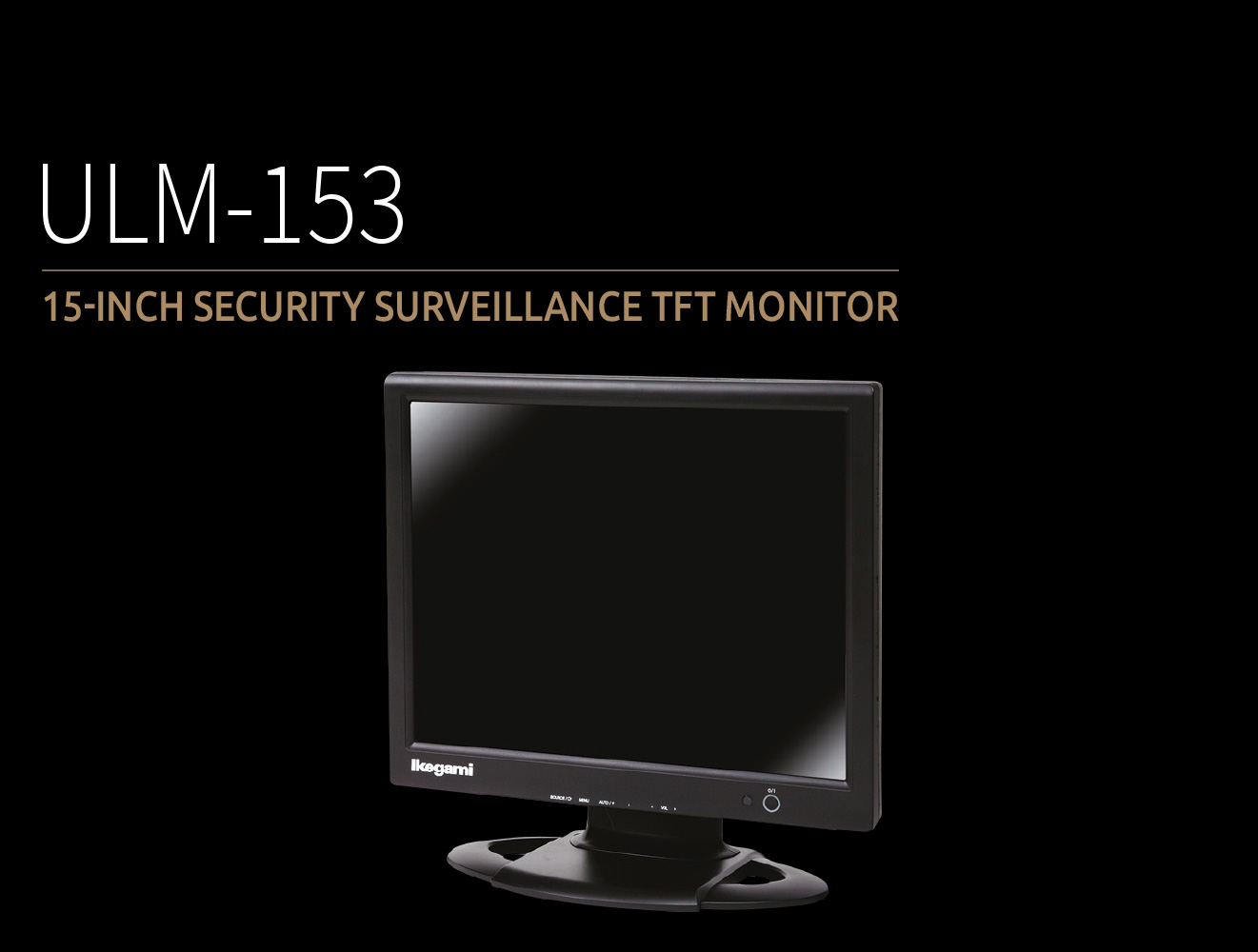

ULM-153
FUNCTIONS
RATINGS

  • High Resolution (More than 500TVL) and high Contrast
  • Rapid Response Time
  • Various Video and Audio Inputs
  • Colour Reproduction: 16 Million Colours

up


HIGH RESOLUTION, FAITHFUL COLOUR REPRODUCTION

High Resolution, Faithful Colour Reproduction.



HARD COAT LUSTER VIEW LCD PANEL WITH PROTECTION COVER

Hard Coat Luster view LCD panel with Protection Cover.



COLOUR REPRODUCTION: OVER 16 MILLION COLOURS

Colour Reproduction: Over 16 Million Colours.



RAPID RESPONSE TIME

Rapid Response Time.



WIDE VIEWING AREA WITH HIGH CONTRAST

Wide Viewing Area with High Contrast.



VARIOUS VIDEO AND AUDIO INPUTS

Various Video and Audio Inputs.



MOUNTABLE IN A 15-INCH EIA STANDARD RACK

Mountable in a 15-inch EIA Standard Rack



VESA MOUNTING AS STANDARD

VESA Mounting as Standard.

up

RATINGS / PERFORMANCE ULM-153
LCD Panel Size (H x V) 15-inch TFT (1024 x 768 pixel GA)
Max. Brightness 250 cd / m²
Contrast 700 : 1
View Angle60 p, 1000 TV lines (typ.) HD 170°
Limiting Resolution 500 TV Lines
Response Time 8 msec
Filter Type 3D Comb Filter
Video Signal Composite 2 ch input / output
S-Video 1 ch input / output (Y / C)
PC input Analogue RGB (VGA-SXGA)
PC audio Mini-jack x1ch
Audio input RCA connector x 2ch
Speaker Stereo 4 W (2W x 2ch)
VESA Interface 100 mm pitch, VESA standard
Dimensions  W 351 x H 348 x D 200 mm
Weight Approx. 3.7 kg (w. Stand)
Power Supply AC 100 V - 240 V
Operating Temperature 0 °C to +40 °C
