VFL-P700
RATINGS

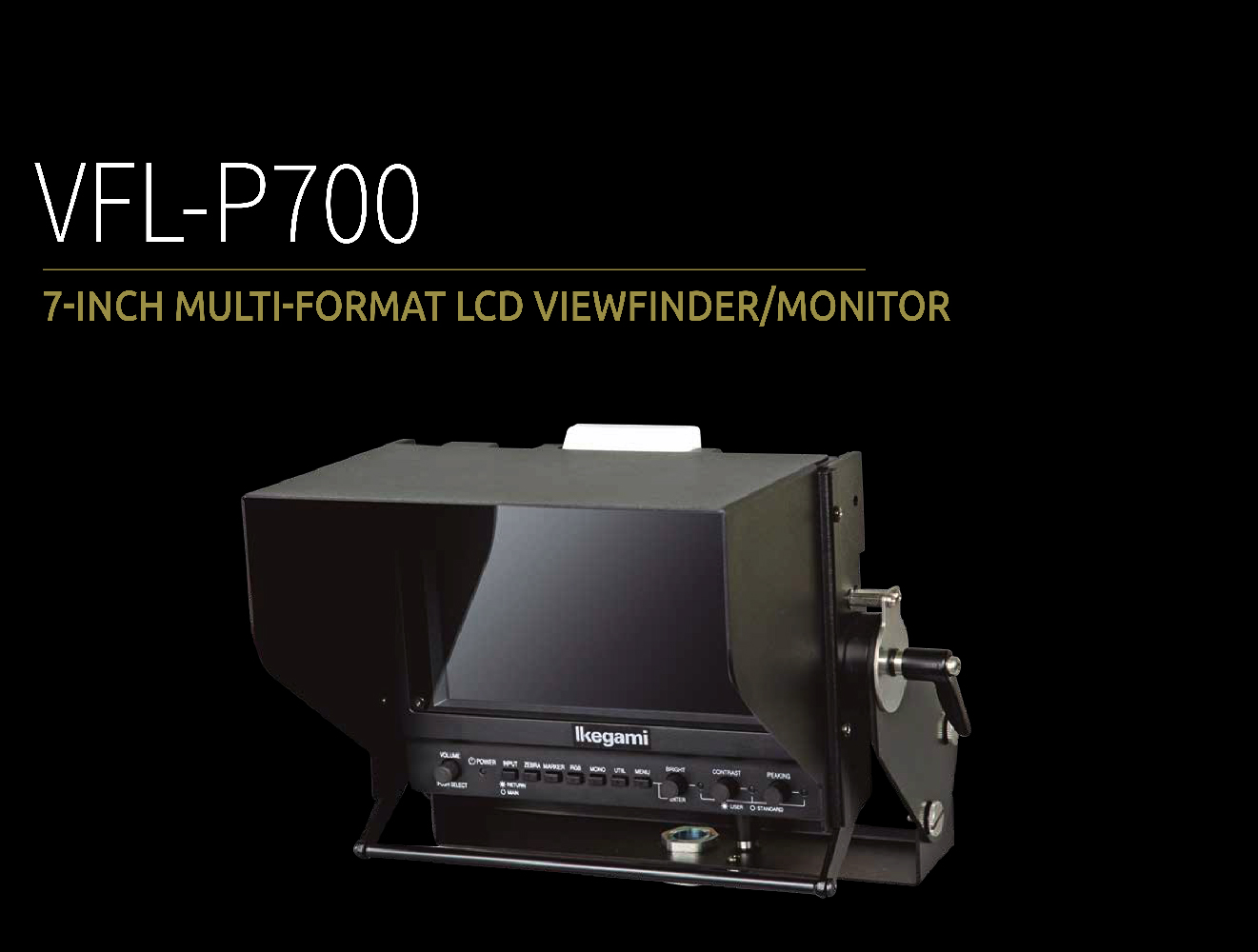

The VFL-P700 is an affordable Multi-Format HDTV Viewfinder in compact, small and light weight design. It employs a 7-inch LCD Panel with 800 by 480 dots achieving high contrast, high quality and good angle of view.

  • Multi-Format Support
  • De-Embedded analogue Audio Output
  • Vectorscope / Waveform Display
  • HD-SDI / SD-SDI Input and Output
  • Dot-by-Dot Function
  • Various Display Marker
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form




RELATED ITEMS


up

RATINGS / PERFORMANCE VFL-P700
Power Supply DC 12  V to 12  W
Ambient Humidity 30   % to 85 % (non-condensing)
Dimensions / Weight W 195 x H 153 x D 50 mm - 1 kg (VF body + cable)
Input Signals YPbPr signal BNC  x 3 / HD / SD-SDI BNC x 2 - 75 Ω
Screen 152.4 (H) x 91.4 (V) mm - 800 (H) x 480 (V) dot
Tally Input TALLY IN 1: G / R - TALLY IN 2: R only
MON Speaker Build-in x 1
Audio Output XLR 3-pin (Male) x 2 - Output level : -20 dBu
Headphone Output Ø 6.3 Stereo Jack x 1
DOWNLOAD UNICAM HD CATALOG 2022 (3.3 MiB)
DOWNLOAD RATINGS/PERFORMANCE (1.9 MiB)
