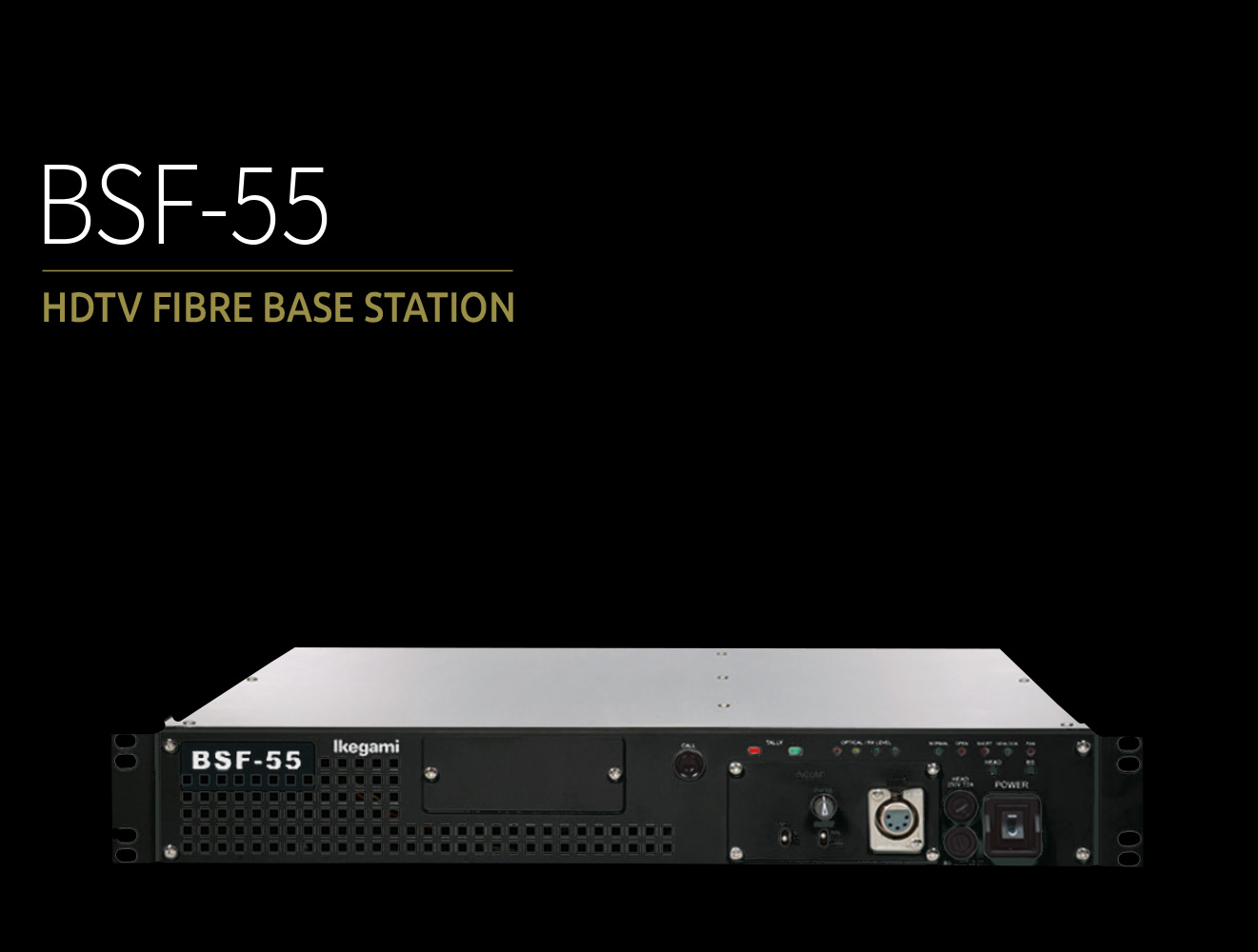

BSF-55
RATINGS


The BSF-55 is newly designed in compact size of 1.5 RU height with 19 inch rack mount width, transmitting uncompressed high quality pictures. HDTV (1080 i 50/60, 720 p50/60, 1080 psF25) and SDTV (625 i 50, 575 i 60) formats are supported simultaneously in both, digital and analogue domain.

You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form




up

RATINGS / PERFORMANCE BSF-55
Input Signal Genlock PS 1 Vp-p or Tri-level / 75 Ω bridged / VBS / BBS 75 Ω bridged VBS / BBS 75 Ω bridged
Input Signal Return Video BNC 2 ch single end input SDI & BNC 2 ch single end input VBS
Input Signal Q-TV VBS BNC 1 ch
Input Signal Intercom Select from 4-wire / Clearcom / RTS
Input Signal PGM Sound / Tally 2-LINE / R, G
Output Signal HD / SD-SDI BNC 4 ch - 4 x HD or 2 x HD & 2 x SD or 4 x SD
Output Signal VBS BNC 2 ch
Output Signal PM HD / SD-SDI BNC 1 ch Select from HD / SD
Output Signal PM HD / SD-SDI BNC 1 ch Select from HD / SD
Output Signal PM SD BNC 1 ch Select from R, G, B, Y, VBS
Output Signal WFM BNC 1 ch Select from HD-SDI / SD-SDI
Output Signal Intercom Select from 4-wire / Clearcom / RTS
Output Signal MIC 0 dBs / +4 dBs 2 ch Low impedance
Output Signal Tally R, G
Dimensions / Weight W  483  x  H  66.4  x  D  405 mm / approx. 7 kg
