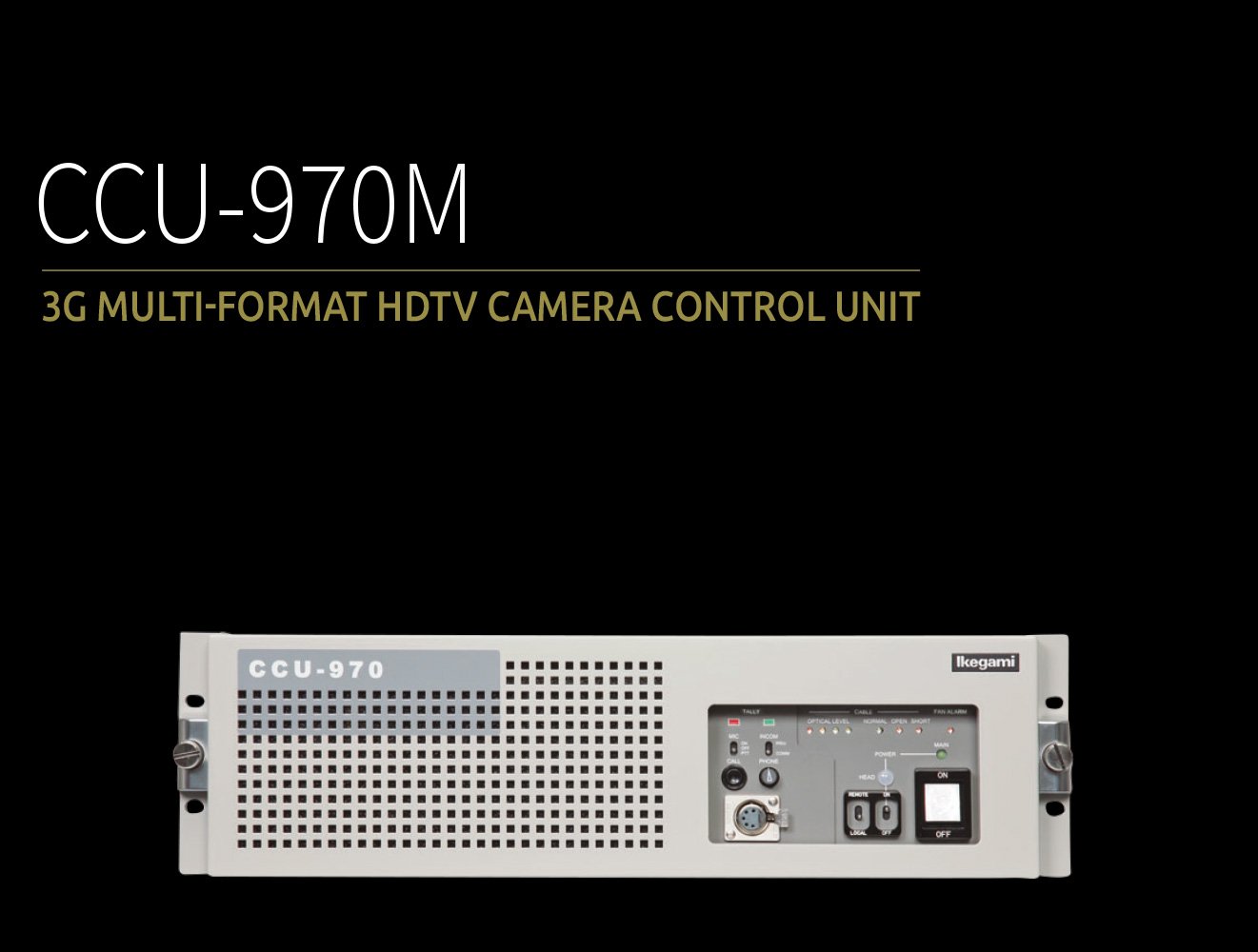

CCU-970M
RATINGS


CCU-970M is capable for HD triax transmission to work with Unicam HD (+TA-97).

  • Maximum Cable Distance: 3 km Hybrid SMPTE fibre 1.5G and 3G Transmission
  • Maximum Cable Distance: Single fibre mode up to 20 km
  • Support of 3G HD-SDI, 1.5G HD-SDI, Dual link, SD-SDI, analogue
  • BBS or Tri-Level Genlock
  • CCU-970M – Multiple Transmission – Fibre and Triax
  • Compression and delay free analogue Triax Technology
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



up

RATINGS / PERFORMANCE CCU-970M
Input Signal Genlock Tri-level sync or BBS 75 Ω BNC x2 (Loop Through)(HDTV / SDTV automatic detection) UB REF: 10 Field ID 75 ohm BNC x2 (Loop Through)
Input Signal Return Video HD 3G-SDI / HD-SDI BNC 4 ch single end input; 2 ch only in case of frame synchronizer function is enabled
Input Signal Return Video SD (Option) SD-SDI BNC 4 ch single end input or SD-SDI (2 ch) / VBS (2 ch) selectable (option)
Input Signal Q-TV SD VBS BNC 2 ch
Input Signal Q-TV HD HD-SDI BNC 1 ch (option)
Input Signal Intercom Select from 4-wire / Clearcom / RTS
Input Signal PGM Sound 2-LINE
Input Signal Audio Trunk Option
Input Signal Tally R, G (Y as option)
Output Signal 3G / Dual Link / HD-SDI BNC 4 ch / Select from 3G-SDI / DUAL-LINK / HD-SDI
Output Signal SD-SDI BNC 2 ch
Output Signal Sync. Signal BNC 1 ch Select from HDTV (tri-level 0.6 Vp-p ) / SDTV (HV 2 Vp-p)
Output Signal RGB / YPbPr Select a pair from HDTV RGB / YPbPr, SDTV RGB / YPbPr 1 ch
Output Signal PM HD BNC 2 ch Select from 3G-SDI / DUAL-LINK / HD-SDI
Output Signal PM SD (Option) BNC 2 ch Select from SD-SDI / Analog (R / G / B / Y / ENC)
Output Signal WFM WFM1 Select from 3G-SDI / DUAL-LINK A / HD-SDI
Output Signal WFM WFM2 Select from DUAL-LINK B / HD-SDI / SD-SDI / SD analog
Output Signal Trunk Video HD-SDI BNC 1 ch (option) (only in 1.5 G mode)
Output Signal Intercom Select from 4-wire / Clearcom / RTS
Output Signal MIC 0 dBs standard 2 channels Low impedance
Output Signal Tally R, G (Y as option)
Dimensions / Weight W 483 x H 133 x D 454 mm, approx. 28 kg
