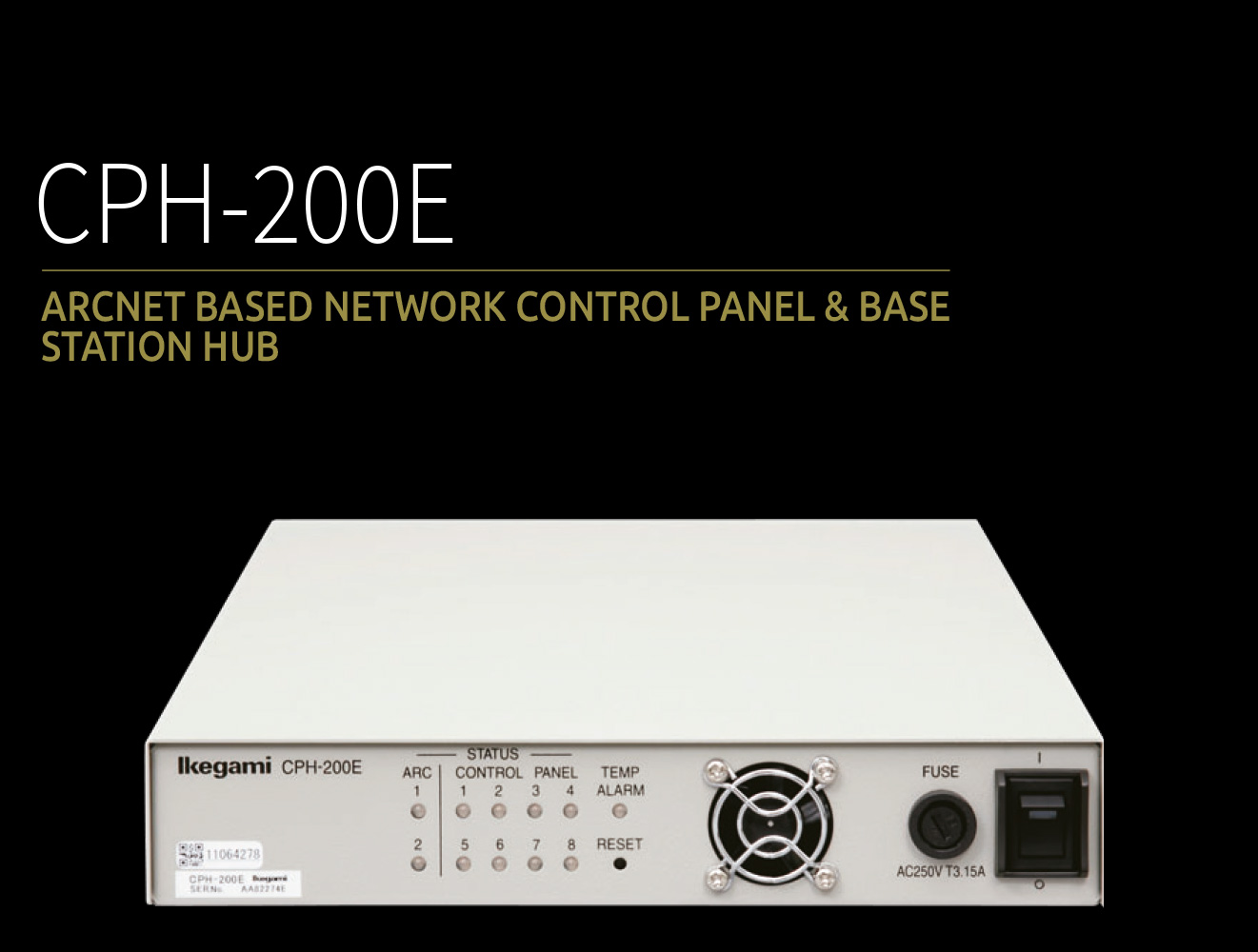

CPH-200E
RATINGS


CPH-200E is designed as the HUB unit (CP HUB) for Ikegami’s network capable control system.

  • Arcnet Support with Redundancy
  • 8-Control Panel Ports
  • 6-CCU / Base Station Ports
  • Daisy Chain coaxial Network up to 500 m
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



up

RATINGS / PERFORMANCE CPH-200E
Power (CPH) AC 100 to 240 V 1.5 to 0.8 A 50/60 Hz (The power supply to the control panel is contained)
Operating Temperature 0 °C to +45 °C
Storage Temperature -25 °C to +60 °C
Ambient Humidity 30 % to 90 % (non-condensing)
External Dimensions W 217 x H 38.6 x D 400 mm
Weight 2.8 kg
CC Optical Colour Compensation 3200 K, 4300 K, 6300 K; Cross, Option
Modulation Index 35% (typ.) @ 4K / 60 p, 60% (typ.) @ HD
DC Utility Power output UHK-430M: HR10A-4pin (x1): DC 12V 1.0A( max)
UHK-430S: D-Tap (x1) DC 12V 1.5A (max)
Dimensions / Weight (T.B.A.) W 148.5mm x H 243mm x D 340mm, 4.5kg
