HDL-F3000
RATINGS

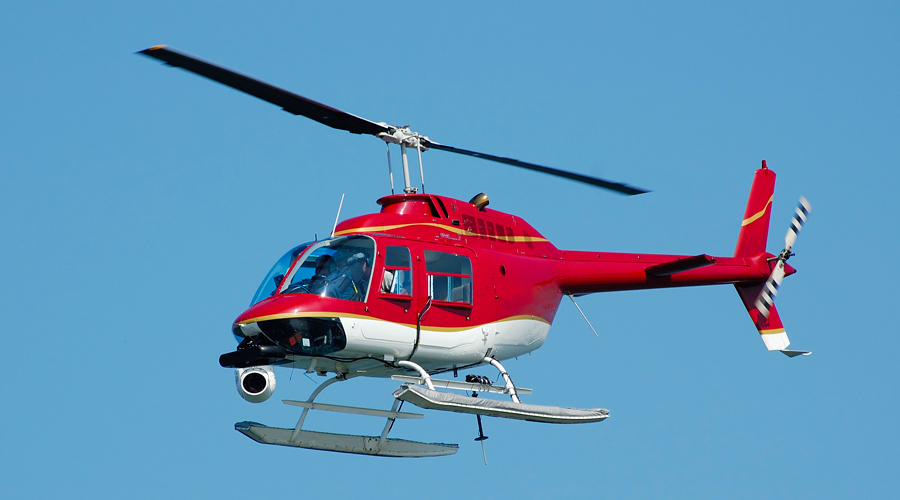

The HDL-F3000 is a high sensitivity compact two-piece separate optics camera for gyro-stabilized gimbal applications. Equipped with 2/3-inch 2.6 megapixel CMOS sensors, it achieves a minimum illumination of 0.007 lux, with image enhancement features that include haze removal, backlight comp, and digital zoom. The HDL-F3000 operates in 1080i, 720p, and 30p formats.

  • Extreme Starlight Vision
  • Clear Image
  • Multi format
  • Quality Picture under any Illumination
  • Compact & Light Camera Head
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



up

RATINGS / PERFORMANCE HDL-F3000
Image Sensor Three 2/3-inch 2.6million pixel CMOS
Scanning System 1080/59.94i, 1080/50i, 1080/29.97psF, 1080/25psF, 720/59.94psf, 720/50p
Lens Mount BTA S-1005B
Electronic Colour Compensation 3200 / 4300 / 6300 / 8000K
Operating Temperature Camera Head -20 °C to +45 °C
Operating Temperature CCU -10 °C to +45 °C
Storage Temperature Camera Head -30 °C to +60 °C
Storage Temperature CCU -20 °C to +60 °C
Dimensions Camera Head W 100 x H 123 x D 80 mm
Dimensions CCU W 120 x H 105 x D 180 mm
Weight Camera Head Approx. 1.0kg
Weight CCU Approx. 1.5kg
S/N Ratio 64dB or more(1080/59.94i with NR ON)
Limiting Resolution 1000 TV lines
GAIN -6,-3, 0,+3,+6,+9,+12,+18,+24,+30,+36,+42,+48,+54,+60,+66,+72dB
GAMMA OFF, 0.35, 0.40, 0.45
Electronic Shutter 1/100, 1/120, 1/250, 1/500,1/1000, 1/2000, 1/4000, 1/10000(Variable Shutter available)
Frame Accumulation 1/30, 1/15, 1/10, 1/8, 1/6, 1/5, 1/4, 1/3, 1/2, 1, 2
Digital Extender x1.1 to 10.0
Power Consumption Camera Head Approx. 9.8W
Power Consumption CCU Approx. 23W
Output Signal 2ch HD-SDI(SMPTE292M)
External Sync Input HDTV PS 1Vp-p, Sync 0.6Vp-p
External Sync Input SDTV VBS 1Vp-p, BBS 0.3Vp-p
