HLM-5013WR
RATINGS

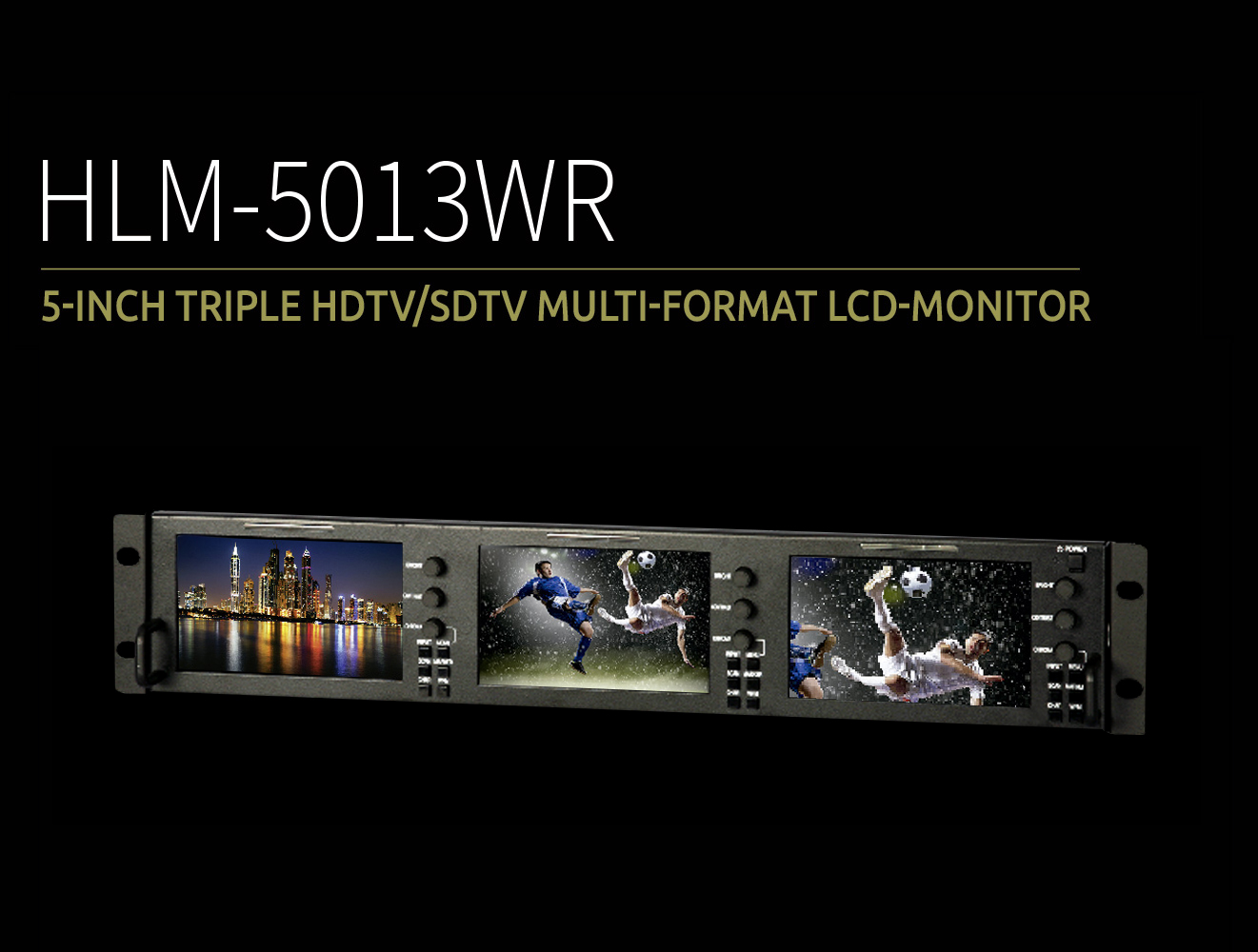

Ikegami introduces a triple 5 inch high performance, rack mount ready, professional broadcast monitor that features SD-SDI / HD-SDI / 3G-SDI Multi-Format Signal Inputs, 800 x 480 with LED Back Light panel resolution, Title Generator, Embedded Audio Level Indicators up to 16ch, Waveform Display, Vector Scope and many of the other advantages as higher level broadcast display offerings.

  • Resolution: Panel Resolution 800 x 480 with LED Back Light
  • SMPTE Standards SD-SDI/HD-SDI/3G-SDI
  • SD-SDI – 480i/59.94, 575i/50
  • HD-SDI – 1080i 60/59.94/50, 1080p 30/29.97/25/24/24sf/23.98/23.98sf
  • 3G-SDI – 1080p 60/59.94/50
  • Title Generator
  • Remote & Tally – DSUB15
  • Embedded Audio Level Indicators up to 16ch
  • Time Code Indicator
  • Waveform Display
  • Vector Scope Display
  • Low Profile 2RU
  • Various Controls: Brightness, Contrast, Chroma, Aperture, HV Delays, Aspect Ratio, Scan Size,
    Area Markers, Safety Markers, Mono/Color, Color Temperatures
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



RATINGS / PERFORMANCE HLM-5013WR
Display
LCD TFT-LCD
Active Area (mm) 108.02 x 64.8, 5" (Diagonal Wide)
Resolution 800 (H) x 480 (V)
Pixel Pitch (mm) 0.135 (H) x 0.135 (V)
Color Depth 16.7 M, 24-bit true colour
Luminance (cd/m2) 180
Contrast Ratio 1000:01:00
Input SMPTE-424M, SMPTE-292; SMPTE-259M BNC x 2
Output SMPTE-424M, SMPTE-292,
SMPTE-259M BNC x 1 (Loop through)
Supported Video format SMPTE 425M-AB: 1080p (60/59.94/50), SMPTE 274M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/23.98), 1080PsF (30/29.97/25/24/23.98), SMPTE 296M: 720p (60/59.94/50/30/29.97/25/24/23.98), SMPTE 125M: 525i (NTSC, 480i 60), ITU-R BT.601: 625i (PAL, 575i50)
General
Power 10~19 VDC
Power Consumption Approx. 28.8W (12V, 2.4A)
Operating Temperature 0℃~+40℃
Operating Humidity 30%~85% (Non-Condensing)
Storage Temperature -20℃~60℃
Storage Humidity 0%~90%
Weight 1.7 kg
Dimension W481 x H88.1 x D56.2 mm
