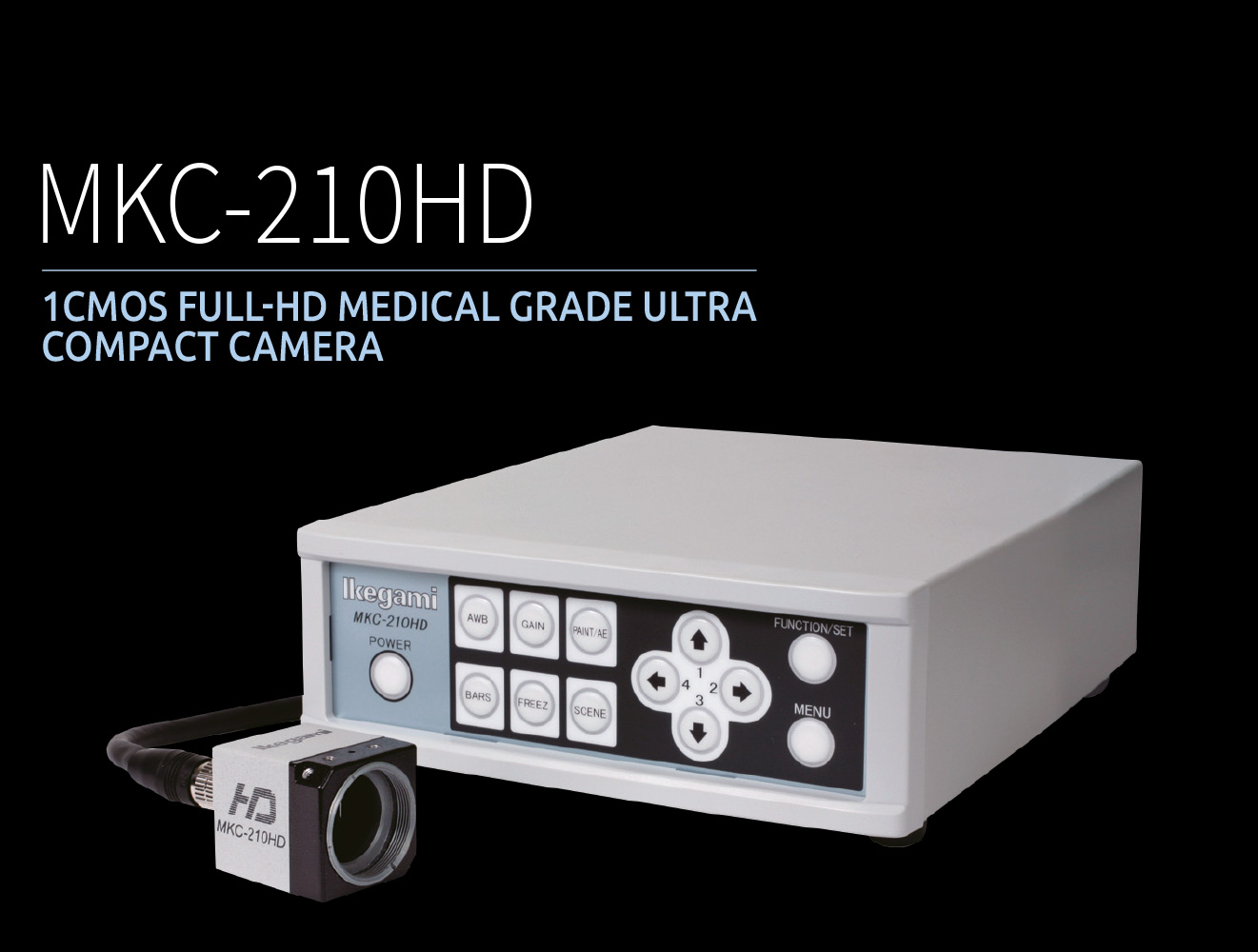

MKC-210HD
FUNCTIONS
RATINGS


The MKC-210HD employs 2.1 Mega pixel Full-HD 1/3-inch CMOS sensor to provide 900 lines of high definition video images, and the optimal video quality required for high-end medical video systems.

  • 1 Chip CMOS progressive Image
  • 1/3-inch Full-HD (1920x1080)
  • FPGA based
  • High Resolution: Horizontal 900 TV Lines, S/N 50dB
  • High Sensitivity: F7 at 2000 lux
  • Ultra Compact Camera Head: W31xD31xD36mm
  • Excellent Operability for Use in the Medical Field
  • OEM Possibility
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: medical@ikegami.de
Contact Form





up


ULTRA COMPACT CAMERA-HEAD

The camera-head is extremely small (W31xH31xD36mm) and lightweight.



HIGH RESOLUTION AND HIGH SENSITIVITY

The MKC-210HD employs a 2.2Mega pixel 1/3-inch CMOS Sensor to provide 900 lines of high resolution video image, high S/N ratio of 50dB and high sensitivity of F7/2000lux.



DIGITAL PROCESSING

Video signal processing is done in the same signal process as Ikegami’s broadcast cameras to constantly achieve the same high level of quality and reliability.



VARIOUS TYPES OF VIDEO SIGNAL OUTPUTS

Equipped with several video signal outputs such as digital HD signal (HD-SDI), DVI digital signal (1920×1080), NTSC/PAL composite signal (VBS) and S-VIDEO to deal with various types of signals. IP Ethernet output and 2nd DVI output are available as an option.



AUTOMATIC ELECTRONIC SHUTTER SYSTEM (SHUTTER IRIS)

Electronic shutter (Shutter Iris) functionality maintains the optimized performance in a variety of situations.



AUTOMATIC IRIS CONTROL

Accurate iris control is possible with Auto-iris camera adaptors and Auto-iris lenses.
* This is used for the shadowless lamp system.



PICTURE FREEZE

Pressing the Freeze button on the CCU panel will hold the current image. This allows the detailed inspection of situations where the motion could hide the details. The function is also available with the optional foot pedal. The pictures can be recorded into SD card of optional IP Ethernet board.



SCENE FILE

4 scene files are provided to keep pre-set memories for functions and controls. It is easily possible to call suitable programs to adapt the conditions for taking photographs by this function.



FLIP AND TURN FUNCTION

Digital capture means that captured images can be flipped horizontally and vertically by the digital processing to correct TV images against the optical inversion caused by optical instruments. An optional foot pedal is required to allow an external operation for this function.



ELECTRONIC ZOOM FUNCTION

The center of video image on the screen can be zoomed up to four times by using this function.



ACCESSORIES

  • IP BOARD
  • RECORDING BOARD
  • DUAL FOOT PEDAL
up

RATINGS / PERFORMANCE MKC-210HD
Scanning System 1920 x 1080 50 / 59.94 Progressive
Image Sensor 1/3-inch CMOS
Lens Mount C-mount
Limiting Resolution More than 900 TVL
Sensitivity 2000 lx F7/ 3200° K
S/N Ratio 50 dB (Gamma / Detail OFF)
GAIN Up to 18 dB
Output Signal HDTV HD-SDI BNC 2ch
  DVI (1920 x 1080 i / p) 1 ch (2nd Output as Option)
Output Signal SDTV Composite (VBS) BNC 1 ch
  S-Video S-Terminal 1 ch
Output Signal IP Ethernet RJ45 1 ch (Option)
SD Card Interface Available (IP Ethernet Option Board)
Camera Cable 5 m or 10 m single (selectable depending on the Compositing)
DC Iris Control Available (from CCU)
External Control RS-232C 1 ch
Operating Temperature 0°C to +40° C
Power Requirement DC 12V ±10 %
Weight Camera Head: 60 g; CCU: 1.1 kg
Dimensions Camera Head: W 31 x  H 31 x  D 36 mm; CCU: W 170 x  H 58 x D 200 mm
