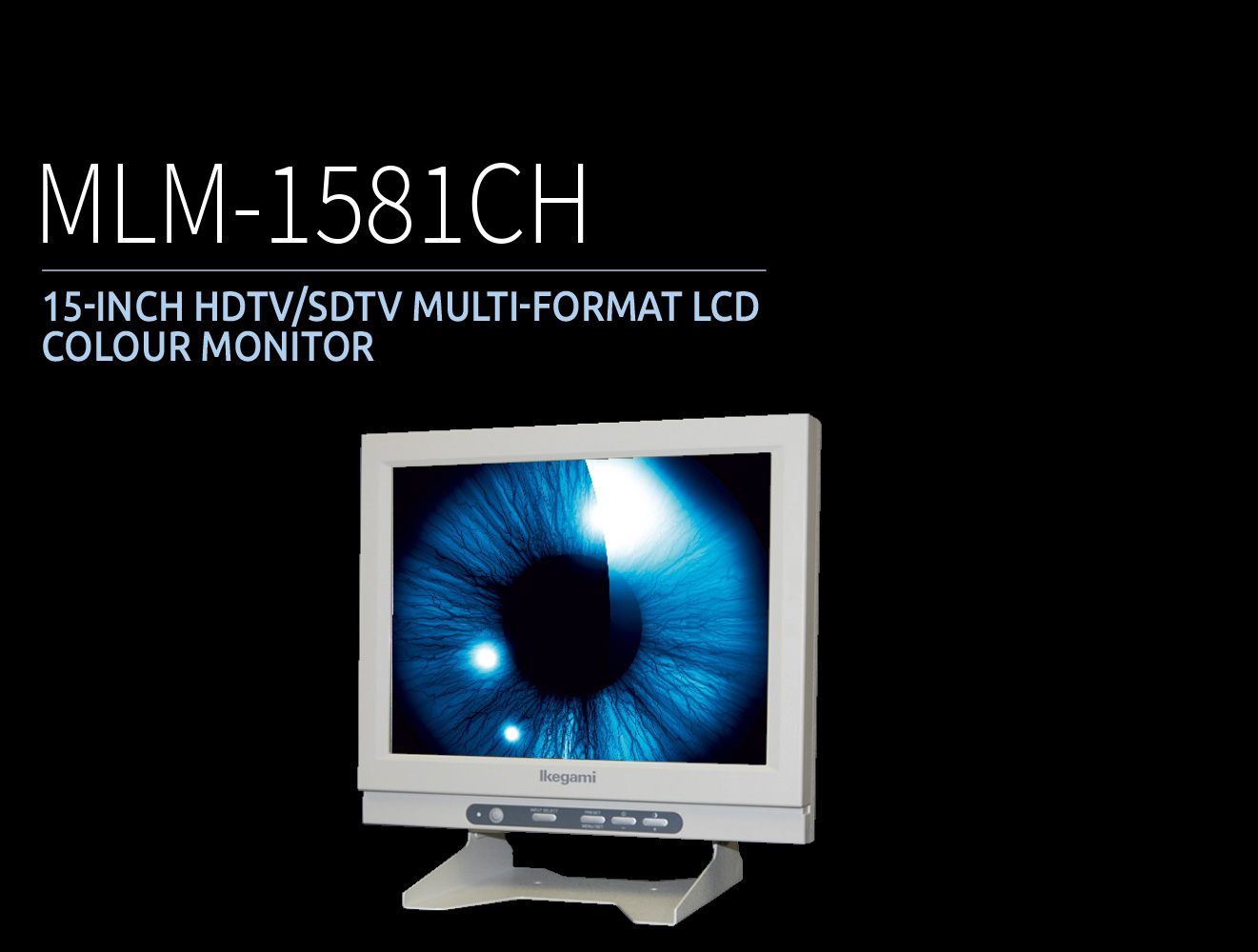

MLM-1581CH
FUNCTIONS
RATINGS


The MLM-1581CH is a Multi-Format 15 -inch LCD Monitor for easy operation with higher performance.

  • Fully compliant with medical safety directives
  • Strong, rugged construction, but light in weight
  • High Resolution faithful colour Reproduction
  • High Performance from New Digital Process Engine
  • Very Wide View Area with High Contrast
  • Various Gamma Characteristics
  • LSD Protection Panel (Option)
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: medical@ikegami.de
Contact Form



up


STRONG, RUGGED CONSTRUCTION, BUT LIGHT IN WEIGHT

All Ikegami medical LCD monitors are designed to withstand harsh applications and environments for a long service period. Built with a strong Aluminum Alloy frame body for easy handling in setup and also for a good anti-radiation performance.



HIGH RESOLUTION, FAITHFUL COLOUR REPRODUCTION

All Ikegami medical LCD monitors employ a high quality LCD panel of high resolution with very natural color reproduction capability, enhanced video quality is achieved by a newly employed powerful Signal process engine.



HIGH PERFORMANCE FROM NEW DIGITAL PROCESS ENGINE

Easy viewing is assured with a smart digital process, compensating for, digital Jaggy-free lines in an interlaceprogressive conversion, irritating glare from differences in each pixel and general noise generation especially in dark areas.



VERY WIDE VIEWING AREA WITH HIGH CONTRAST

Both 178 degrees, Vertical and Horizontal viewing angles are achieved ensuring much easier viewing of the panel from different positions with a high screen contrast ratio. The IK-LCD75-100-B VESA type Wall Mount Adaptor is available as an useful option for 15”, 19” and 24” Ikegami LCD monitors.



VARIOUS GAMMA CHARACTERISTICS

5 different Gamma characters can be set, including the Standard CRT Gamma of 2.2, the DICOM Gamma and so on.



OTHER USEFUL FEATURES

  • For ease of operation and for versatility, Ikegami medical LCD monitors can provide a lot of digital interface inputs and outputs, such as HD SDI, DVI as options, on top of the standard composite, Y/C and component signal provision.
  • The user file menu comes equipped as standard with non-volatile memory for 5 different file settings on each type of input.
  • A screen protection panel and water-proof front control panel are available as an option.
  • A VESA mount with 100mm space fitting holes is provided for easy mounting with moving arms, wall mount or ceiling mount.
up

RATINGS / PERFORMANCE MLM-1581CH
LCD Diagonal Size 15-inch 304mm (H) x 228mm (V)
Pixels 1024 (H) x 768 (V)
Contrast Ratio 500 : 1
Viewing Angle (L / R) 178°
Input Video Signal 3G/HD-SDI N/A
Input Video Signal DVI 1ch (DVI-D)
Input Video Signal Composite, Y/C 1ch (BNC, Y / C incl. looping out), NTSC / PAL
Input Video Signal Analogue Component 1ch (BNC incl. looping out), RGB/Y, Pb, Pr
Input Video Signal PC 1ch (D-Sub 15 pin), Analogue R, G, B
Multi Input N/A
Video Process Engine 10 bit
Colour Space 72% (of NTSC)
Colour Gradinet 8bit x 3 (16.7 Million colours)
Power Requirement AC adaptor AC 100 V - 120 V, 200 - 240 V ±10% 50 / 60 Hz
Weight / Dimensions Approx. 6.0 kg; W 366 x H 320 x D 102mm
