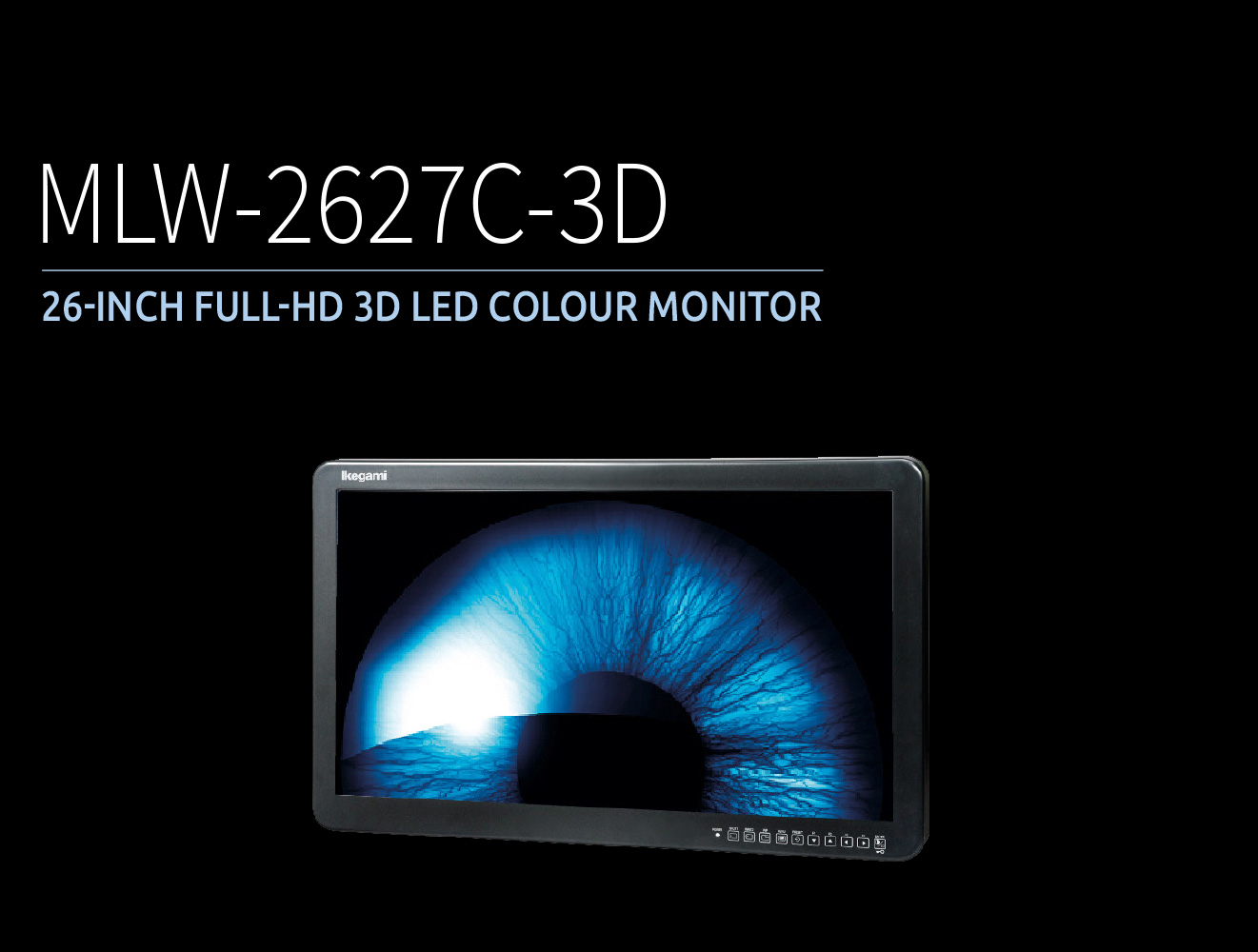

MLW-2627C-3D
FUNCTIONS
RATINGS


MLW-2627C-3D is a wide screen 26” LCD monitor with the high resolution 1920 (H) x 1080 (V) Full HD LCD panel, maximum intensity of 450 cd / m2 and wide angle of 178 degrees. Also, LED backlight panel supports high brightness & contrast. Furthermore HD-SDI 3G signal can be input for the true progressive imaging and more suitable to natural images. High performance with 3D HD quality is provided for medical specialists and experts.

  • Fully compliant with medical safety directives
  • New Full Flat design for Front panel
  • New IPS panel with LED  backlight (450 cd/㎡)
  • High Resolution, True color display (1.07 Billion Color gradient)
  • Jaggy-less I / P Conversion Process
  • Multi display function
  • Built-in 3D Composer, Dual inputs interface
  • Switchable between 2D and 3D
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: medical@ikegami.de
Contact Form




up


12 BIT SIGNAL PROCESS ENGINE

12-bit signal processing based on Ikegami image processing technology allows the smooth gradation of colour.



10-BIT LCD PANEL

Further smooth colour gradation can be achieved by processing 10 bit signal from signal input to display.



178 DEGREES HIGH CONTRAST VIEWING ANGLE

LCD panel based on IPS technology is employed for 178 degrees high contrast viewing on UP/DOWN/LEFT/RIGHT. This characteristic prevents from intensity and colour shift by the viewing angle.



FLIP FUNCTION

Images can be flipped horizontally and vertically, allowing the correction of image inversion caused by the optics.



AUTOMATIC CONTRAST ADJUST FUNCTION

Based on brightness on the image, monitor will be able to expand each dinamic range of black and white automatically.



PICTURE AND PICTURE, SIDE BY SIDE

SDI signal input can be combine to show as P in P or Side by Side with other signal input (DVI-D, S-Video, Component, RGB or Video).



DYNAMIC IMAGE CONTRAST ENHANCER

By calculating the brightness of the entire screen and extending the dynamic range between white and black in real time, automatically optimized black level and high contrast are achieved.



USER SETTING MEMORY SWITCHING FUNCTION

Colors, brightness and other image quality-related settings are user-adjustable for eight different groups. They are readily switchable.



STILL IMAGE

It is possible to check a still image against the current video. The input video and memorized still image can be compared on the screen.



NO VENT STRUCTURE

This monitor is cooled by air convection without vents and fans which allows easy cleaning.

up

RATINGS / PERFORMANCE MLW-2627C-3D
LCD Size 26-inch
Backlight LED
Pixels 1920 (H) x 1080 (V)
Brightness 450 cd/m2
Screen Size 576.0 (H) x 324.0 (V)
View Angle 178° (H / V)
Contrast Ratio 1400:1
Display Colours 1,073,741,824 Colours
Input Video signal 3D SDI/DVI; Line by Line, Side by Side; Top and Bottom; SIMAL (Simultaneous)
Input Video signal 3G / HD-SDI 2ch with loop-through
Input Video signal Composite 1ch with loop-through
Input Video signal Y/C 1ch with loop-through
Input Video signal Component 1ch with loop-through
Input Video signal DVI 2ch, with 1ch loop-through
Certification UL60601-1, CSA C22.2 No.601.1
EMC FCC Class A, VCCI Class A
Power Requirement AC 100 - 120, 200 - 240V +/-10% 50/60Hz
Weight / Dimensions Approx. 8.3kg / 640 (W) x 405 (H) x 84 (D) mm
