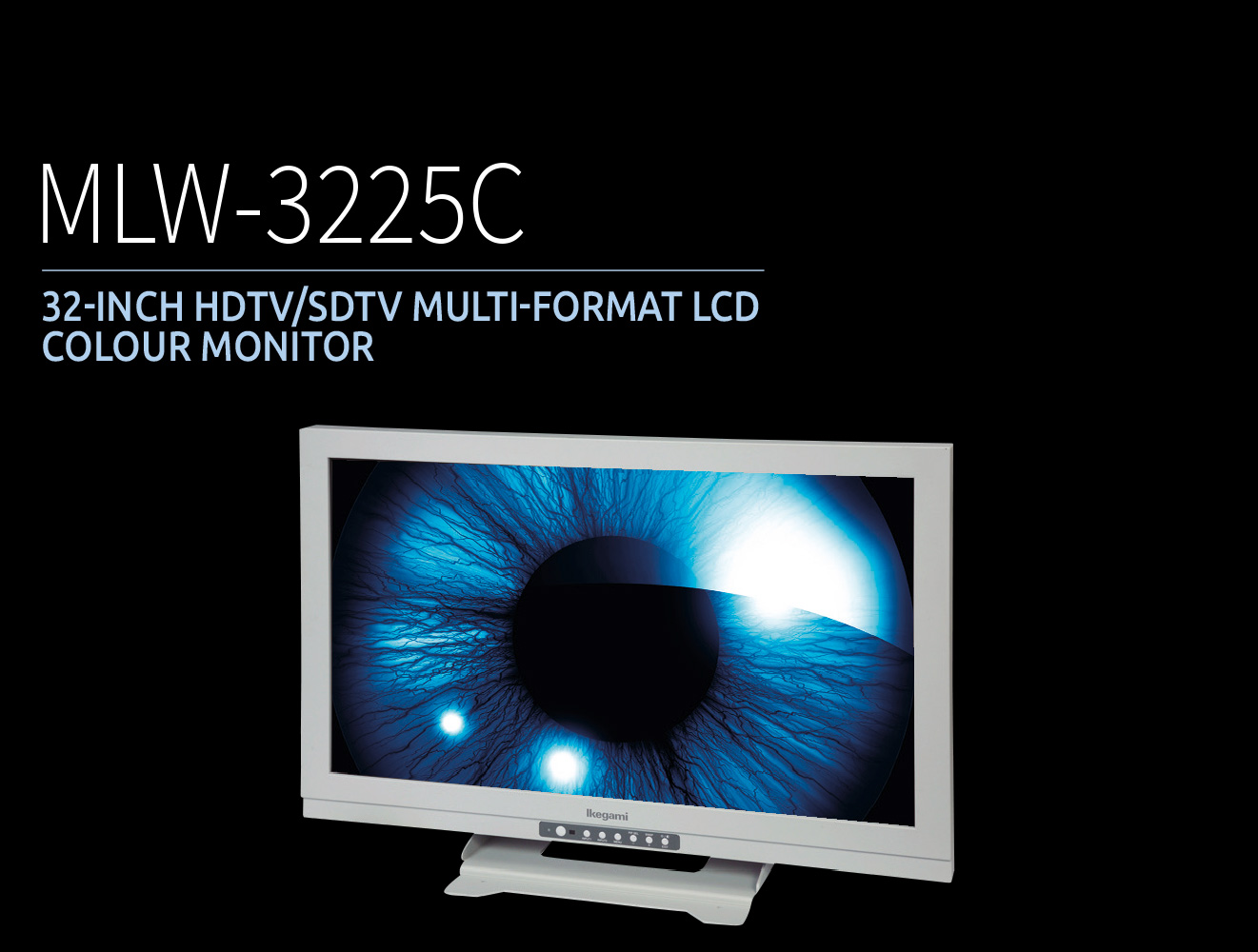

MLW-3225C
FUNCTIONS
RATINGS


MLW-3200C series are large Widescreen 32-inch LCD Monitors with the high resolution 1920 (H) x 1080 (V) Full-HD LCD Panel, 1 Billion colour graduation (10-bit x 3-Colour) and wide angle of 178 degrees. MLW-3225C-3D is the latest development for surgical operation 3D monitoring systems.

  • Fully compliant with medical safety directives
  • High Resolution, True Colour Displays
  • 32-inch Widescreen Full-HD LCD Panels 1920 (H) x 1080 (V) Pixel
  • Jaggy-less I / P Conversion Process
  • Multiple Input and Format Capabilities
  • Various Gamma Characteristics
  • Display Power Management Function
  • Anti-Reflection Hard Coat Screen
  • Dual Display Function
  • Maximum 30 Meters Length of DVI-D Cable available
  • Strong, rugged construction, but light in weight
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: medical@ikegami.de
Contact Form



up


MULTI-DISPLAY FUNCTION WITH SIDE-BY-SIDE AND PICTURE-IN-PICTURE

Two types of input images can be displayed simultaneously with Side-by-Side and Picture-in-Picture display mode.



VARIOUS GAMMA CHARACTERISTICS

Variety of Gamma setting can be set, including the Standard CRT Gamma of 2.2 and the DICOM Gamma.



HUE AND CHROMA SETTING FOR ALL KIND OF INPUT SIGNAL

Colour can be adjusted flexibly for user’s favorite by Hue and Chroma.



ANTI-REFLECTION HARD COAT SCREEN

Anti-Reflection hard coat screen is installed as standard to reduce the effect of the reflection and to protect the LCD panel.



DISPLAY POWER MANAGEMENT FUNCTION

The chosen signal is not input for more than 30 seconds, the monitor automatically can turn OFF to save the power. The function can set ON/OFF.



USER MEMORY

Maximum four (4) settings can be set as preset. The parameter such as colour temperature, hue, chroma, gamma, R/G/B gain and display mode can be saved for each user or application.



MAXIMUM 30 METERS LENGTH OF DVI-D CABLE AVAILABLE

Signal compensation function is installed and the signal degradation is prevented. Then, maximum 30 meters length of DVI-D cable can be used with the monitor.



VESA MOUNT AVAILABLE

A variety of installation brackets for arms and walls can be chosen with the combination of VESA mount.



10-BIT SIGNAL PROCESS ENGINE

10-bit signal processing based on Ikegami image processing technology allows the smooth gradation of colour.



10-BIT LCD PANELS

Further smooth colour gradation can be achieved by processing 10 bit signal from signal input to display.



JAGGY-LESS I/P CONVERSION PROCESS

Ikegami unique Jaggy-less I/P conversion process enables the smooth and clear lines on the display.



APPLICABLE SAFETY REGULATION

UL6060-1, CAS22.2No.601.1, EN60601-1



EMC REQUIREMENT

FCC Class A, EN60601-1-2, CVVI Class A

up

RATINGS / PERFORMANCE MLW-3225C
LCD Diagonal Size 32-inch 698 mm (H) x 393 mm (V)
Pixels 1920 (H) x 1080 (V) FHD
Brightness 500 cd / m²
Contrast Ratio 1300 : 1
Viewing Angle (L / R) 178°
Input Video Signal HD-SDI 1ch (BNC incl. looping out) *2nd input available as option: M-MSDI2; 1ch (BNC incl. looping out)
Input Video Signal DVI 1ch (DVI-D) *2nd input available as option: M-RGB3
Input Video Signal DVI 1ch (DVI-D) *2nd input available as option: M-RGB3 Composite, Y/C 1ch (BNC, Y / C incl. looping out), NTSC / PAL
Input Video Signal Analogue Component 1ch (BNC incl. looping out), RBG / Y, Pb, Pr *2nd input available as option: M-RGB3
Input Video Signal PC 1ch (D-Sub 15 pin), Analogue R, G, B, (VGA to WUXGA) *2nd input available as option: M-RGB3
Multi Input Picture in Picture, Side by Side
Video Process Engine 10 bit
Colour Space 72% (of NTSC)
Colour Gradinet 10 bit (1 Billion colours)
Power Requirement AC 100 V - 120 V, 200 - 240 V ±10% 50 / 60 Hz
Weight / Dimensions Approx. 13 kg / W 780 x H 493 x D 117.5 mm
