OCP-10
RATINGS

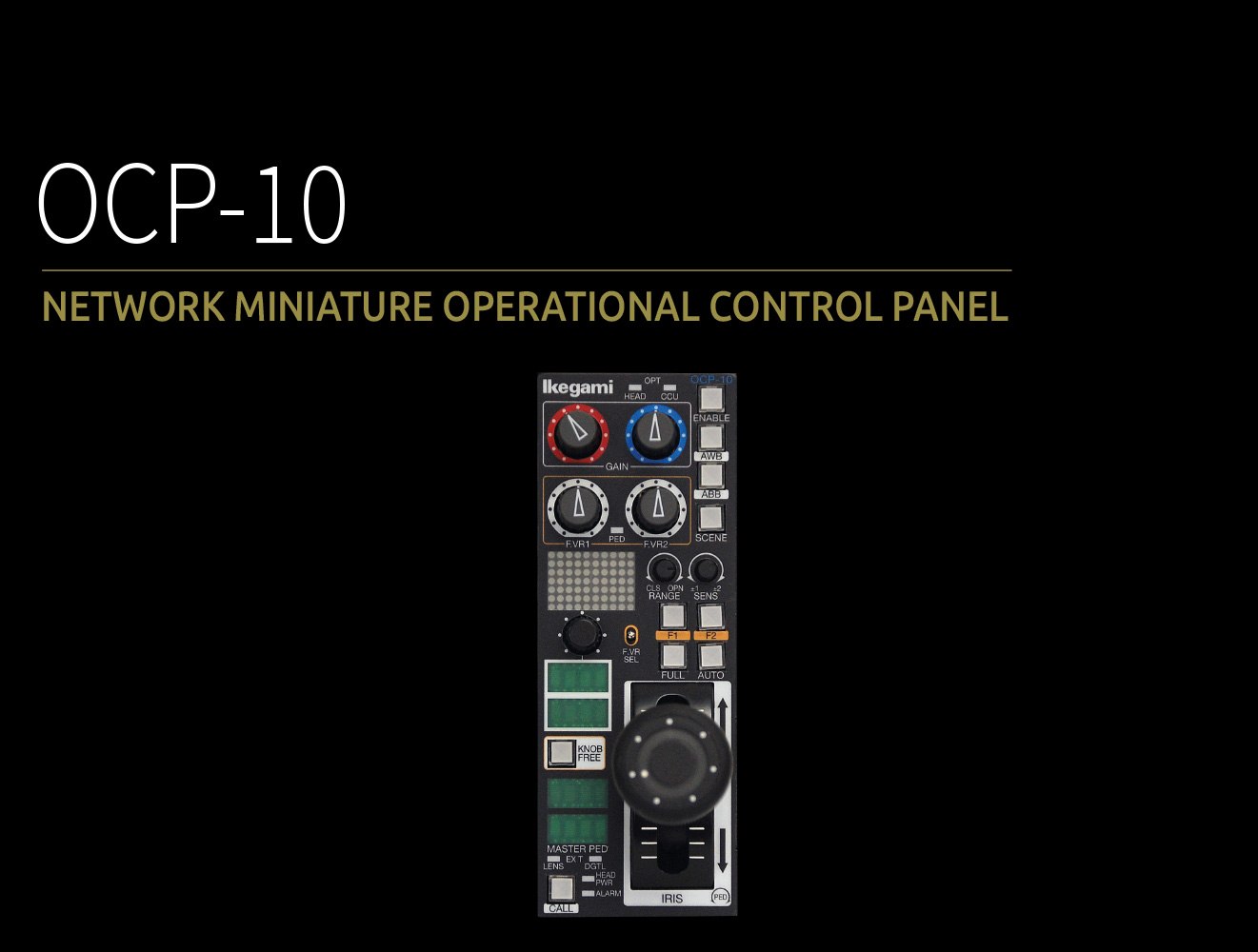

OCP-10 is a Miniature Operational Control Panel with essential functions for basic camera operation in a smart shape. It utilizes direct ICCP connection as well as Ethernet network support. Whenever size matters, OCP-10 is the perfect fit.

  • Small, compact, light weight
  • Essential Camera Controls
  • Tally In/Out
  • Ethernet & ICCP Connection
  • Full Menu Access
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



up

RATINGS / PERFORMANCE OCP-10
Power Requirements DC +9.0 to +18.0 V (nominal DC +12 V) approx. 5.5 W
Temperature / Humidity 0 °C to +40 °C / 30 % to 90 % (non-condensing)
Dimensions / Weight W 60 x H 160 x D 160 mm / approx. 950 g
Switches Menu, Function 1, Function 2, Scene File, Knob Free, ABB, AWB, Call,
Auto Iris, Iris Full, Enable
Controls R & B Gain, Function Control 1 & 2, Function Select, Master Pedestal, Iris,
Iris Range, Iris Sensitivity
