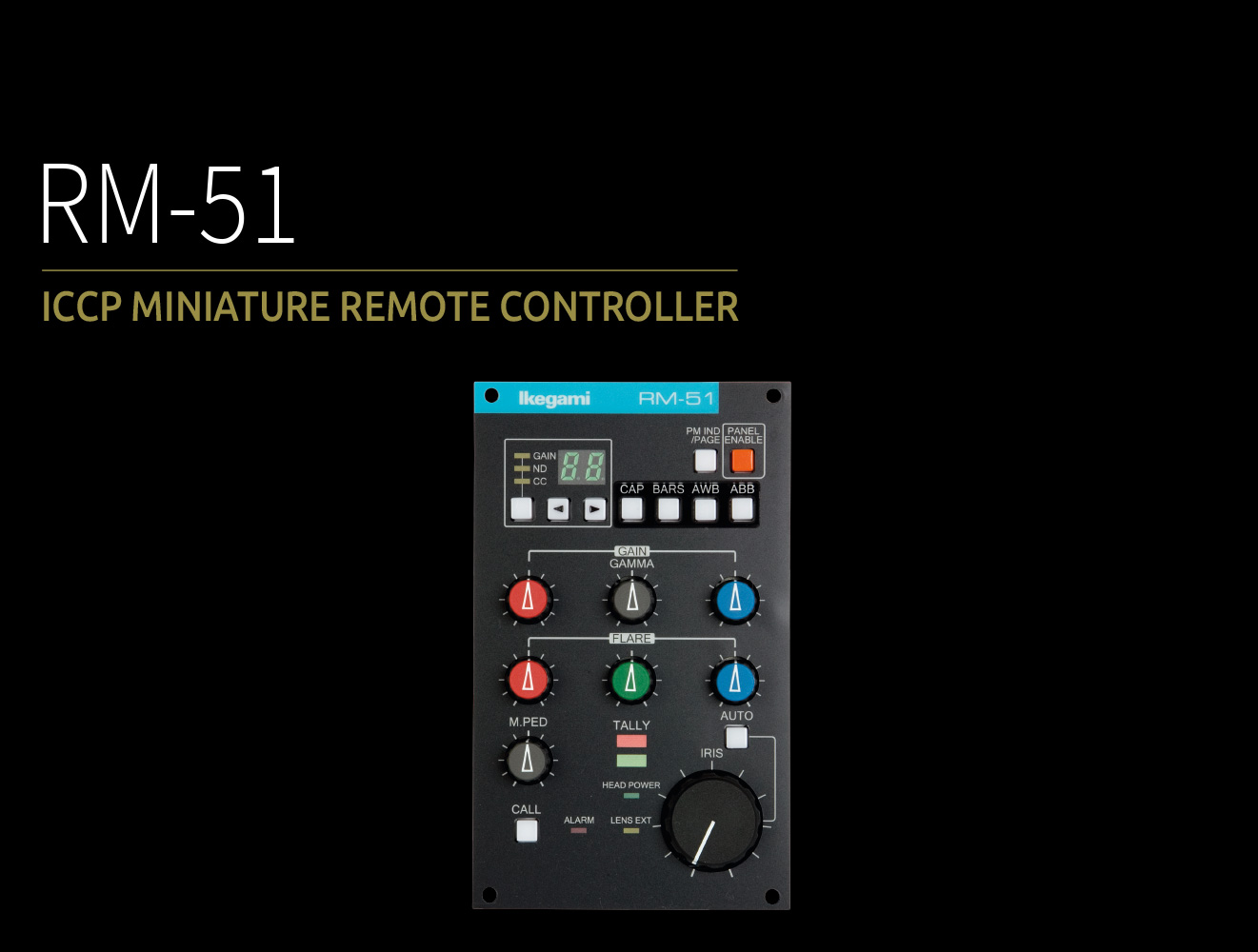

RATINGS / PERFORMANCE RM-51
Power Requirements	DC +9.0 to +18.0 V (nominal DC +12 V), approx. 3.6 W
Temperature / Humidity	0 °C to to +40 °C/ 30 % ~ 90 % (non-condensing)
Dimensions / Weight	W 90.7 x H 76.9 x D 151 mm / approx. 450 g
Switches	Menu, Digital Extender, Scene File, Black Stretch, ABB, AWB, AVC, Auto Iris, Filter Hold, Bar
Limiting Resolution	2000 TV lines (typ.) 4K / 60 p, 1000 TV lines (typ.) HD
Controls	R & B Gain, DTL, R-G-B-Master Flare or R-G-B Pedestal, Master Pedestal, Iris
