TA-97
RATINGS

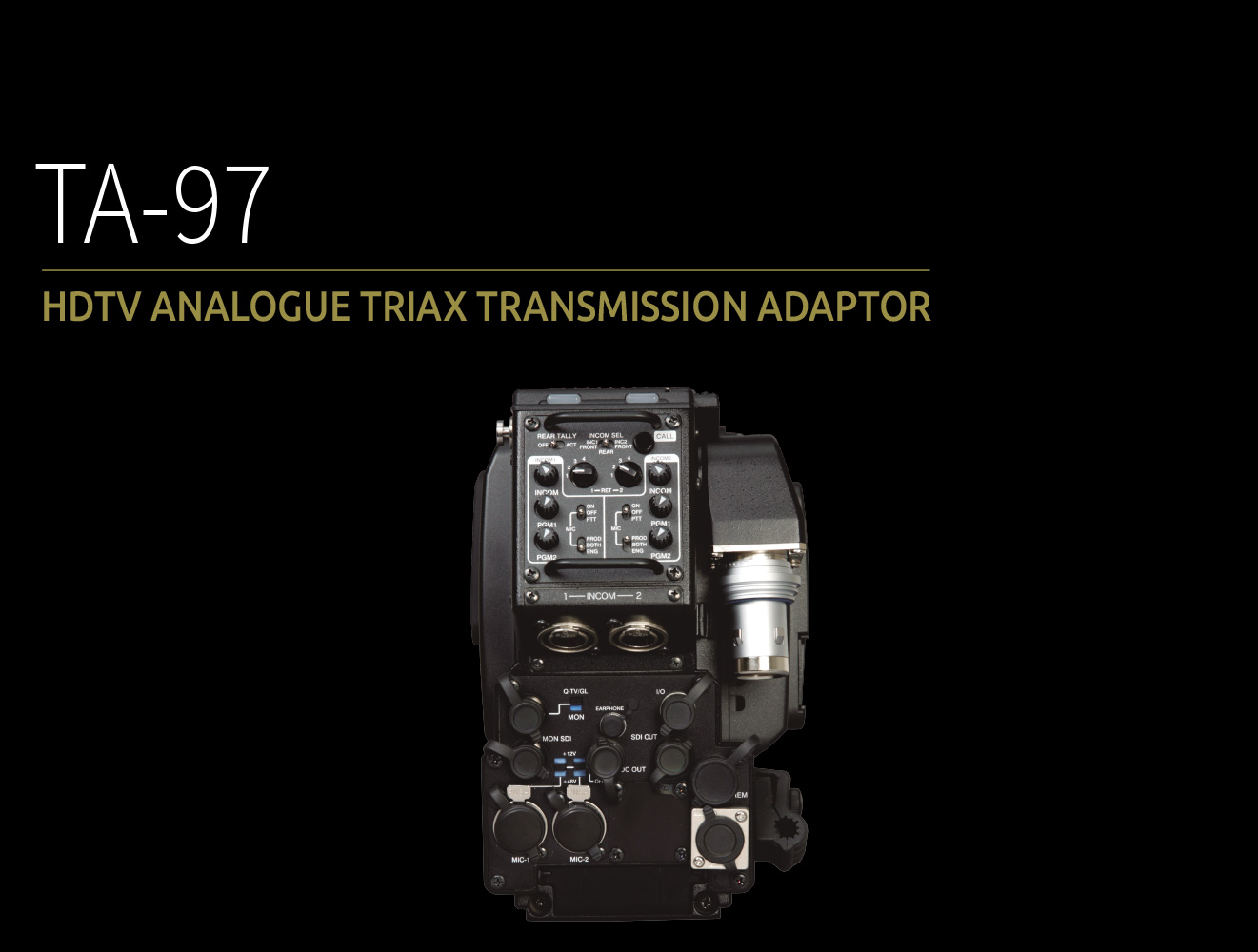

Compression free analogue HD triax transmission adaptor for Unicam HD.

You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form




up

RATINGS / PERFORMANCE TA-97
Output Format 1080 i or 720 p (59.94 Hz or 50 Hz)
Input Signal (with HDK-55) External Sync BB/PS 0.6 Vp-p ±6 dB 75 Ω BNC CN 1 ch
Input Signal (with HDK-55) Audio -60 dB to +4 dB (variable) / -20 dB (fixed)
XLR CN 2 ch (600 Ω balanced)
Input Signal (with HDK-55) Intercom Intercom 2 ch XLR-5 or 7-Pin, ENG & PROD Line
Output Signal (with HDK-55) HD-SDI BNC 1 ch
Output Signal (with HDK-55) Analog Video R,G,B D-Sub CN 1 ch (for System Expander)
Output Signal (with HDK-55) Q-TV VBS BNC 1 ch (Q-TV / Mon HD-Y video selectable)
Output Signal (with HDK-55) Monitor Video SDI BNC 1 ch (VF / RET / Main video selectable)
Transmission Length
(Main Line / RET Signal)
75 m to 500 m diameter 9.2 mm by BELDEN
150 m to 1000 m diameter 13.2 mm by BELDEN
75 m to 750 m diameter 8.8 mm by FUJIKURA
150 m to 1350 m diameter 14.5 mm by FUJIKURA
