UHK-435
RATINGS

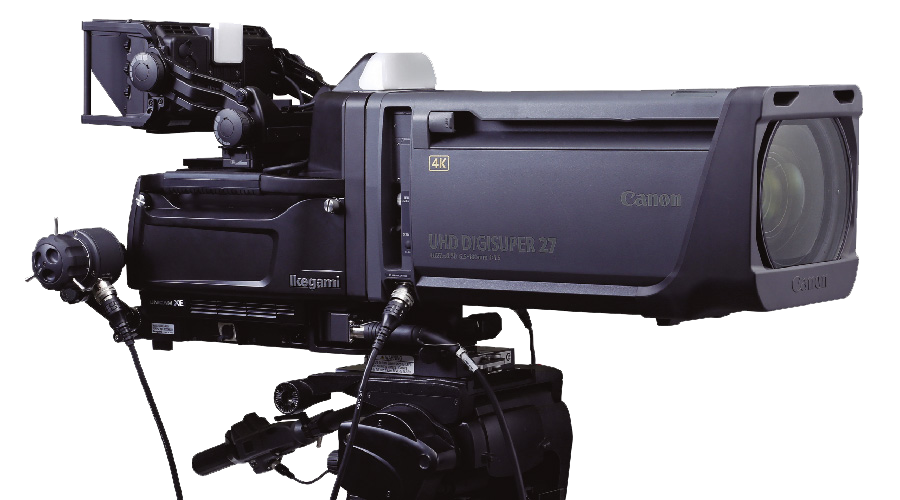

The UHK-435 is the world’s first 2/3-inch 3-CMOS sensor 4K/HD studio camera. It captures the extended depth of field required for studio and outdoor production and can be used with B4 bayonet-mount large studio or OB lenses. The camera delivers wide dynamic range and wide colour gamut, fully supporting HLG (Hybrid Log-Gamma) conforming to HDR International Standard (ITU-R BT). UNICAM XE series peripherals such as the CCU-430 camera control unit, VFL 701 D 7-inch full HD LCD viewfinder and 7.4-inch OLED viewfinder are fully compatible with the UHK-435. The viewfinder can be positioned close to the extended line of the optical axis. Interfaces are available for a wide range of signal protocols including Quad 3G-SDI, 12G SDI and IP.

  • 2/3-inch 3 CMOS native 4K sensor
  • Conventional B4 mount lenses
  • No colour aliasing due to 3 chip technology
  • Future expandibility
  • 16 axis colour corrector and focus assist
  • Ultra wide-bandwidth fibre transmission
  • 4K/2K simulcast operation and HD cut out of the 4K picture
  • Various interfaces like Quad 3G-SDI,12G SDI, VoIP, Gigabit ethernet data trunk
  • Wide colour space and HDR
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



up

RATINGS / PERFORMANCE UHK-435
Image Sensor 2/3-inch 3CMOS native 4K
Scanning System 3840 x 2160 59.94 p / 50 p
Scanning System 1920 x 1080 119.88 p / 100 p / 59.94 p / 50 p / 29.97 p / 25 p / 23.98 p
Sensitivity F11 @ 4K / 50 p, F11 @ HD / 50 i, F10 @ 4K / 60 p, F10 @ HD / 59.54 i at 2000 lx (White reflection 89.9 %)
S/N Ratio Full-HD 62 dB (typ.)
Limiting Resolution 2000 TV lines (typ.) 4K / 60 p, 1000 TV lines (typ.) HD
ND Optical Filter Disc Clear, 1/4, 1/8, 1/16, 1/64
CC Optical Colour Compensation 3200 K, 4300 K, 6300 K; Cross, Option
Modulation Index 35 % (typ.) @ 4K / 60 p, 60 % (typ.) @ HD
DC Utility Power output (Option)
Dimensions / Weight (T.B.A.) W 315mm x H 328.5mm x D 398mm, 17kg
