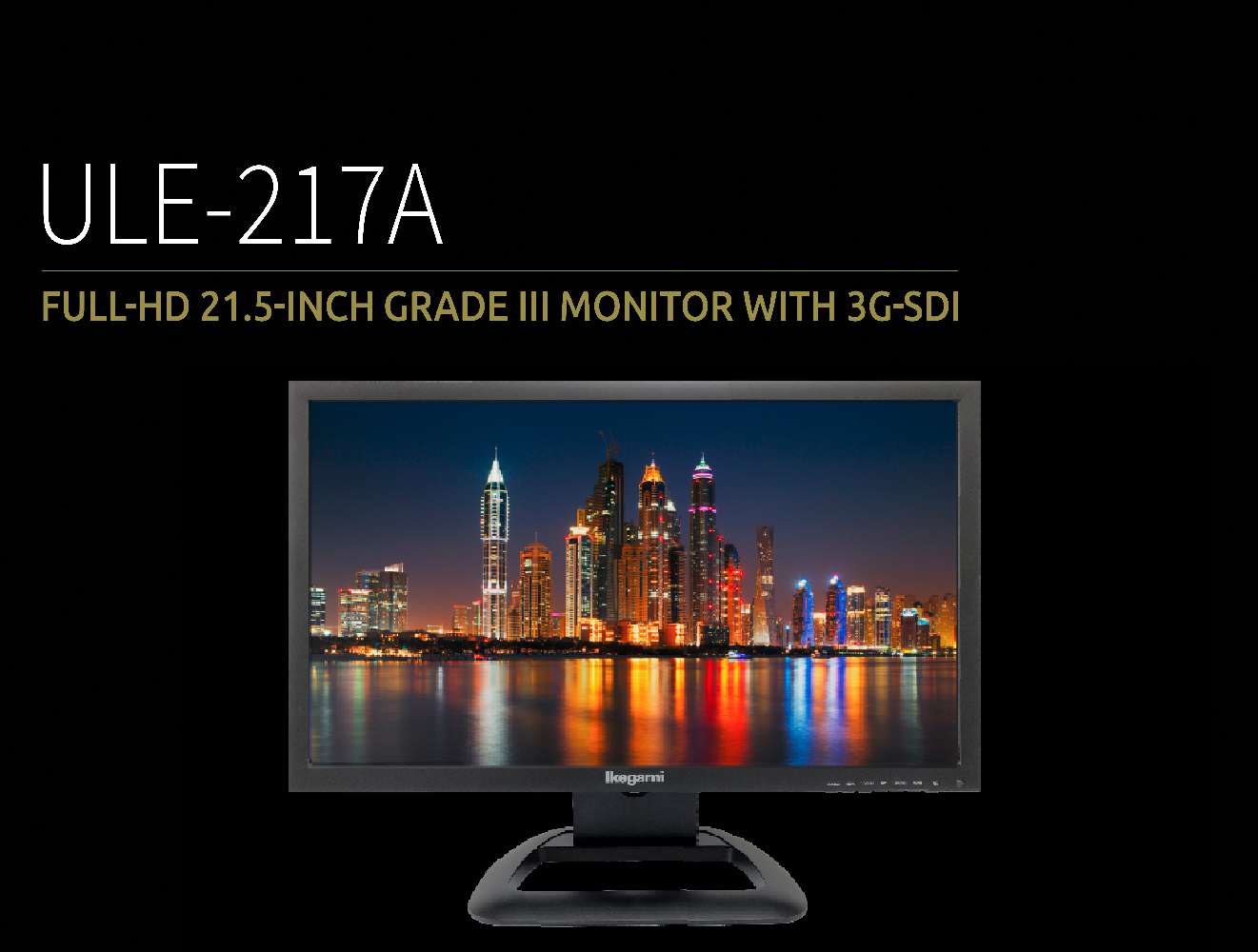

ULE-217A
RATINGS


The Ikegami ULE-217A is a professional multi-purpose Full-HD monitor with 3G/HD-SDI and HDMI interface. It is ideal for PC applications or HD video monitoring. With a VESA interface it can be easily racked, wall-mounted or used as a desktop. The monitor comes as standard with a protection screen or is optionally available without the protection screen (model ULE-217R).

  • Full Full-HD 3G multi-format LED monitor
  • 3G/HD-SDI input
  • 3D comb-filter and de-interlace
  • Anti-resistant coating protection cover (optionally without)
  • Built-in loudspeakers
  • Eco-friendly LED solution
  • Built-In HDCP encryption engine
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



up

RATINGS / PERFORMANCE ULE-217A
LCD size 21.5-inch
Pixel pitch (mm) 0.248 x 0.248
Brightness 250cd/m2
Contrast ratio 1000:1
Viewing angle (H/V) 170°/160°
Response time 5ms or better
Maximum Resolution 1920 x 1080
3G SDI in/ Loop-through out 1 in / 1 out
Component in 1 (3 x BNC)
HDMI in 1
DVI in 1
VGA in (15 pin D-sub) 1
Audio output 1 (stereo headphone jack)
3G SDI input format 1080P@60/59.94/50Hz Level A
HD-SDI input format 1080i (60/59.94/50); 1080P(30/29.97/25/24/23.98); 1080Psf (30/29.97/25/24/23.98); 720P (60/59.94/50/30/29.97/25/24/23.98)
SD-SDI input format 525i (NTSC 59.94); 625i (PAL 50)
2K input format (YCbCr 4:2:2) 2048 x 1080P@24/23.98/24sF/23.98sF
Active screen size 476.64mm x 268.11mm
Dimensions (W x H x D) 515mm x 310mm x 50mm (without stand)
Weight 5.42kg (without stand)
Electrical Rating 12V 3.3A
