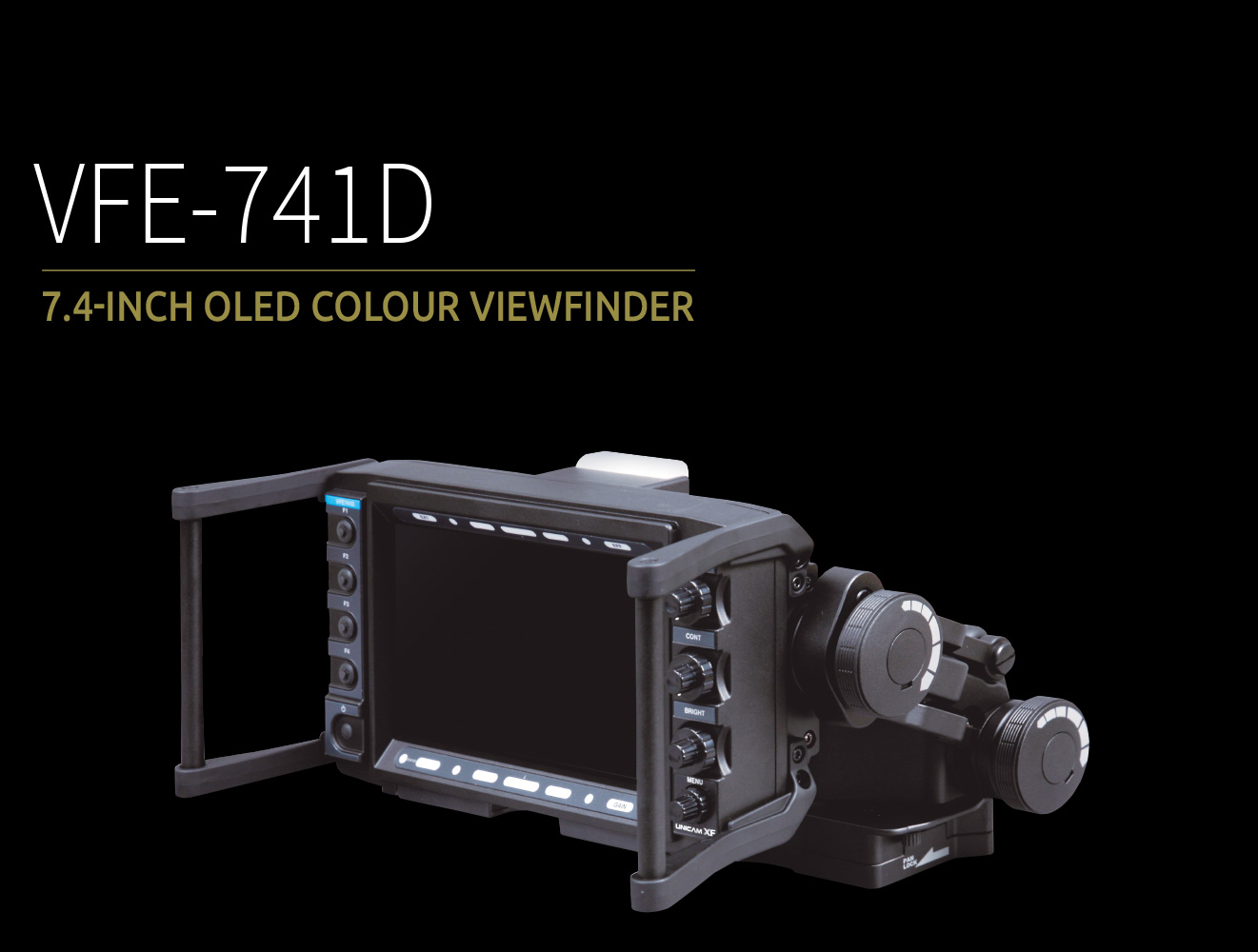

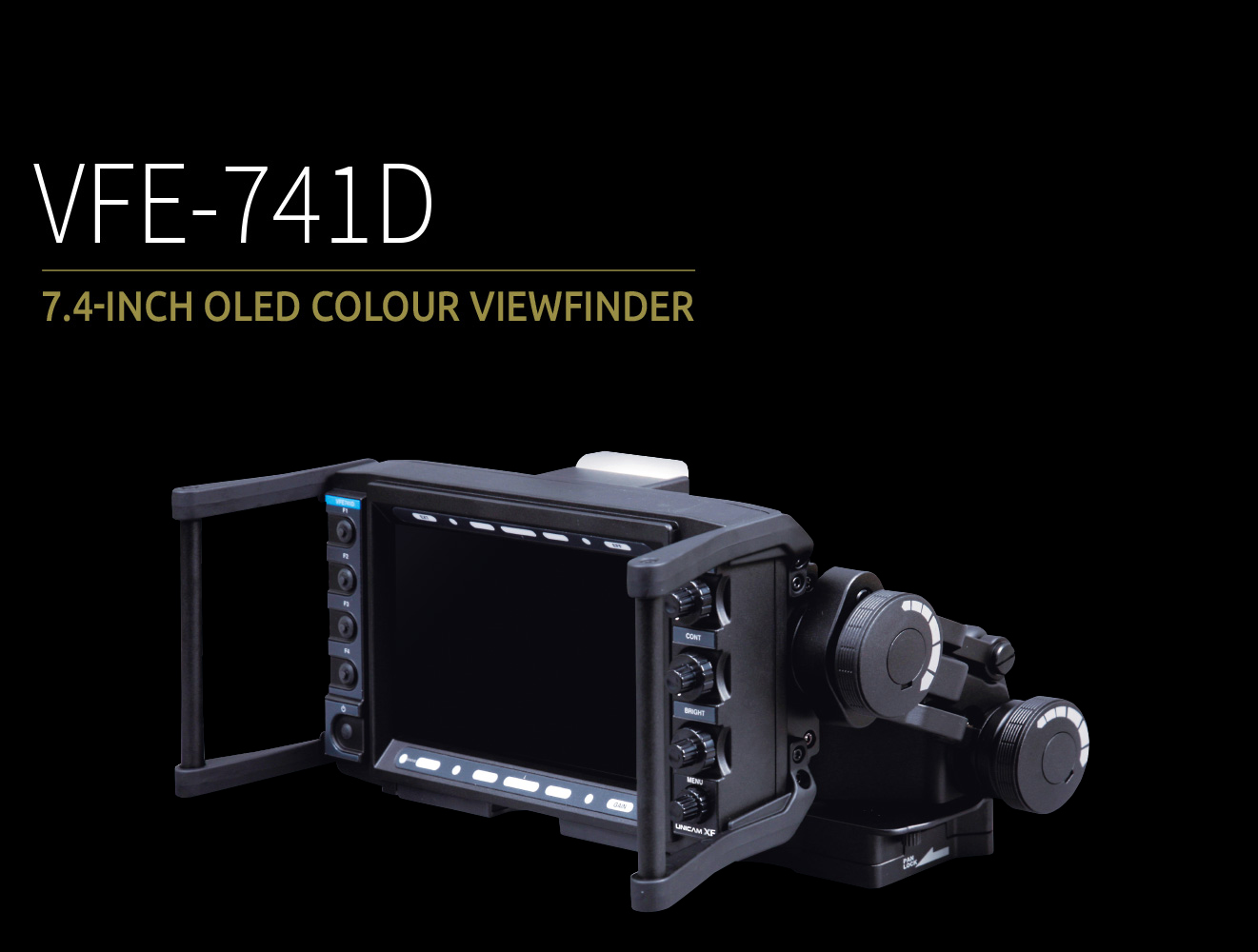

VFE741D
RATINGS


The VFE741D is a OLED Viewfinder with digital I/F, employing a 7.4-inch QHD OLED Panel, achieving high resolution, high brightness, and high contrast. They apply the new Focus Assist function that supports accurate focusing in both 4K and HD modes. The digital interface allows access to the camera menu from the viewfinder. Picture-in-picture, WFM, and Vector scope functions are built into this viewfinder.

  • Digital I/F
  • Picture in Picture Display
  • Peaking Function
  • Camera No. Display TALLY (Option)
  • Y TALLY
  • Various Marker Functions
  • Shadow Function
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



up

RATINGS / PERFORMANCE VFE741D
Power Supply DC12 V (DC + 10.5 V to + 18 V) 20 W
Ambient Humidity 20 % to 85 % (non-condensing)
Dimensions / Weight W 235 x H 143.5 x D 76.5 mm - Approx. 1.6 kg (VF body + cable)
Input Signals 3G & 1.5G HD-SDI BNC x1 - 75 Ω
Screen 164.160 mm×92.340 mm OLED H 960 x V 540
Screen Brightness 350 cd/m² or more
Colour 1.07 Billion (RGB 10 bit/ea)
Contrast Ratio 100000:1 (typical)
