VFL701D
RATINGS

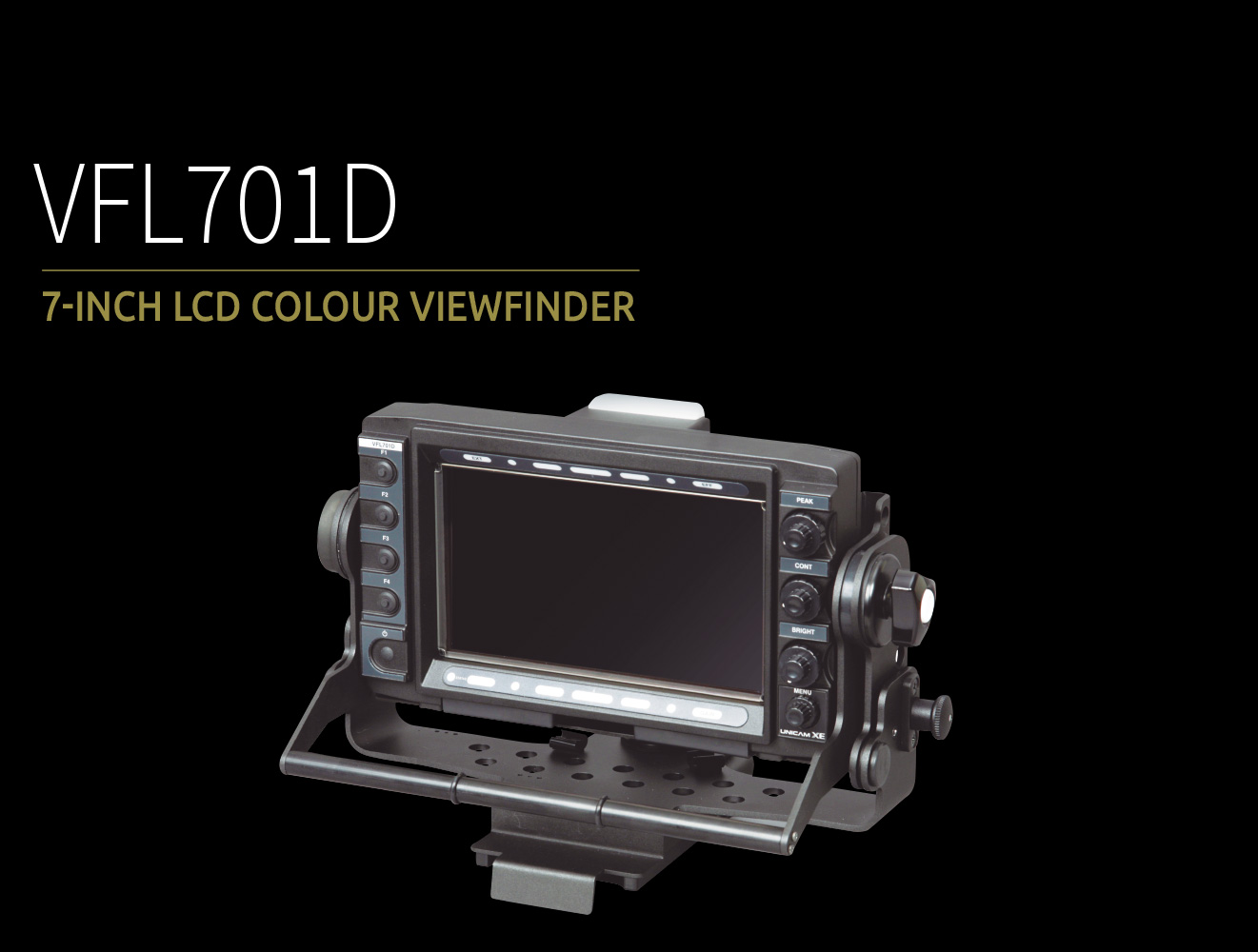

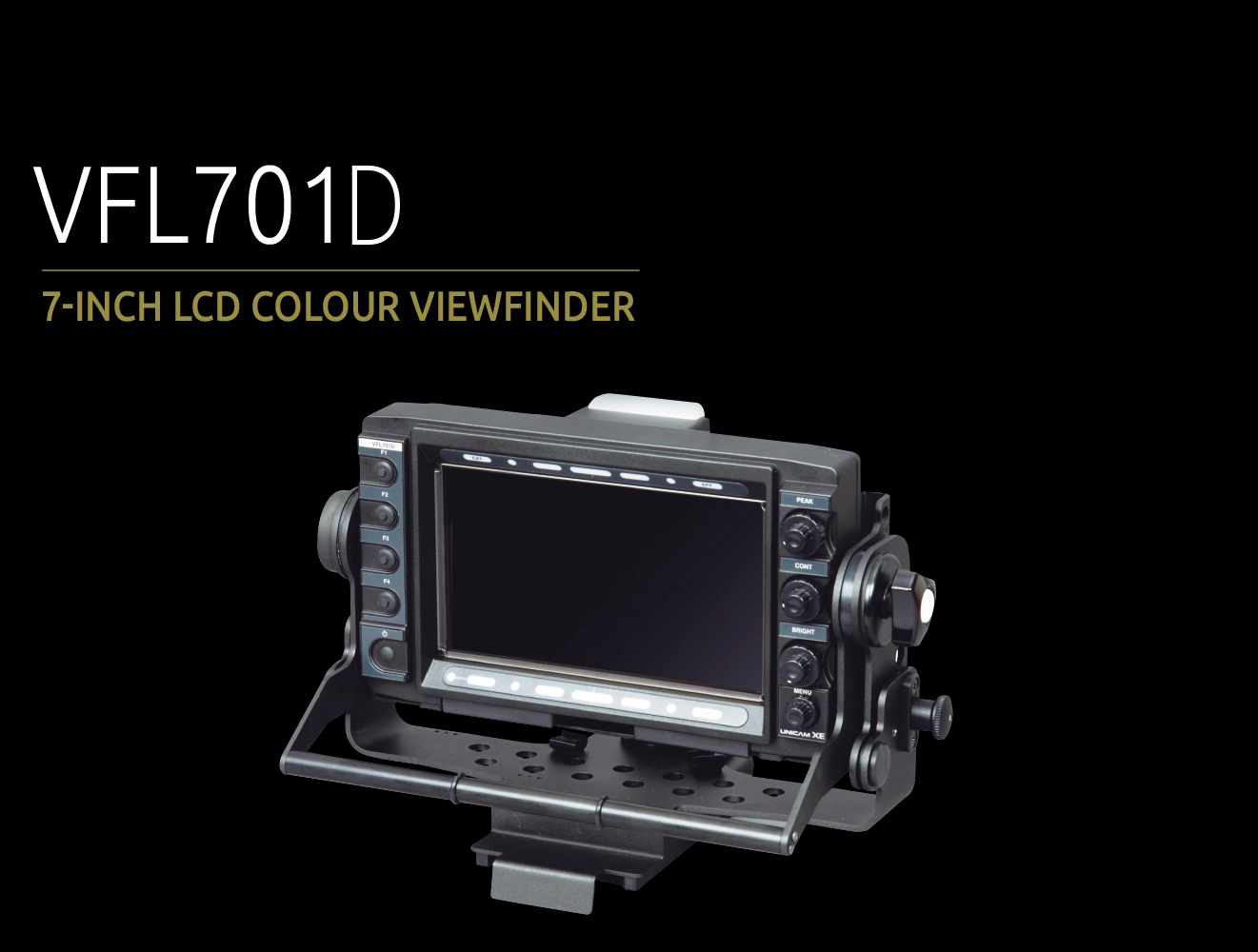

The VFL701D is 7-inch Multi-Format LCD Viewfinder with digital I/F. It features compact, light weight and low power consumption design.It employs 7-inch FHD LCD Panel, achieving wide viewing angle. They apply the new Focus Assist function that supports accurate focusing in both 4K and HD modes. The digital interface allows access to the camera menu from theviewfinder. Picture-in-picture, WFM, and Vector scope functions are built into this viewfinder.

  • Digital I/F
  • Picture in Picture Display
  • Peaking Function
  • Camera No. Display TALLY (Option)
  • Y TALLY
  • Various Marker Functions
  • Shadow Function
  • Full HD resolution
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



up

RATINGS / PERFORMANCE VFL701D
Power Supply DC12 V (DC +10.5 V to +18 V)
Ambient Humidity 20 % to 85 % (non-condensing)
Dimensions / Weight W 235 x H 143.5 x D 76.5 mm - Approx. 1.5 kg (VF body + cable)
Input Signals 3G & 1.5 HD-SDI BNC x1 - 75 Ω
Screen 155.52mm×87.48mm LCD H 1920 x V 1080
Screen Brightness 400 cd /m² or more
Colour 16.77 Million (RGB 8 bit /ea)
Contrast Ratio 1000:1 (typical)
Angle of Visibility Vertical 180° and horizontal 180°
