FA-300
RATINGS

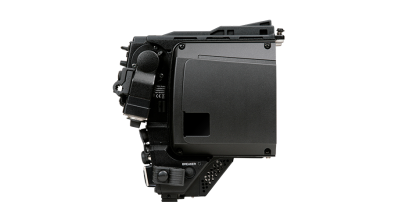

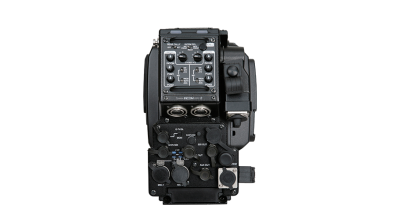

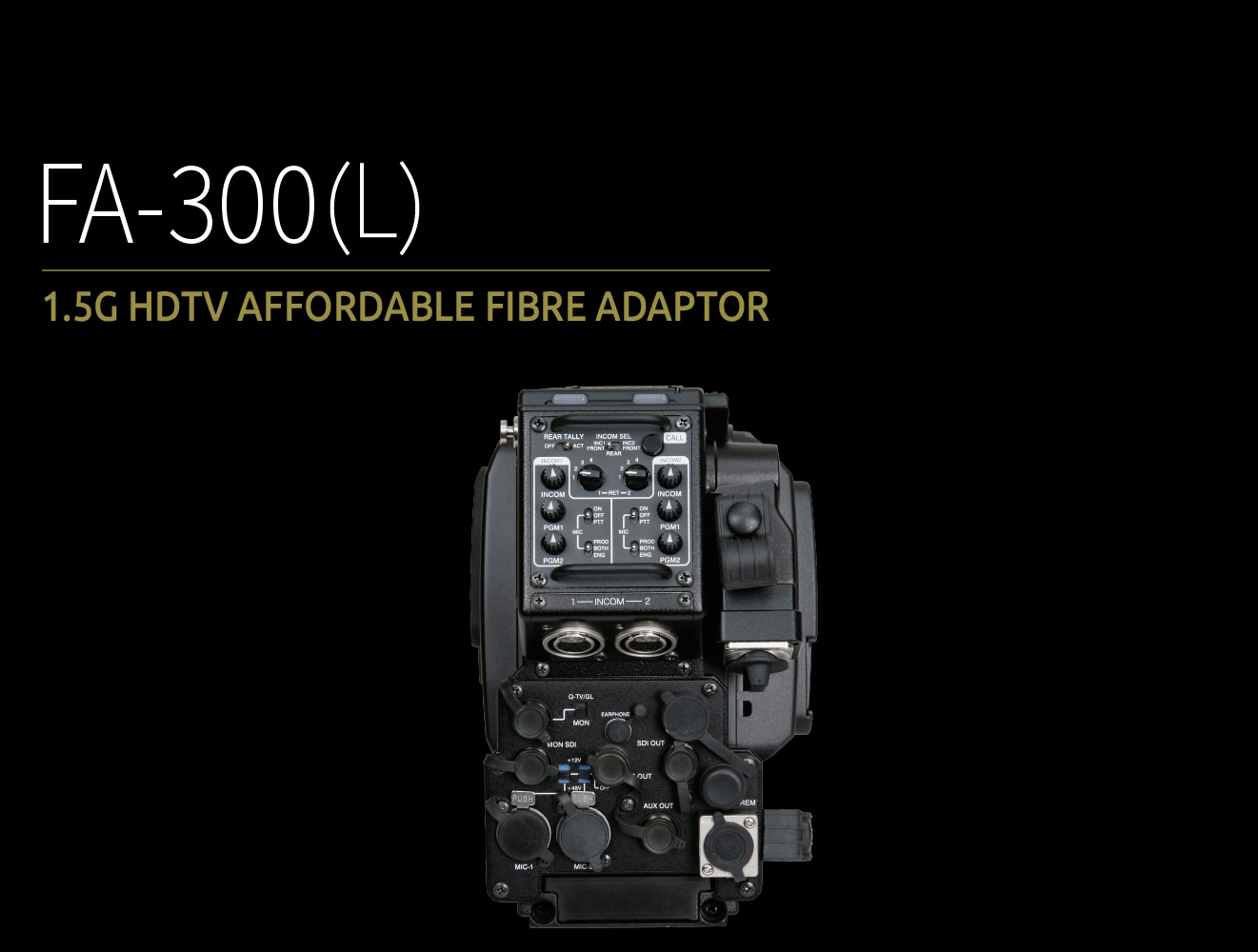

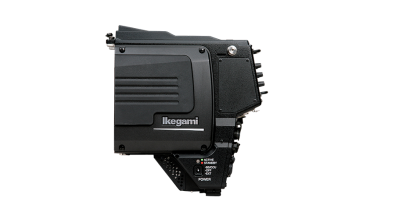

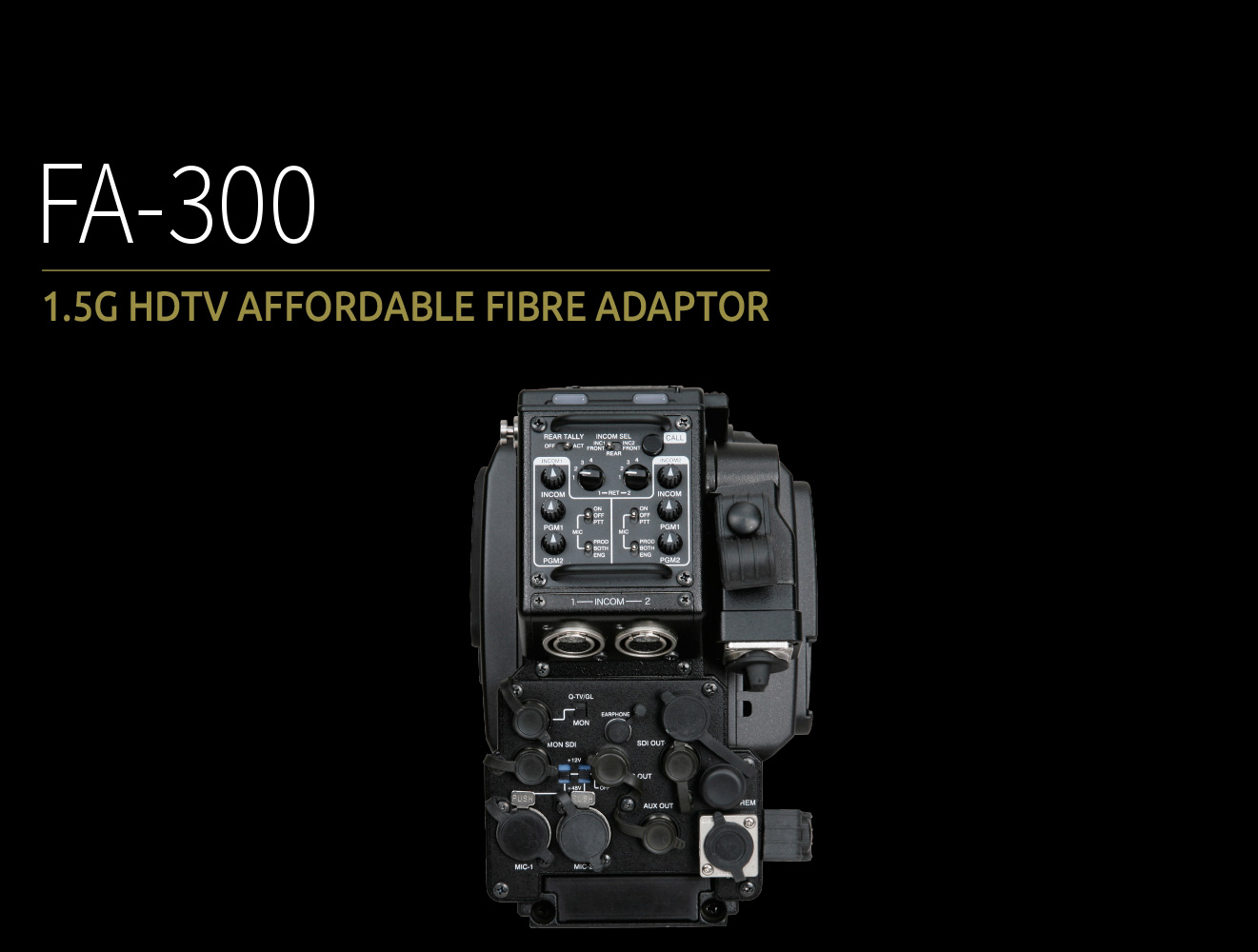

Cost-effective Fiber Adaptor for UNICAM-HD camera series (for 1080i or 720P frame rates) with a limited cable extension.

To be connected to BSF-300 camera control unit.

FA-300 and BSF-300 are equipped with Neutrik optical CON DUO connectors.

FA-300L and BSF-300L are equipped with SMPTE (LEMO) connectors.



You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form




RELATED ITEMS


up

RATINGS / PERFORMANCE FA-300
Transmission Interface Neutrik optical CON DUO, maximum distance 250 m
Output Format HDTV 1080 i 50 / 59.94 YPbPr 4:2:2 / 720 p 50 / 59.94 YPbPr 4:2:2
Output Format SDTV 576 i 50 YPbPr 4:2:2 & 480 i 59.94 YPbPr 4:2:2
Input Signal External Sync SYNC 0.6Vp-p ±6 dB 75 Ω BNC type 1 ch
Input Signal Audio -60 dB to +4 dB (variable) / -20dB (fixed) XLR type 2 ch
(600 Ω balanced)
Input Signal Intercom XLR type or 110 type 2 ch
Output Signal HD-SDI BNC type 1 ch
Output Signal AUX-Out VBS signal, BNC type 1 ch
(QTV-1 or Main video selectable by menu)
Output Signal Monitor Video HD-SDI, BNC type 1 ch
(VF, RET or Main video selectable by menu)
Output Signal DC-Out +12 VDC 500 mA (max.), 4-pin type 1 ch
