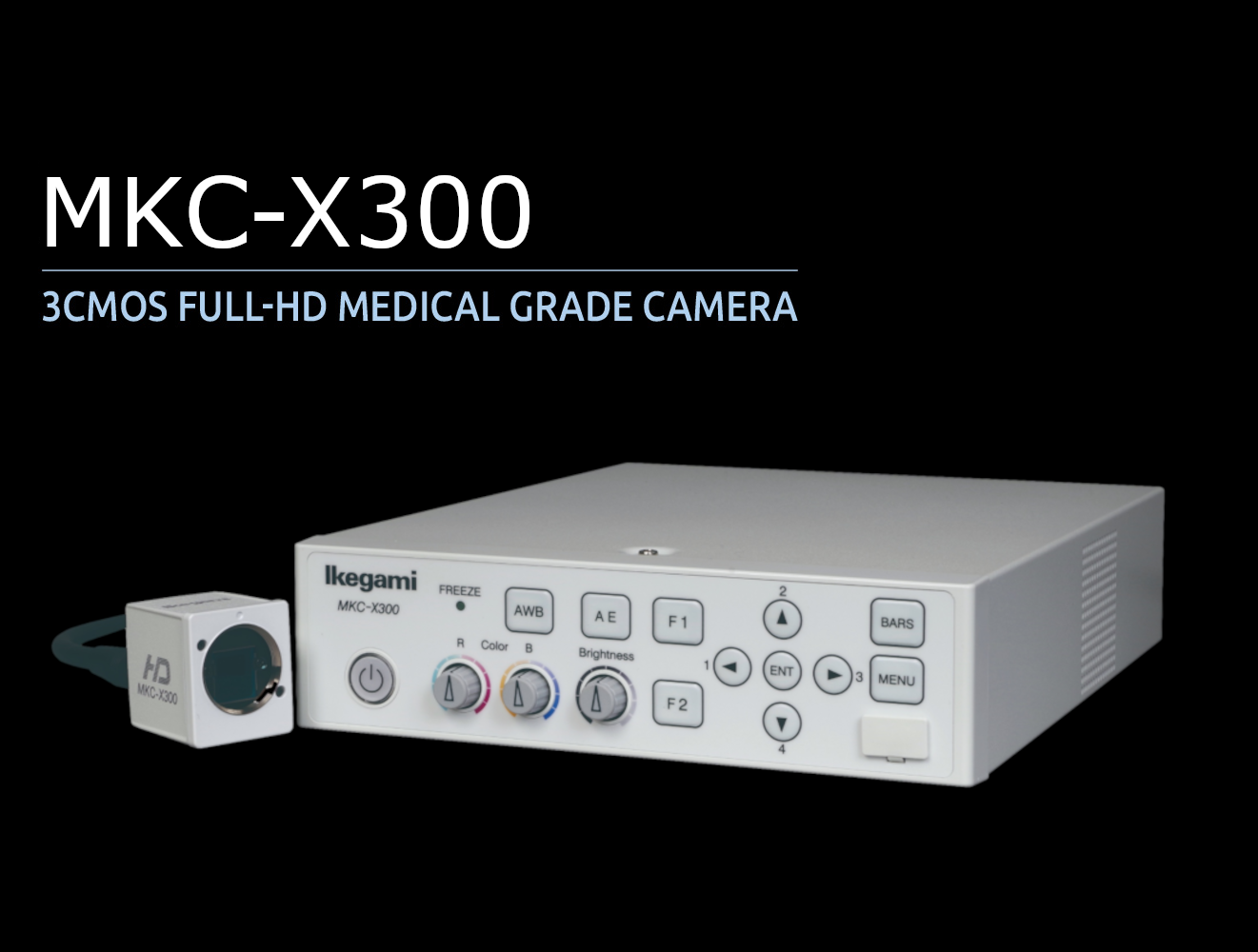

The MKC-X300 employs 3 x 2.1Megapixel Full-HD 1/2.8-inch CMOS Sensor to provide 1000 lines of high definition video images through 3G-SDI output interface, coupled with High Sensitivity performance of F18/2000 lux providing the optimal video quality required for special applications.

  • 3 Chip CMOS progressive Image Sensor
  • 1/2.8-inch Full-HD (1920x1080)
  • FPGA based
  • High Resolution: Horizontal 1000 TV Lines, S/N 63dB
  • High Sensitivity: F13 at 2000lx up to F26 at 2000lx (Line Mix, Pixel Mix ON)
  • Ultra Compact Camera Head: W34xH40D40mm
  • Digital output: 3G HD-SDI 1080P 2 ch
  • OEM Possibility
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
Contact Form

Scanning System 1920 x 1080 50 / 59.94 Progressive
Image Sensor 1/2.8-inch 3 CMOS
Lens Mount C-mount
Limiting Resolution 1000 TV Lines
Sensitivity F13 at 2000lx
F26 at 2000lx (Line Mix, Pixel Mix ON)
S/N Ratio 63 dB
Output Signal HDTV 3G-SDI x2 (1920 x 1080 i / p)
HDMI (1920 x 1080 i / p)
Genlock BNC 1 ch, Sync Output BNC 1 ch
Camera Cable 5 m or 7 m single (selectable depending on the Compositing)
DC Iris Control Available (from CCU)
External Control RS-232C 1 ch
Operating Temperature 0° C to +40 ° C
Weight Camera Head: 100 g; CCU: 2.0 kg or less
Dimensions Camera Head: W34 x H40 x D40 mm, CCU: W210 x H58 x D270 mm
Compliance with medical safety standards Compliance with medical safety standards:
This product is distributed in the EU as a medical product and complies with the relevant product safety standards (e.g. IEC 60601-1).
* For more information, please contact our European headquarters or your Ikegami distributor.
