Recording board
FUNCTIONS
RATINGS

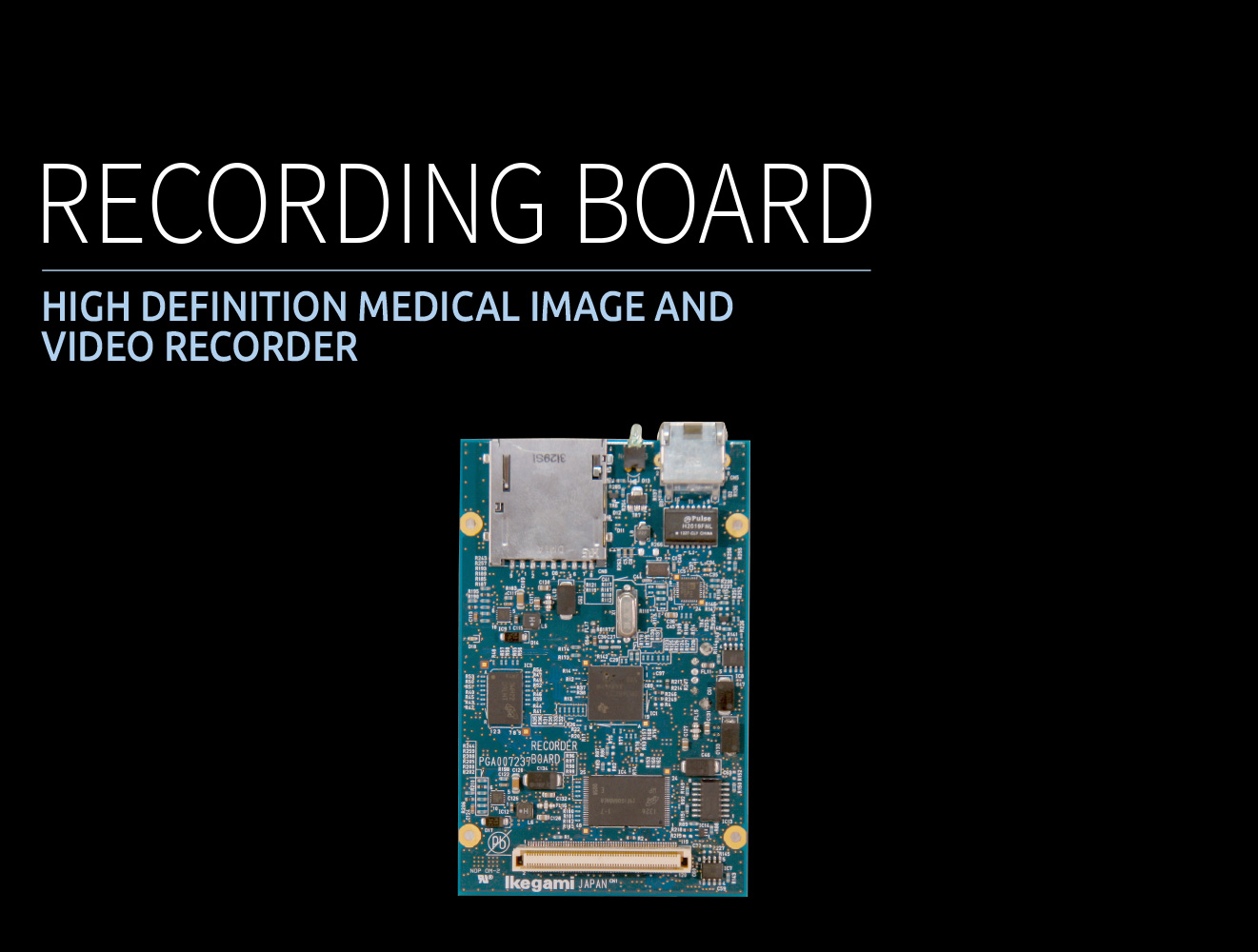

Ikegami has developed on optional recording board for the MKC medical camera series. This creates compressed digital video files. It is designed for use with MKC-X200 cameras.

  • Full HD 1920 x 1080 video and still image recording
  • FTP server function for downloading video file
  • Easy control from MKC camera series
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: medical@ikegami.de
Contact Form



up


FULL HD 1920 x 1080 VIDEO AND STILL IMAGE RECORDING

The board can record video and still images to USB memory, USB-HDD and SD card.



FTP SERVER FUNCTION FOR DOWNLOADING VIDEO FILE

Connect the unit to a network and download file.



EASY CONTROL FROM MKC CAMERA SERIES

The recording board can be operated via the OSD menu of MKC cameras. The recording board is ideal for existing MKC series users in medical fields.

up

RATINGS / PERFORMANCE RECORDING BOARD
Image Compression Video: H.264 HP, Bit rate max. 12 Mbps
Video input Image size 1920 x 1080i
Video input Frame rate 59.94 / 50Hz
Video input Image format (Y:Pb:Pr) 0 (4:2:2), YC 8 bit each
Recording Video File format AVI, maximum file size 1GB, for long time recording: divided at every 1GB
Recording Still image format JPEG
Recording Media USB Memory, USB hard disc, SD Card (SDHC) *Number of partitions: 1, Size: up to 128GB
Video playback Popular video player on the computer
Interface USB2.0 (Power supply SV, up to 500 mA is possible)
Protocol IPv4, TCP, UDP, FTP
Control Serial communication (UART) from the CCU board of the MKC camera
Supported cameras MKC-X200
Power supply DC 12V
Power consumption Approx. 2W (simple recorder only), approx. 4.5W (when the power is supplied through USB at the mex. level)
