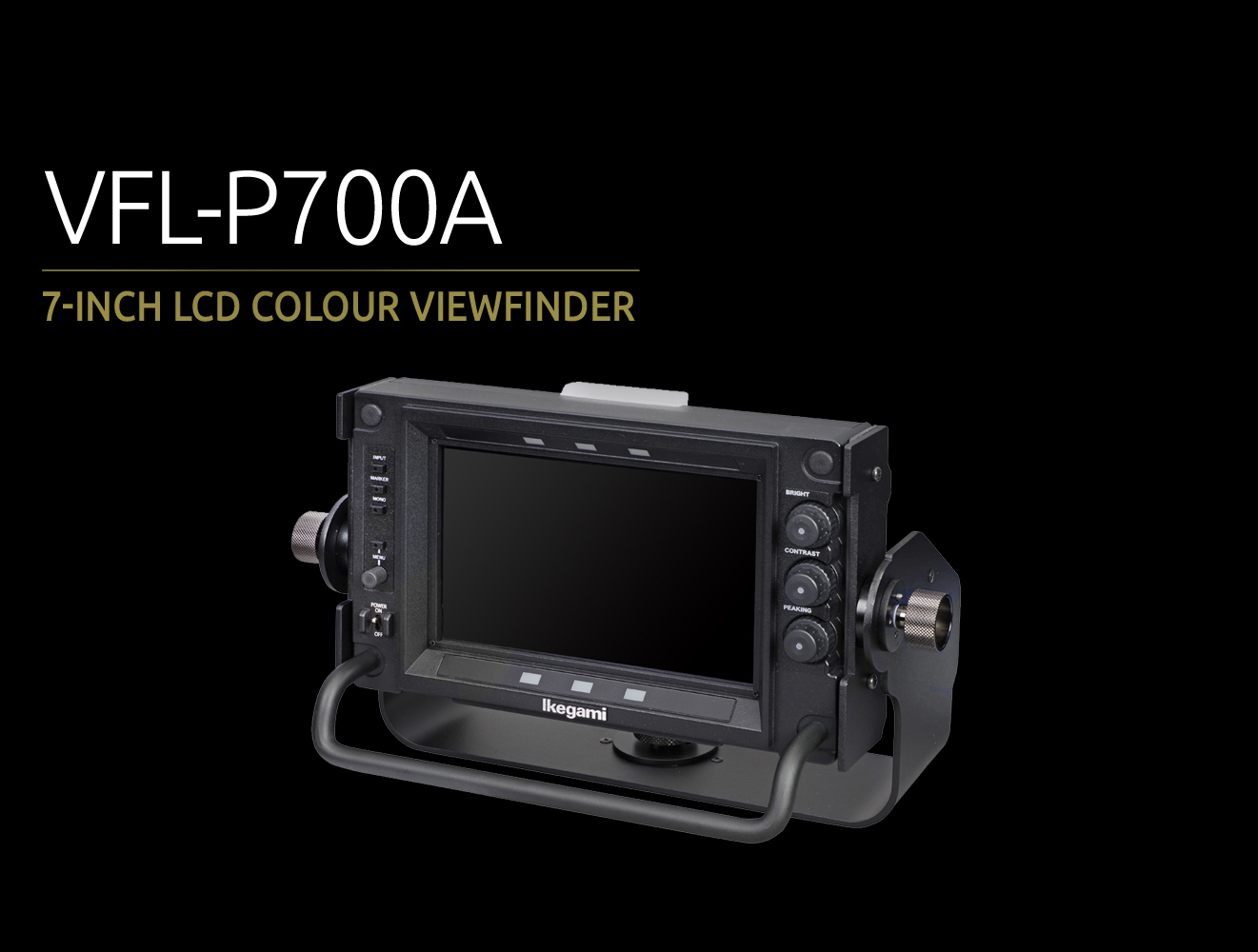

VFL-P700
RATINGS


VFL-P700A is a 7-inch native HD LCD viewfinder with an analogue interface. As such, it is compatible with UNICAM-HD camera models (HDK-73 and HDK-99). With the high performance LCD panel, the VFL-P700A is the ideal viewfinder for both indoor and outdoor operations.

  • 1920 x 1080 Native HD LCD Panel
  • Wide viewing angle
  • Multi-Format Support
  • Embedded Audio Level Meter
  • Vectroscope / Waveform Display
  • HDMI and 3G/HD-SDI input / output
  • Various Display Marker
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form




up

RATINGS / PERFORMANCE VFL-P700A
Power Supply 12V DC (10 to 16V DC)
Ambient Humidity 30% to 85% (non-condensing)
Dimensions / Weight W 232 x H 146 x D 47mm -Approx. 1.2 kg (body only)
Input Signals Camera Signal: Analog YPbPr 12Px1
External Signal: HDMI x1 / 3G/HD-SDI BNC x1
Tally Input TALLY IN 1: G/R - TALLY IN R
Screen 151x85mm LCD H 1920 x V 1080
Colour 16.7 Million
Angle of Visibility Vertical 170° and horizontal 170°
