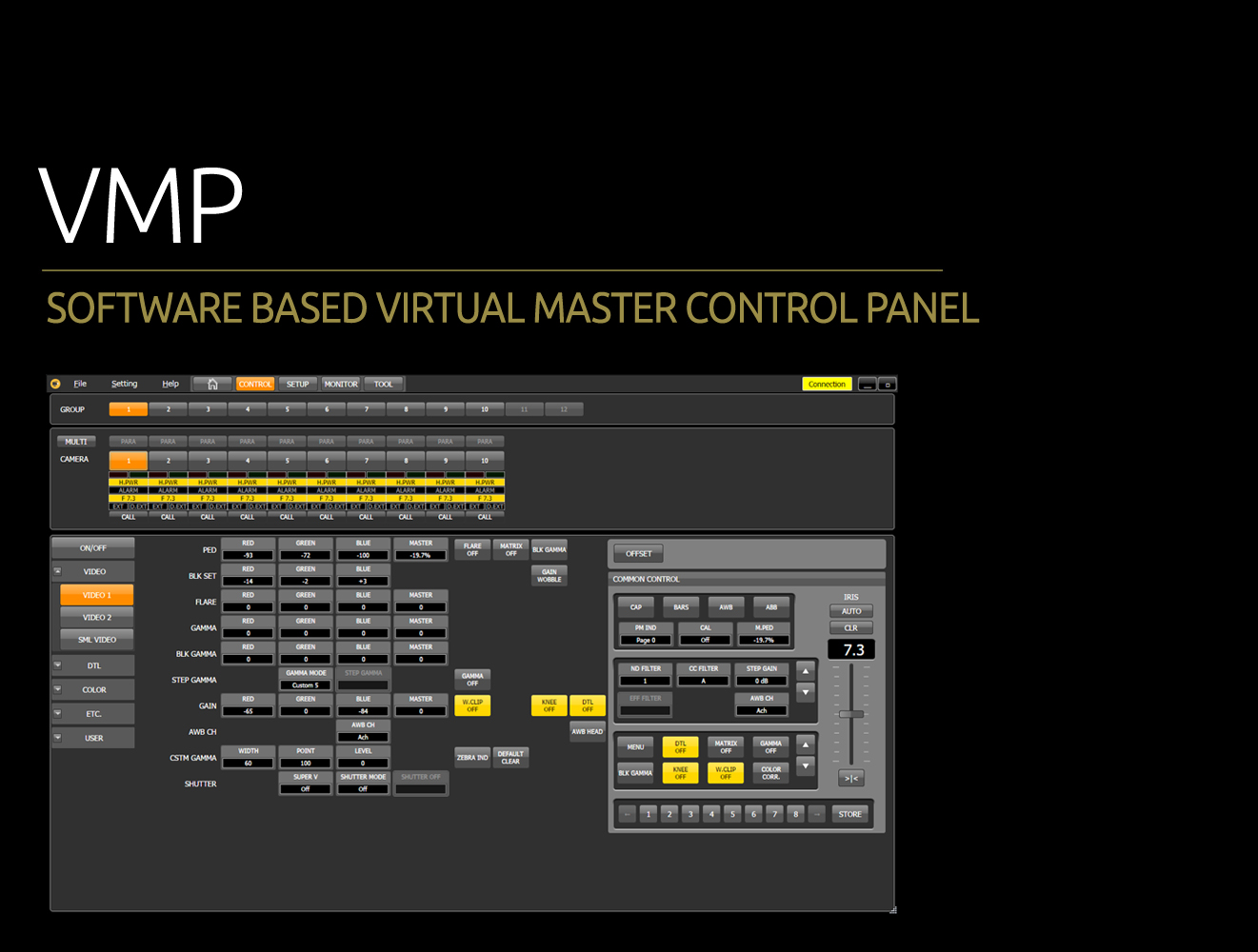

Ikegami's new software based Virtual Master Control Panel (VMP) is an application for control and maintenance of up to 100 cameras from a single Windows PC. It features the same scope of functions as Ikegami's MCP-300, including complete camera setup & control, file management & transfer, camera diagnostics and much more. Depending on the desired control depth and budget, different licences are available for purchase. It is possible to combine the VMP with our conventional OCPs and MCPs via a local network.

  • Software based Master Control Panel System for local ethernet networks
  • Complete control and maintenance of up to 100 total cameras from a single Windows PC
  • Customizable Home Screen for fast access of frequently used functions
  • Import, export and edit all camera related files remotely via a local network
  • Camera status and diagnostic screens for fast and reliable error correction
  • Matrix GUI for fast and easy Control Panel <-> CCU assignment
  • Multiple licences available for variable control depths and budgets
  • Combination of multiple VCPs, OCPs and MCPs is possible

Note: Ikegami's Unified Protocol Gateway is required for VMP operation

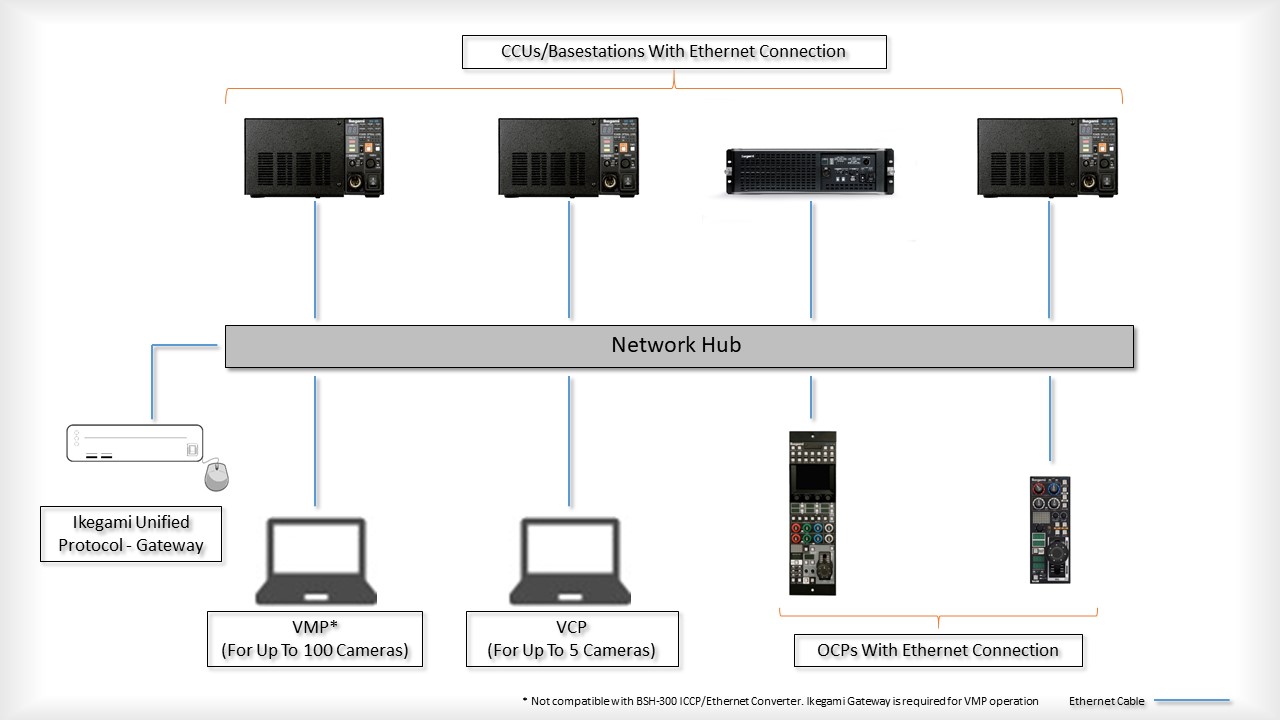

Connection Options

Control Assignment Configuration

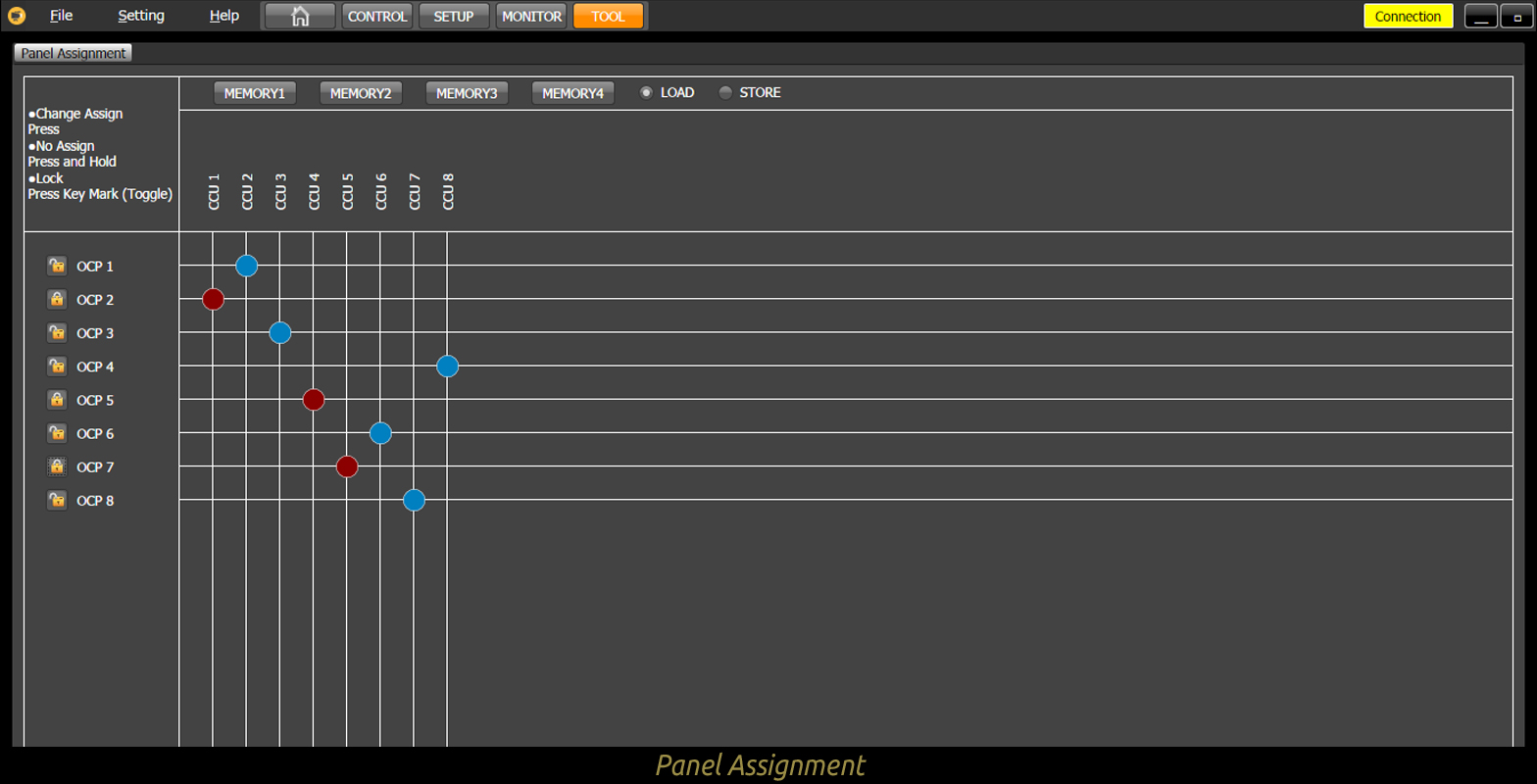

VMP Panel Assignment

You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form


OS Microsoft Windows 7 Professional SP1 (64 Bit/ 32 Bit)
Microsoft Windows 10 (64 Bit/ 32 Bit)
.NetFramework .Net Framework 4.6.2
Processor 1 GHz or faster 32-bit (x86) or 64-bit (x64) processor
Memory 1 GB RAM (32-bit) or 2 GB RAM (64-bit)
HDD 16GB available disk space (32-Bit) or 20GB (64-Bit)
Graphics DirectX9 graphics device with WDDM 1.0 or higher driver
Network 100Mbps or more
LAN Wired LAN only
Display 1366x768 resolution or higher (1920x1200 recommended)
