MLW-2150HD
FUNCTIONS
RATINGS

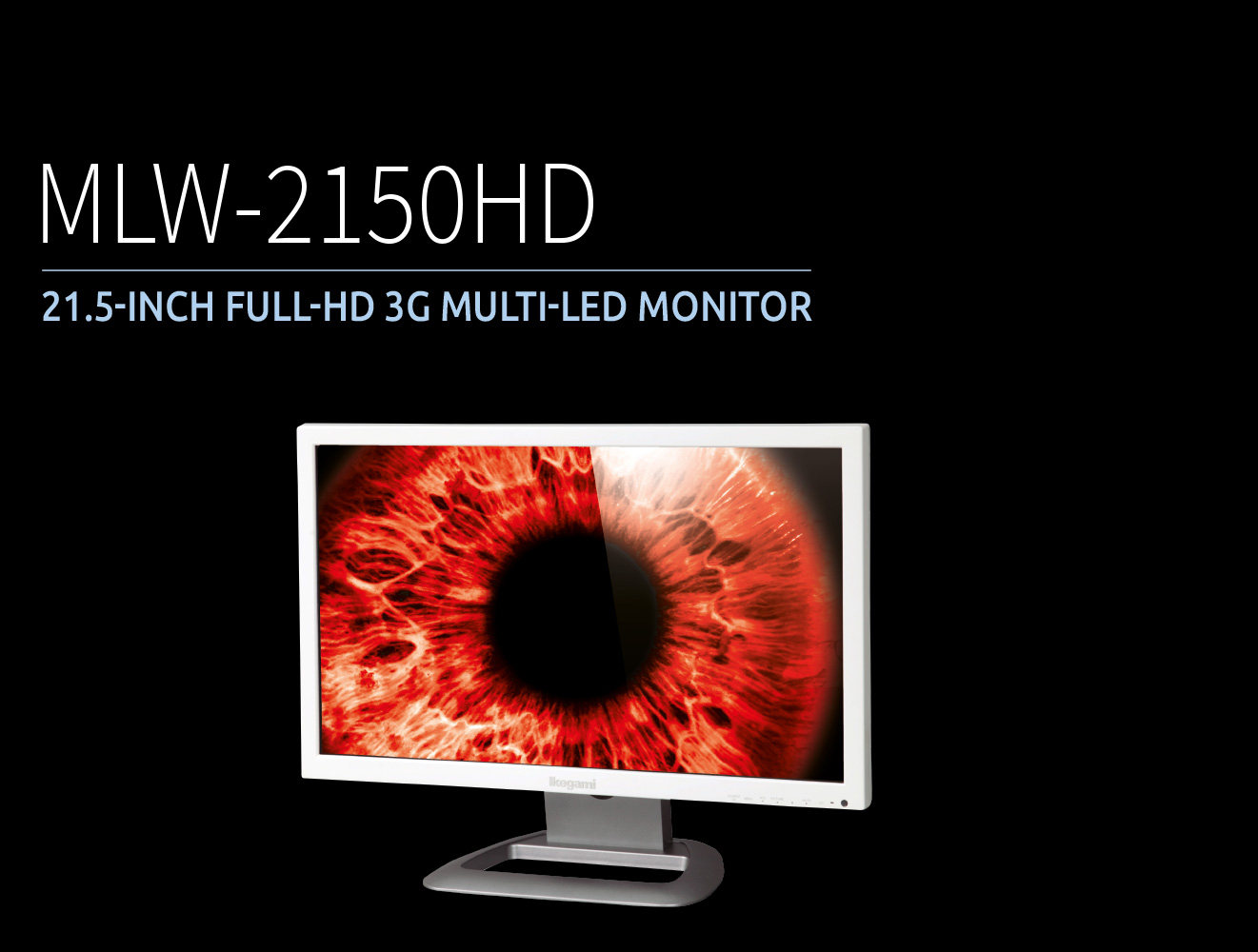

The MLW-2150HD is a medical grade Full -HD LED Monitor with 3G / HD-SDI and HDMI interface. MLW-2150HD is ideal for HD video monitoring or PC applications. With a VESA interface it can be easily racked, wall-mounted or used as a desktop.

  • Fully compliant with medical safety directives
  • 21.5-inch Full-HD 3G Multi-Format LED Monitor
  • High Resolution Display
  • Eco-Friendly LED Solution
  • 3D Comb-Filter & De-Interlace
  • Slim and lightweight Design
  • Multi-adjustable Desktop Stand
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: medical@ikegami.de
Contact Form



up


ALL INCLUSIVE

  • Desktop Stand
  • LED Backlight
  • All common video inputs
up

RATINGS / PERFORMANCE MLW-2150HD
LCD Diagonal Size 21.5-inch 476.64mm (H) x 268.11 mm (V)
Pixels 1920 (H) x 1080 (V) 16:9
Brightness 250 cd / m²
Contrast Ratio 1000 : 1
Viewing Angle (L / R) 170°
Input Video Signal 3G/HD-SDI 1ch (BNC incl. looping out)
Input Video Signal DVI 1ch (DVI-D)
Input Video Signal Composite 1ch (DVI-D) *2nd input available as option: M-RGB3 Composite, Y/C 1ch (BNC, Y / C incl. looping out), NTSC / PAL
Input Video Signal Analogue Component 1ch (BNC incl. looping out), NTSC/PAL
Input Video Signal PC 1ch (D-Sub 15 pin), Analogue R, G, B, (VGA to WUXGA)
Video Process Engine 10 bit
Colour Gradinet 8bit x 3 (16.7 Million colours)
Power Requirement AC adaptor AC 100 V - 120 V, 200 - 240 V ±10% 50 / 60 Hz
Weight Monitor Approx. 4.35 kg
Weight Desktop stand Approx. 1.15 kg
