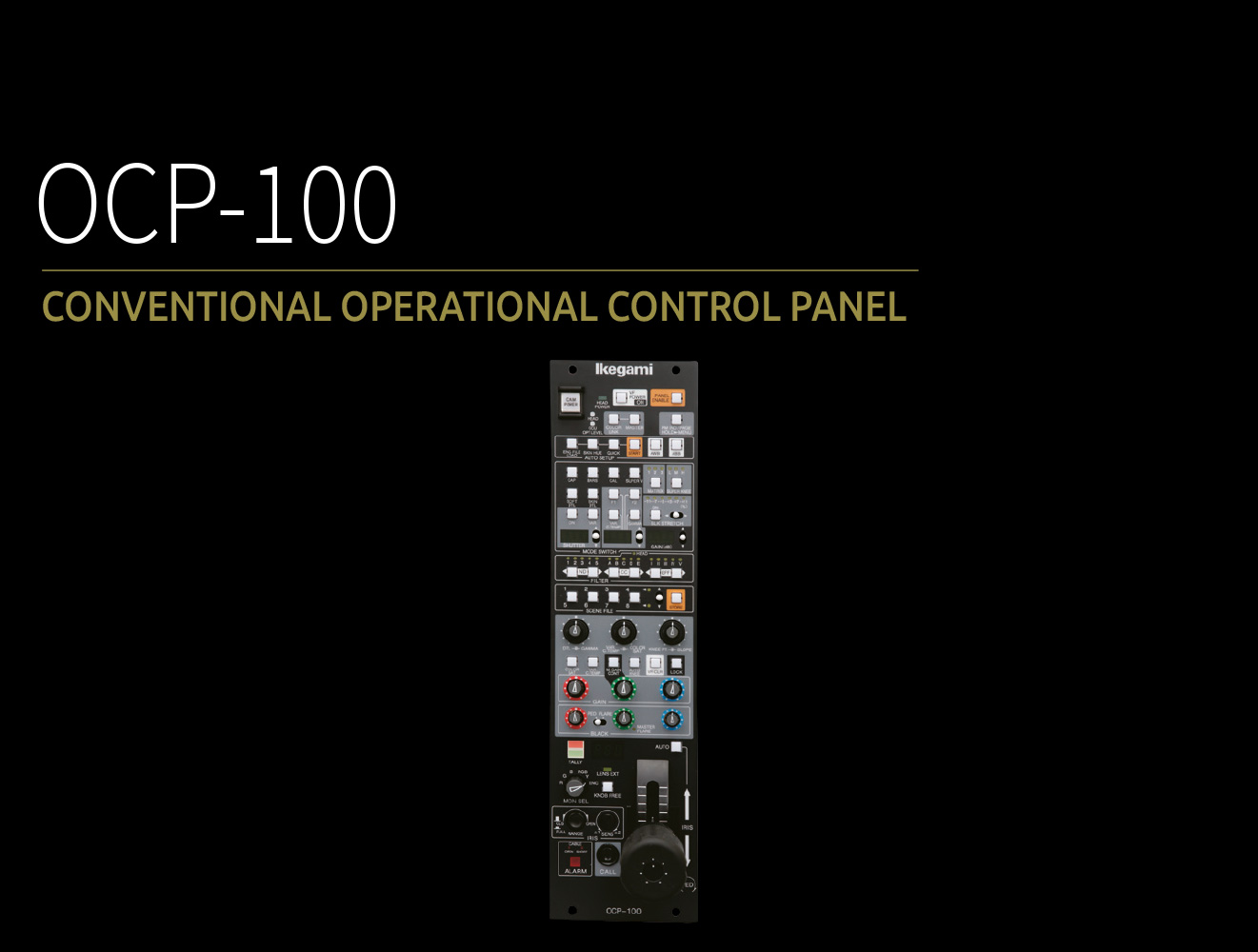

OCP-100
RATINGS

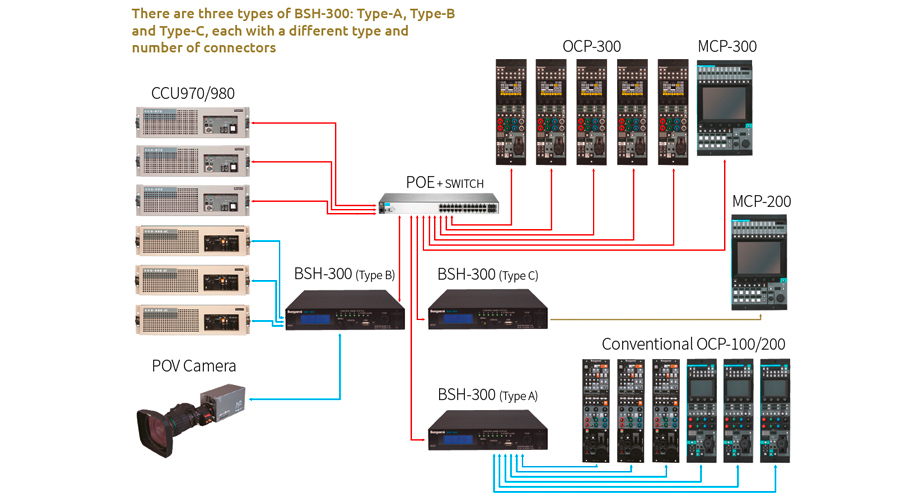

Affordable Operation Control Panel with assignable function buttons, using Ikegami's traditional serial data protocol (ICCP). The OCP-100 can be integrated into ethernet networks using the ICCP-Ethernet converter BSH-300.

  • Traditional Control Conception (ICCP)
  • Direct button Operation
  • Single Cable Connection with Power Supply
  • Assignable Function Buttons
  • New Functionality like variable Colour Temperature
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



up

RATINGS / PERFORMANCE OCP-100
Voltage DC +11 to +16 V rating DC +12 V
Wattage Approx. 3.2 W
Dimensions (WHD) 92.2 x 177.5 x 355.5 mm
Weight Approx. 2.1 kg
