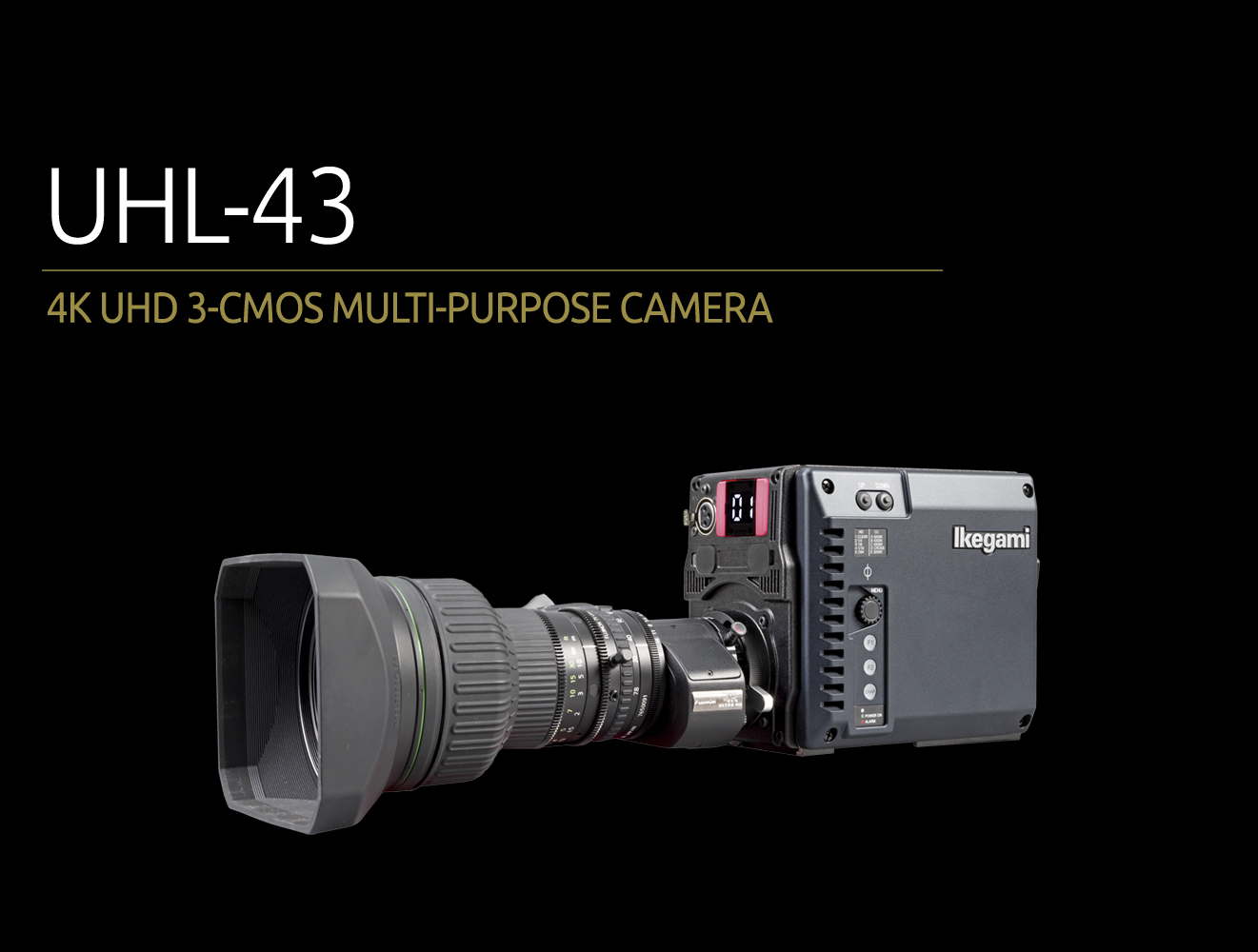

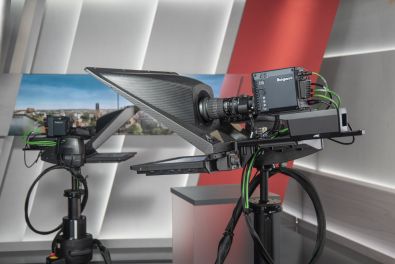

The UHL-43 is a one-piece Native 4K/UHD Digital Multi-Purpose Box Camera, employing 3-CMOS technology. Due to its compact one-piece form factor, it supports various POV applications such as steady cam & wireless productions, PTZ and other robotic operations, as well as a wide range of surveillance applications.

Two types of UHL-43 are available: UHL-43 as a native 4K/UHD camera and UHL-43HD, the same camera model but only providing HD resolution. UHL-43HD can be upgraded to a full-facility UHL-43 by adding a software key (optional), enabling an easy and budget-compliant transition to UHD productions. Various kinds of 4K main output including 12G-SDI, 3G-SDI Quad Link (option) and  12G Optical interface (option) realize flexible 4K system integration.

For production environments with extremely high temperatures, a heat resistance option includes upgraded cooling fans to deal with temperatures of up to 50°C.

  • UHL-43: True UHD Resolution with 3xCMOS 2/3-Inch 4K-native sensors
  • UHL-43HD: 1080i/P outputs only, UHD format by adding software license key (type: UHD-43)
  • HDR High Dynamic Range support (HLG, S-Log)
  • Wide Color Gamut (BT.2020)
  • Sensitivity of F11 @ 4K / 50 p
  • HD Output (HD-Downconversion / -Cutout selectable) as standard
  • 4K Output (Optional for UHL-43HD model)
  • 12G/3G/HD-SDI BNC Interface as standard
  • 3G-SDI Quad Link (option)
  • Optical Fibre Output (option)
  • ICCP/ISCP 8-Pin connector (option) for OCP connection via Ikegami's CPA-Cable
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



True UHD resolution with three 2/3-inch 4K-native CMOS sensors

The UHL-43 and UHL-43HD incorporate three 2/3-inch 8 megapixel CMOS sensors, each capable of capturing 4K-native 3840 x 2160 resolution images, offering high sensitivity (F11 in 4K/50p) and very high signal-to-noise ratio. Unlike cameras using a single chip or pixel-offset technology, the three 4K-native CMOS sensors and prism optics provide real UHD resolution, superior color reproduction and no color aliasing.

*Licence upgrade needed to output native 4K signal from UHL-43HD

HDR High Dynamic Range

The camera provides an HLG (Hybrid Log Gamma) mode conforming to ITU-R BT.2100 which is an international standard for High Dynamic Range. HDR enables the UHL-43 to deliver superbly detailed picture quality across the full range of brightness levels from deep black to peak white. With it's wide color gamut, the camera also captures rich color.



HD output

The UHL-43 and UHL-43HD can deliver HD/3G-SDI signals for main output as a standard feature.

With UHL-43, camera operators can choose between a down-converted full-frame image or an HD cut-out frame from any section of the 4K original. *3G-SDI Quad Link output is option.




4K Licence Upgrade for UHL-43HD

By purchsing a permanent licence key (Option: UHD-43), the UHL-43HD unfolds its' full potential and delivers a native 3840x2160 resolution UHD image with crystal clear details, overwhelming dynamic range and realistically saturated colors.




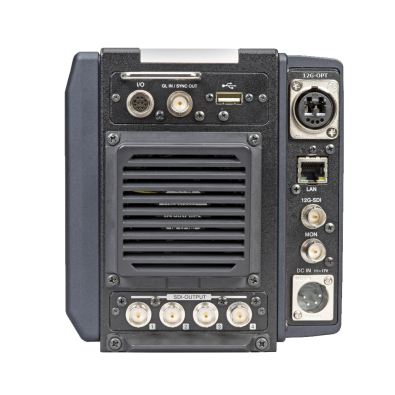

Various Interfaces

The camera has been designed to feature a 12G-SDI output interface as standard, as well as optionally available solutions like 3G Quad Link or Optical Fibre. This ensures flexible support for future trends in 4K system integration.

Image Sensor Three 2/3-inch 4K-native CMOS sensors, 8M pixel
Sensitivity F10 @ 4K 59.94p/HD 59.94i
F11 @ 4K 50p/ HD 50i
Optical System 2/3-inch, R,G,B prism
Lens Mount 2/3-inch bayonet
Filter ND 1:CLEAR 2: 1/4 3: 1/8 4: 1/16 5: 1/64
CC A:3200K B:4300K C: 6300K D: CROSS
S/N Ratio 62 dB in HD mode (typical)
Limiting Resolution 2000 TVL (typical) @ 4K 59.94p (Option)
1000 TVL (typical) @ HD
Gain -6, -3, 0, +3, +6, +9, +12 dB
Gamma OFF, 0.35, 0.4, 0.45, HLG, Custom Gamma
Electrical Shutter 1/100, 1/120, 1/250, 1/500,1/1000, 1/2000
Operating Voltage DC +11 to +17 V XLR 4pin (x1)
Ambient Temperature Operation: -20°C to +45°C (-4°F to +113°F)
Storage: -20°C to +60°C (-3.9°F to +140°F)
Relative Humidity 30 % to 90 % (non-condensing)
Dimensions / Weight W 145 x H 155 x D 169 mm (excluding protrusions)
(W 5.7 x H 6.1 x D 6.7 inch), approximately 2.6 kg (5.8 lb)
4K/HD-SDI Main Output BNC CN x1 0.8 Vp-p 75 ohm
12G-SDI: SMPTE 2082 (Option)
3G-SDI: SMPTE 424/425 Level A/B

BNC CN x4 0.8 Vp-p 75 ohm (Option)
3G Quad Link 2 Sample Interleave division: SMPTE 424/425 Level A/B (Option)
3G-SDI: SMPTE 424/425 Level A/B
HD-SDI Monitor Output BNC CN x1 0.8 Vp-p 75 ohm
3G-SDI: SMPTE 424/425 Level A/B
Reference (Genlock)
Input / Output
BNC In/Out CN x1 0.8 Vp-p 75 ohm
Reference Input
HD: Tri-sync SMPTE 274M 0.6 Vp-p 75 ohm
SD: Black burst signal (NTSC: 0.286 Vp-p, 75 ohm PAL: 0.3 Vp-p, 75 ohm)
Reference Output
HD: Tri-sync SMPTE 274M 0.6 Vp-p 75 ohm
Lens HR10A-12pin x1, Compliant with BTA S-1005B standards
Remote Control Ethernet: 8P8C(RJ45) x1 *PoE Non-compliant
ICCP/ISCP: PROC05-8pin x1 (Option)
USB USB 2.0 Type-A 4pin x1
I/O HR10A-10 pin x1
DC Input XLR-4 pin
Analog Audio Input XLR-3 pin x1
Input LevelStep: -60, -50, -40, -30, -20, -10, 0, +4 dBu
Variable: ±10 dBu
Power Supply: OFF/+48 V
