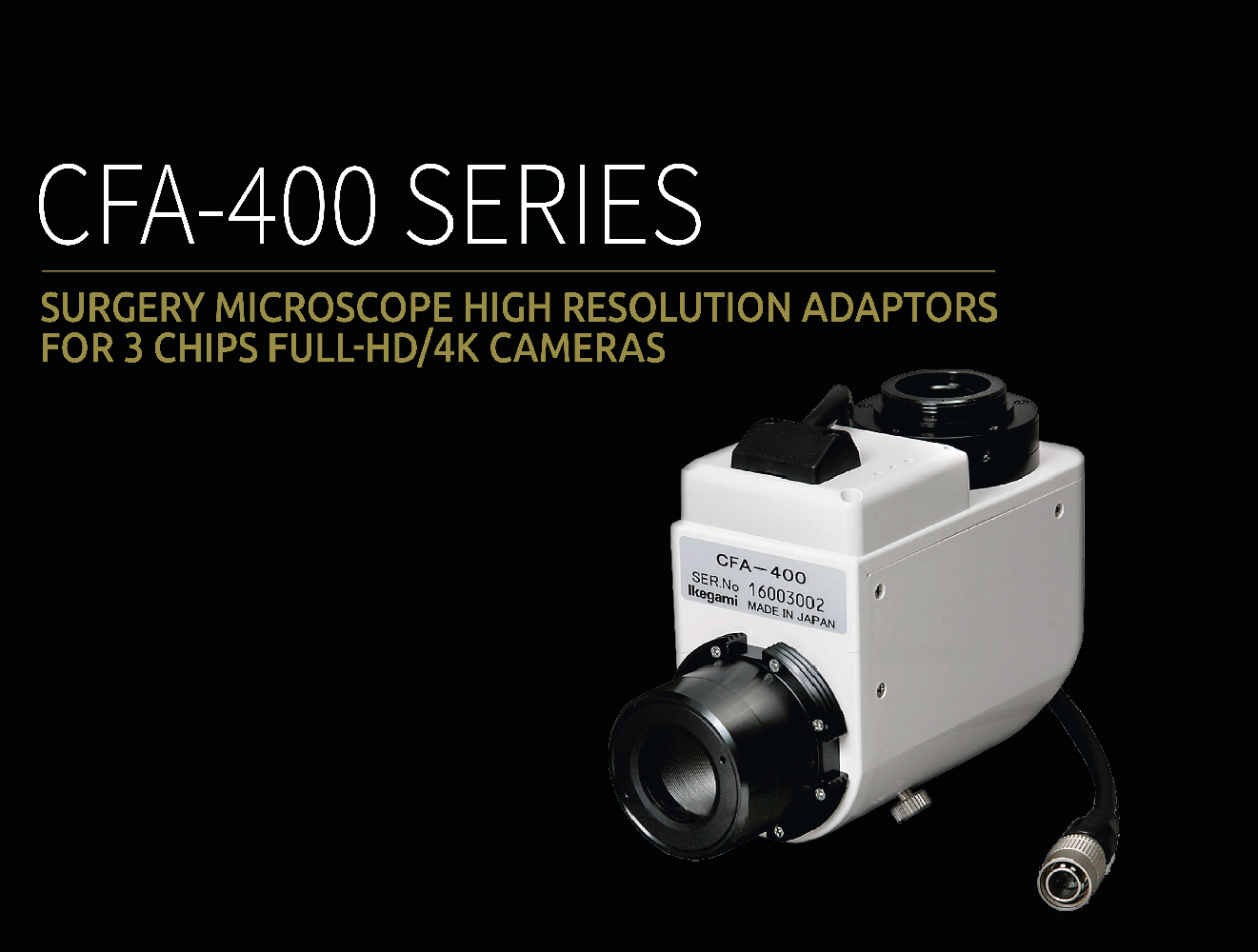

CFA-400R SERIES
RATINGS


Ikegami has developed new surgery microscope adaptors, CFA-400 series, for 3 chips Full HD (High Definition) and 4K cameras with the higher optical resolution. They equip the optical auto iris function and perform the deeper focus depth with Ikegami MKC camera series.

  • Higher resolution of the optical lens even for 4K cameras
  • The new optical design is developed for the brighter optics
  • The optical iris can be adjusted automatically - contribute to perform deeper focal length
  • Deeper Focal Depth
  • Dedicated Design for 3 Chips Cameras

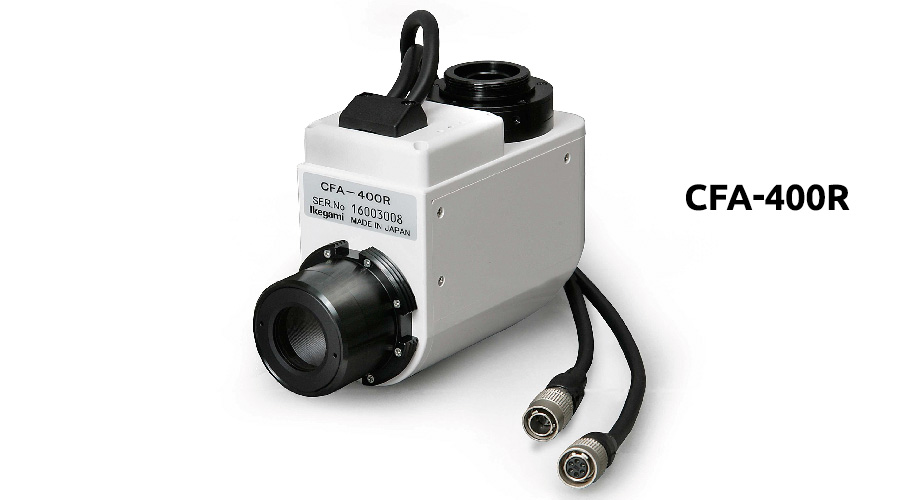

  • The remote controller can easily control the focus adjustment even during the surgery (CFA400R/CFA-400RIR)
  • One pushing button on the remote controller can automatically switch the integrated filter to move to ICG mode with Ikegami MKC cameras (CFA-400RIR)

You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: medical@ikegami.de
Contact Form



up

RATINGS / PERFORMANCE CFA-SERIES
Camera sensor 1/3-inch recommended
Lens Mount C-mount
Focal length Fixed, 53 mm
Iris Power DC 12 V ± 10 %; less than 120 mA
Focus Remote Focus (CFA-400R, CFA-400RIR)

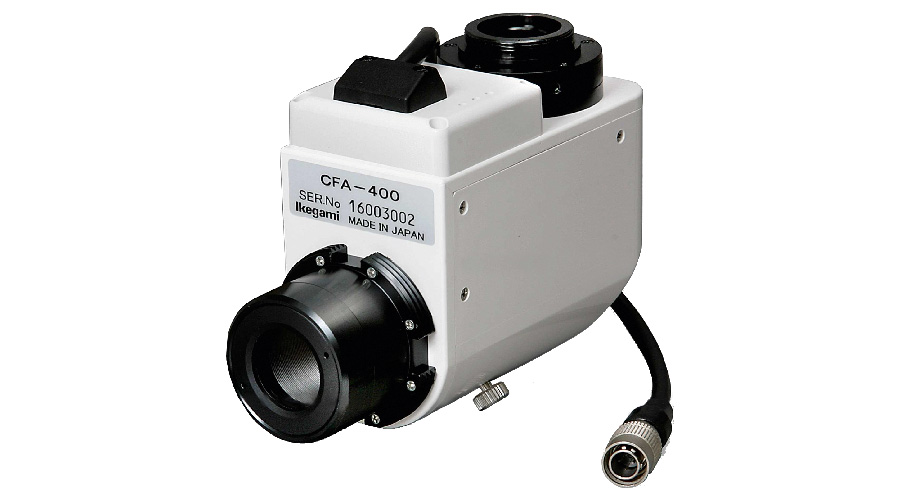

Manual Focus (CFA-400)
X-Y Axis Adjustment Available
Filter Change One push automatic (CFA-400RIR)
N/A (CFA-400R, CFA 400)
Size 113.5 x 79 x 45 mm
Weight 450 g or less
