HQLM-1720WR
FUNCTIONS
RATINGS

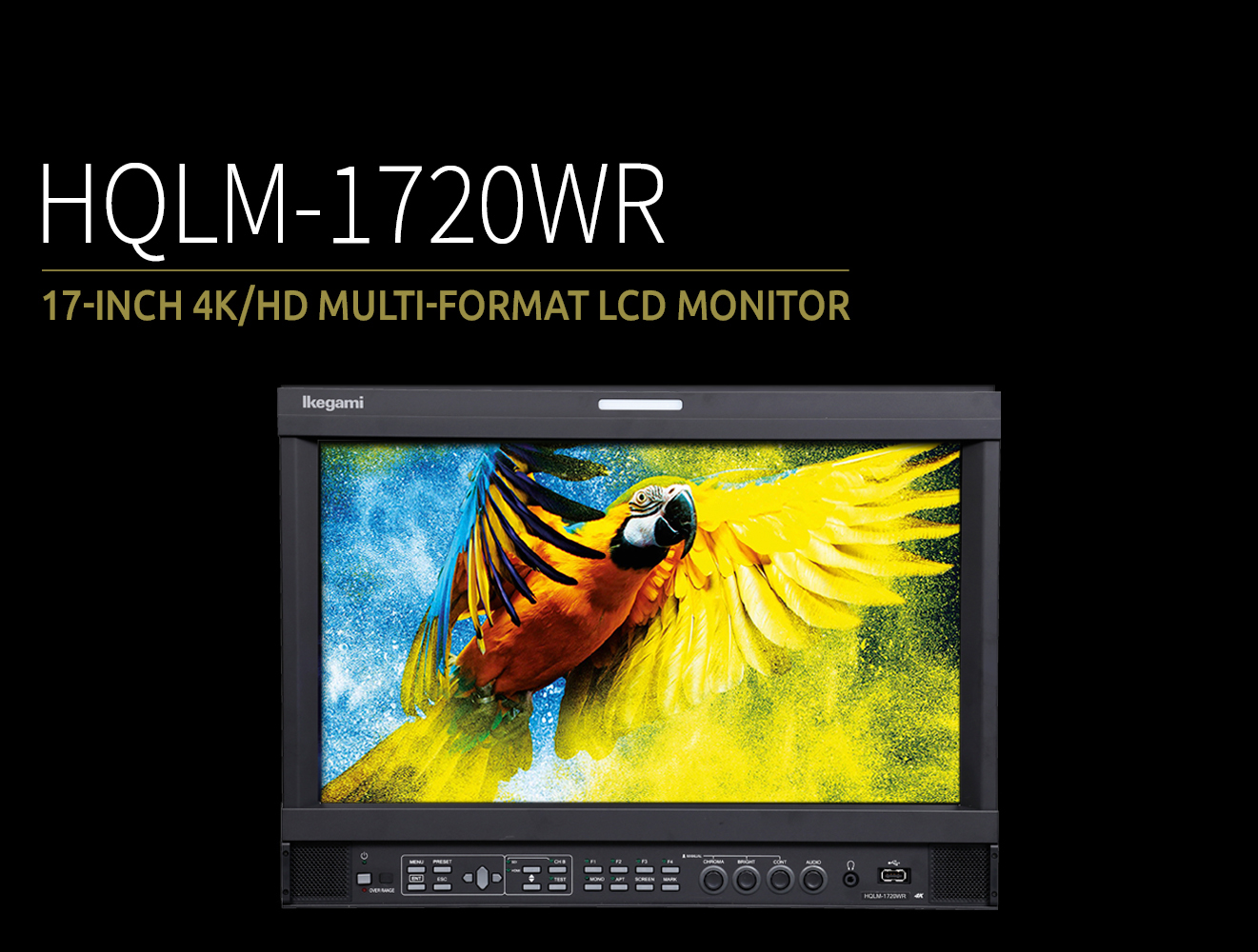

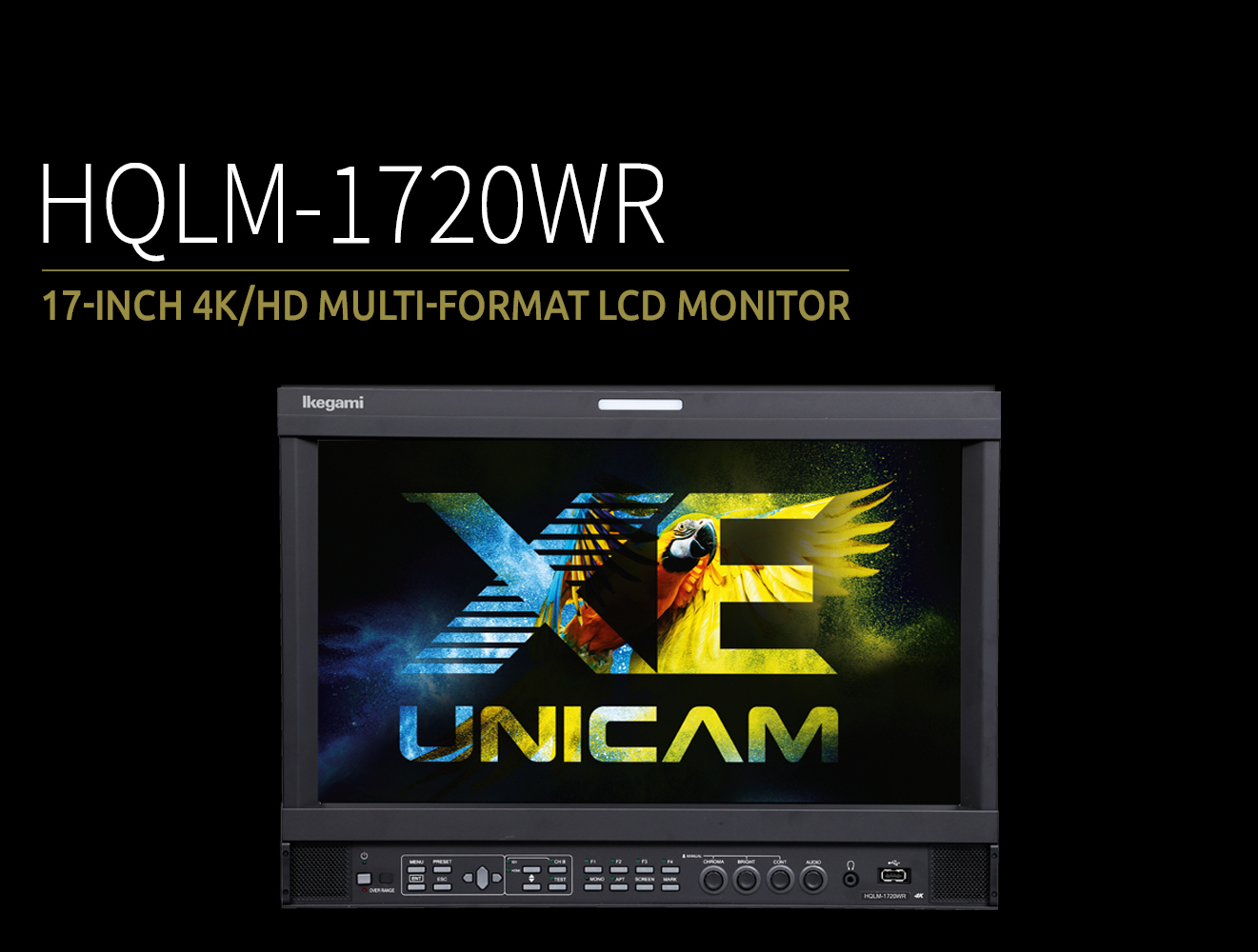

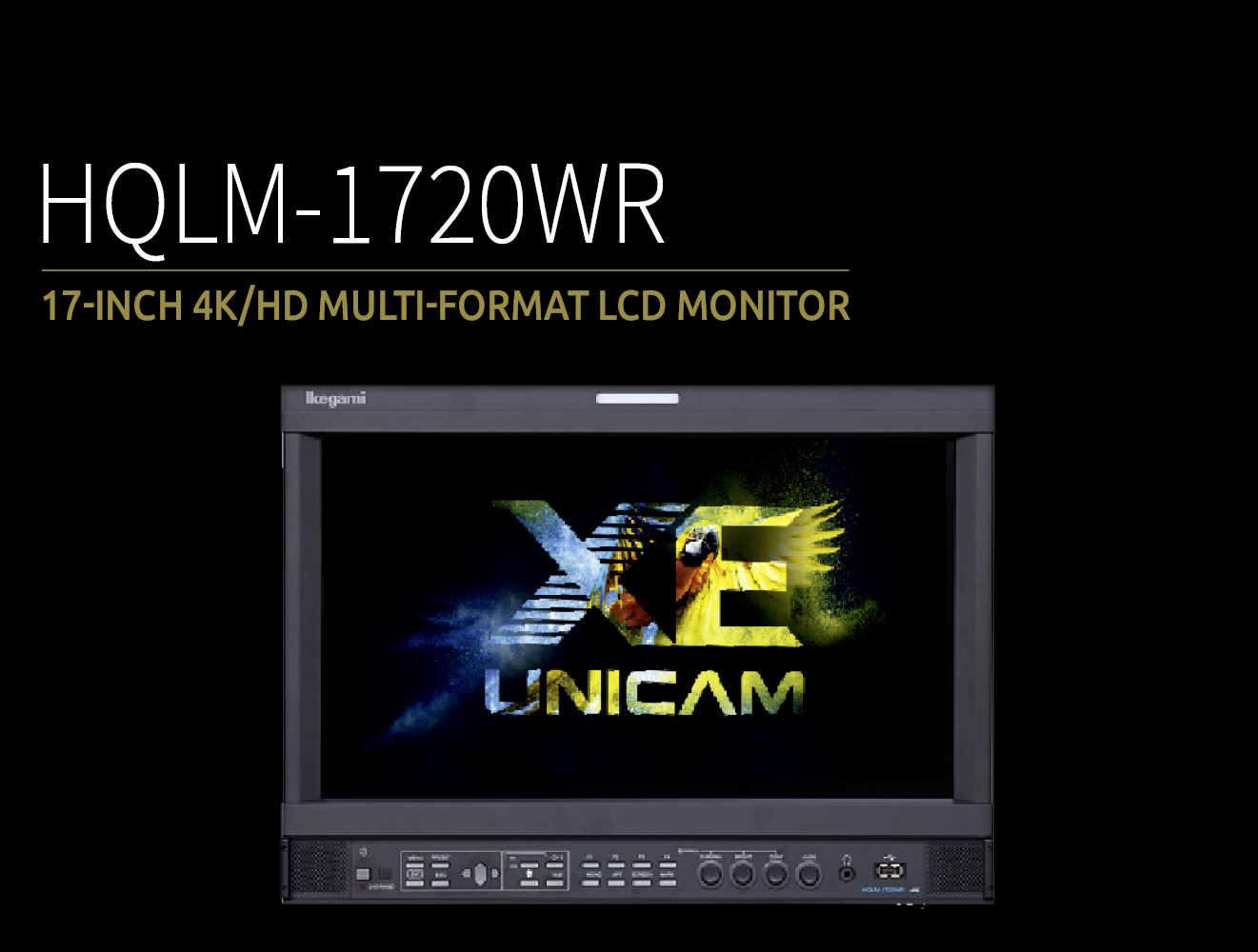

The 4K HDR video monitor HQLM-1720WR is equipped with 2 channels of 12G-SDI input/output as standard for efficient configuration with 4K equipment such as cameras and switchers. In addition, this monitor includes 3G-SDI, HD-SDI and HDMI inputs/outputs as standard. It has the flexibility to work with various interfaces in the image production field. By employing a 16.5-inch 3840×2160 pixel UHD LCD panel using LED backlight, it can reproduce high resolution 4K and 2K images.

Convenient features such as Multi-Viewer-Screen, Side-By-Side Video, Audio Meters, User Markers and R/G/Y Tally make the Ikegami HQLM monitor series the ideal companion for broadcast productions.

Supporting various EOTF tables (HLG, PQ, S-Log,…) and Wide Colour Gamut BT.2020 as well as conventional BT.709, the HQLM-1720WR can be used as a compact solution for UHD and HD productions.

  • Diverse Input Signal Formats
  • UHD LCD Panel
  • Faithful Color Reproduction
  • 12G-SDI and 3G-SDI In-/Outputs
  • Compatibility with embedded audio Built-in Marker Function
  • User Marker Display Function
  • Shadow Function
  • Remote Control via Ethernet or RS-485
  • Various built-in Test Signals
  • Waveform Monitor/Vectorscope Display Functions
  • Timecode Display Function
  • HDR mode and colour space setting by Payload ID
  • Dot-by-Dot Display Function
  • Multi-Viewer-Screen and  Side-By-Side Picture Mode
  • Auto Setup with supported probes (Konica Minolta CA-310/-410, Klein Optical Instruments INC K10-A, Jeti Technische Instrumente GmbH Specbos 1211-2)
  • 5.1ch Surround Down-Mix Output
  • Image & Test Signal MIX Functions
  • IMD/UMD:TSL V3.1 & V5.0 Support


You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



up


DIVERSE INPUT SIGNAL FORMATS

Available with 12G-SDI, 3G-SDI (SQD/2SI), HD-SDI and HDMI (HDCP2. 2) inputs as standard. Note: SQD=Square Division / 2SI=2 Sample Interleave:



UHD LCD PANEL

It employs a 16.5-inch 3840x2160 pixel UHD LCD panel with a contrast ratio of 800:1 (300cd/M2) using LED backlight. The monitor has a wide viewing angle allowing critical content evaluation within a horizontal or vertical viewing angle of up to 178 degrees.



FAITHFUL COLOUR REPRODUCTION

It provides a wide color gamut corresponding to the ITU-R BT.2020 standard.



SUPPORTS AUDIO SIGNALS

Audio output is available through internal stereo speakers, stereo headphone jack and stereo line out by automatic identification of embedded audio signals multiplexed into the SDI or HDMI signal. An embedded audio level meter can be displayed on screen as standard. Note: The output can be selected from a pair channels or a 5.1 channel down mix.



MULTI-VIEWER

There is an available multi-display for up to 4 screens when inputting HD-SDI or 3G-SDI signals.



TIME CODE

Time code (VITC/LTC) multiplexed into the HD-SDI signal can be displayed on the screen.



REMOTE CONTROL FUNCTION

The monitor can be controlled with the use of a parallel, serial, or wireless remote controller.



WFM/VSC

Waveform and Vector displays are available on screen.



TEST PATTERN

A variety of test patterns are built-in.



USB MEMORY

Various data such as menu, preset and captured image can be stored and copied in a USB memory.

RATINGS / PERFORMANCE HQLM-1720X
DISPLAY PANEL
Display Performance a-Si TFT LCD
LCD Panel Stripe
Number of Pixels H3840 x V2160 pixels
Pixel Pitch W0.09945 x H0.09945 mm
Viewing Angle 178°(up&down, left&right) (more than CR 10:1)
Number of Display Colors 16.78 million colors (RGB each have 8-bit)
Contrast Ratio 800:1(typical)
Brightness (panel) Max. 450cd/m2
Display Size 16:9 W382 x H215mm
ETOF ITU-R BT.2100, SMPTE ST.2084, 2.2, 2.4, 2.6, S-Log, S-Log3, ACES Proxy
Color Space ITU-R BT.2020*, ITU-R BT.709, DCI-P3 D65*, DCI-P3*, ACES*, Adobe RGB*, S-Gamut, S-Gamut3.Cine, Panel
*Color space can not be fully displayed.
Color Temperature Setting D65 / D93 / USER setting (Files 1 to 8)
Power Requirement AC100 to 120 / 200 to 240V±10%, 50/60Hz
Power Consumption approx.120W
Ambient Temperature 0℃ to +40℃ (32℉ to +104℉) (20 to 85% humidity non-condensing)
Storage Temperature -20℃ to +60℃ ( -4℉ to +140℉) (20 to 85% humidity non-condensing)
Dimensions W428 × H309 × D145mm (W16.85 × H12.17 × D5.7 inch)
Weight 8.5kg (18.74lbs)

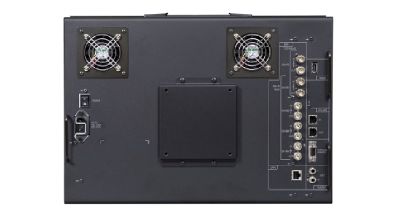

INPUT & OUTPUT SIGNALS (STANDARD)
12G-SDI 2 BNC inputs / 2 BNC outputs (Active Loop Through)
Max.70m with 5.5CUHD cable
3G-SDI 5 BNC inputs (2 shared with 12G-SDI) / 5 BNC outputs (2 shared with 12G-SDI) (Active Loop Through)
HDMI 1 input (HDCP2.2)
Audio Display Embedded Audio Level Meter Display (8ch)
Speaker Rating Output 1W+1W or more
Analog Audio Output Available (Stereo)
5.1ch Surround Down-mix Output Available
Headphone Output Available
