HQLM-3120W
RATINGS

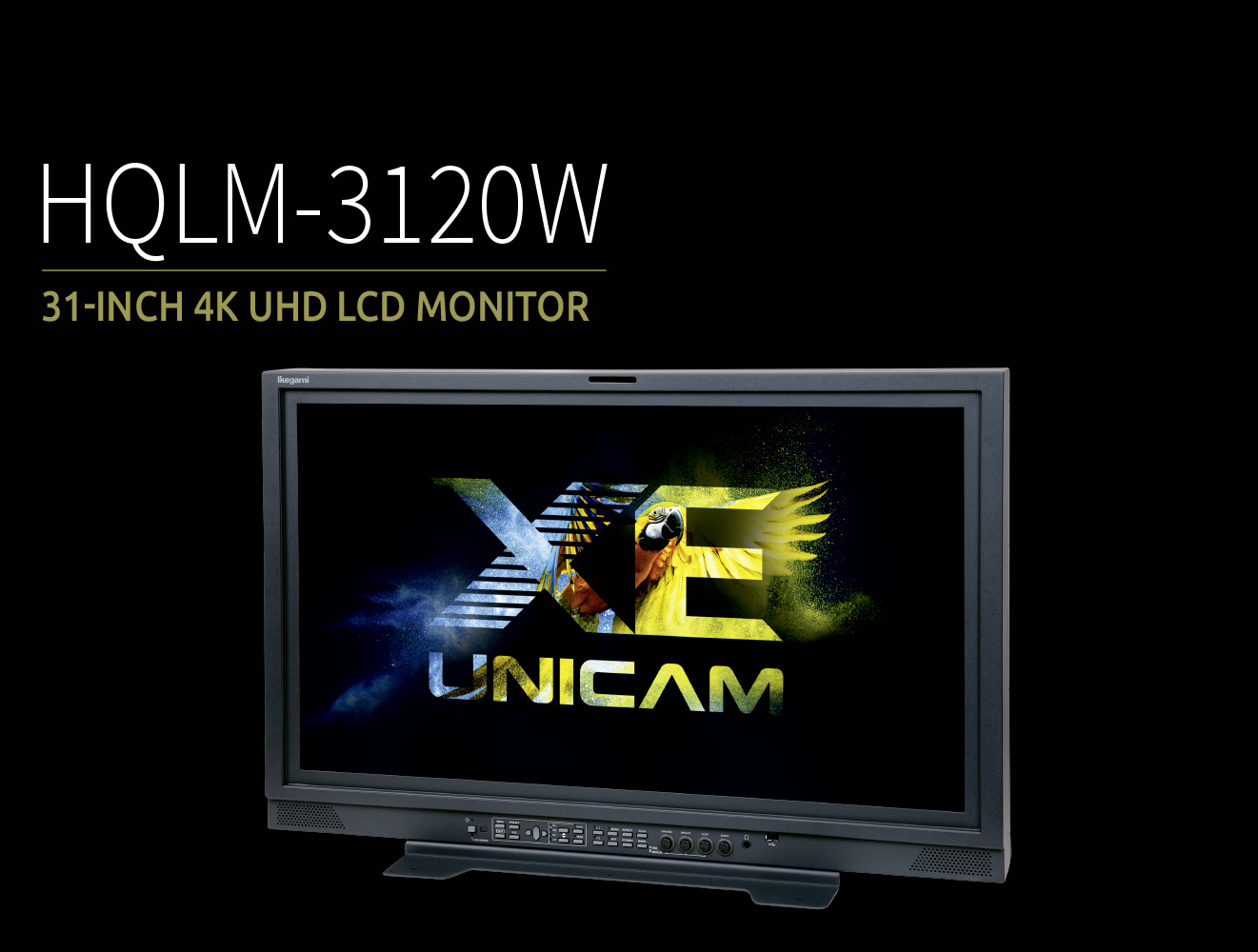

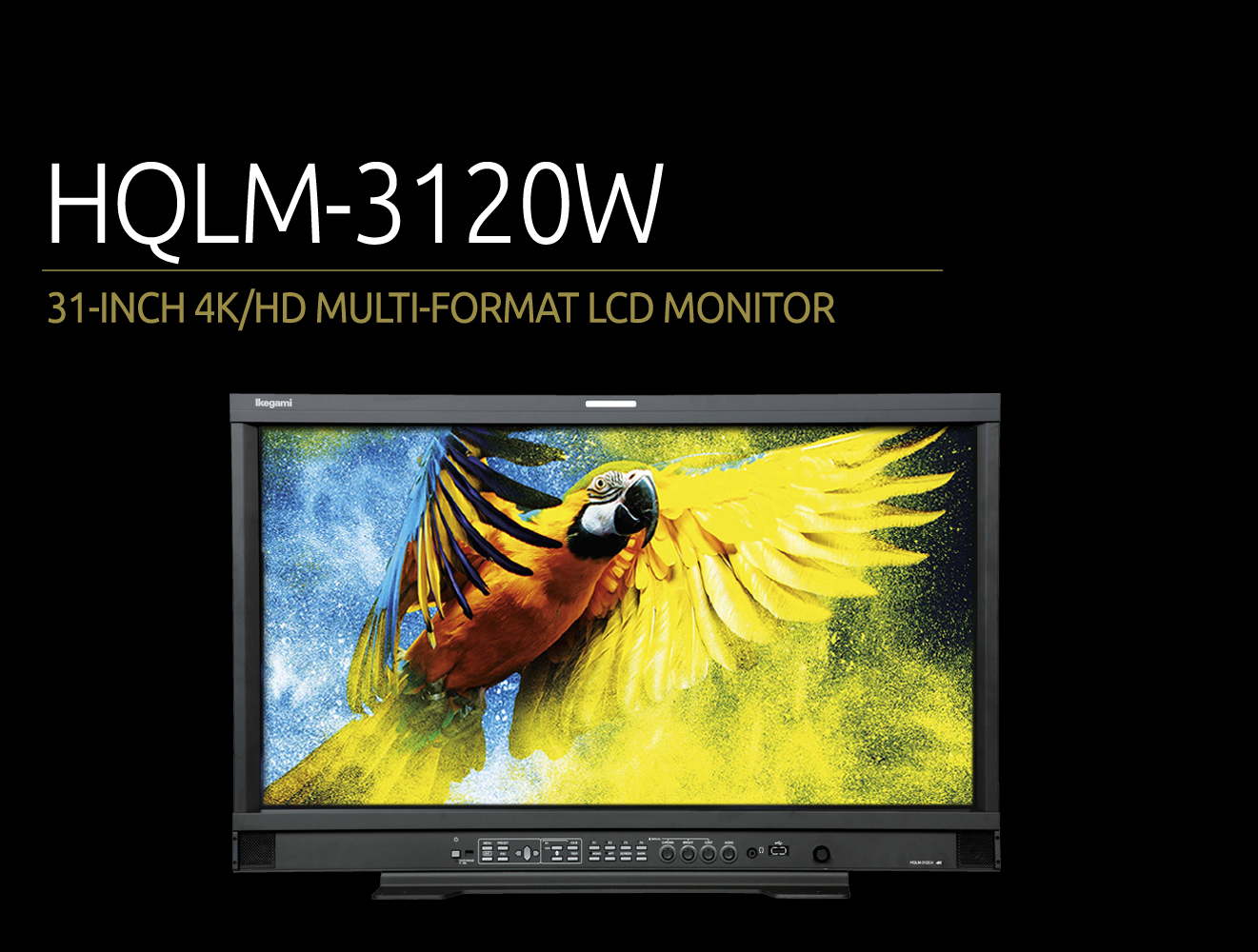

The 4K HDR video monitor HQLM-3120W is equipped with 2 channels of 12G-SDI input/output as standard for efficient configuration with 4K equipment such as cameras and switchers. In addition, this monitor includes 3G-SDI, HD-SDI and HDMI inputs/outputs as standard. It has the flexibility to work with various interfaces in the image production field. By employing a 31.1-inch 4096×2160 pixel UHD LCD panel using LED backlight, it can reproduce high resolution 4K and 2K images.

Convenient features such as Multi-Viewer-Screen, Side-By-Side Video, Audio Meters, User Markers and R/G/Y Tally make the Ikegami HQLM monitor series the ideal companion for broadcast productions.

Supporting various EOTF tables (HLG, PQ, S-Log, …) and Wide Colour Gamut BT.2020 as well as conventional BT.709, the HQLM-3120W is the ideal solution for UHD and HD productions.

  • Diverse Input Signal Formats
  • UHD LCD Panel
  • Faithful Color Reproduction
  • 12G-SDI and 3G-SDI In-/Outputs
  • Compatibility with embedded audio
  • Built-in Marker Function
  • User Marker Display Function
  • Shadow Function
  • Remote Control via Ethernet or RS-485
  • Various built-in Test Signals
  • Waveform Monitor/Vectorscope Display Functions
  • Timecode Display Function
  • HDR mode and colour space setting by Payload ID
  • Dot-by-Dot Display Function
  • Multi-Viewer-Screen and  Side-By-Side Picture Mode
  • Auto Setup with supported probes (Konica Minolta CA-310/-410, Klein Optical Instruments INC K10-A, Jeti Technische Instrumente GmbH Specbos 1211-2)
  • 5.1ch Surround Down-Mix Output
  • Image & Test Signal MIX Functions
  • IMD/UMD: TSL V3.1 & V5.0 Support



You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form


RATINGS / PERFORMANCE HQLM-3120W
Display panel
Display Performance a-Si TFT LCD
LCD Panel Stripe
Number of Pixels H4096xV2160 pixels
Pixel Pitch W0.1704xH0.1704 mm
Viewing Angle 178°(up&down, left&right) ( CR≥10)
Number of Display Colors 1.07 billion colors (RGB each have 10-bit)
Contrast Ratio 1500:1(typical)
Brightness Max. 350cd/m2
Display Size 17:9 W698xH368mm
EOTF ITU-R BT.2100, SMPTE ST.2084, 2.2, 2.4, 2.6, S-Log, S-Log3, ACES Proxy
Color Space ITU-R BT.2020*, ITU-R BT.709, DCI-P3 D65*, DCI-P3*, ACES*, Adobe RGB*, S-Gamut, S-Gamut3.Cine, Panel
*Color space can not be fully displayed.
Color Temperature Setting D65 / D93 / USER setting (Files 1 to 8)
Power Requirements AC100 to 120 / 200 to 240V±10%, 50/60Hz
Power Consumption approx.150W
Ambient Temperature 0℃ to +40℃ (32℉ to +104℉) (20 to 85% humidity non-condensing)
Storage Temperature -20℃ to +60℃ ( -4℉ to +140℉) (5 to 85% humidity non-condensing)
Dimensions (WxHxD) W750 × H459 × D107.2mm (W29.52 × H18.07 × D4.22 inch)
Weight 14.5kg(31.96lbs)
Input & Output Signals (standard)
12G-SDI (BNC) 2 BNC inputs / 2 BNC outputs (Active Loop Through)
Max.70m with 5.5CUHD cable
3G/HD-SDI (BNC) 5 BNC inputs (2 shared with 12G-SDI) / 5 BNC outputs
(2 shared with 12G-SDI) (Active Loop Through)
HDMI 1 input (HDCP2.2)
Audio Display Embedded Audio Level Meter Display (8ch)
Speaker Rating Output 1W+1W or more
Analog Audio Output Available (Stereo)
5.1ch Surround Down-mix Output Available
Headphone Output Available
