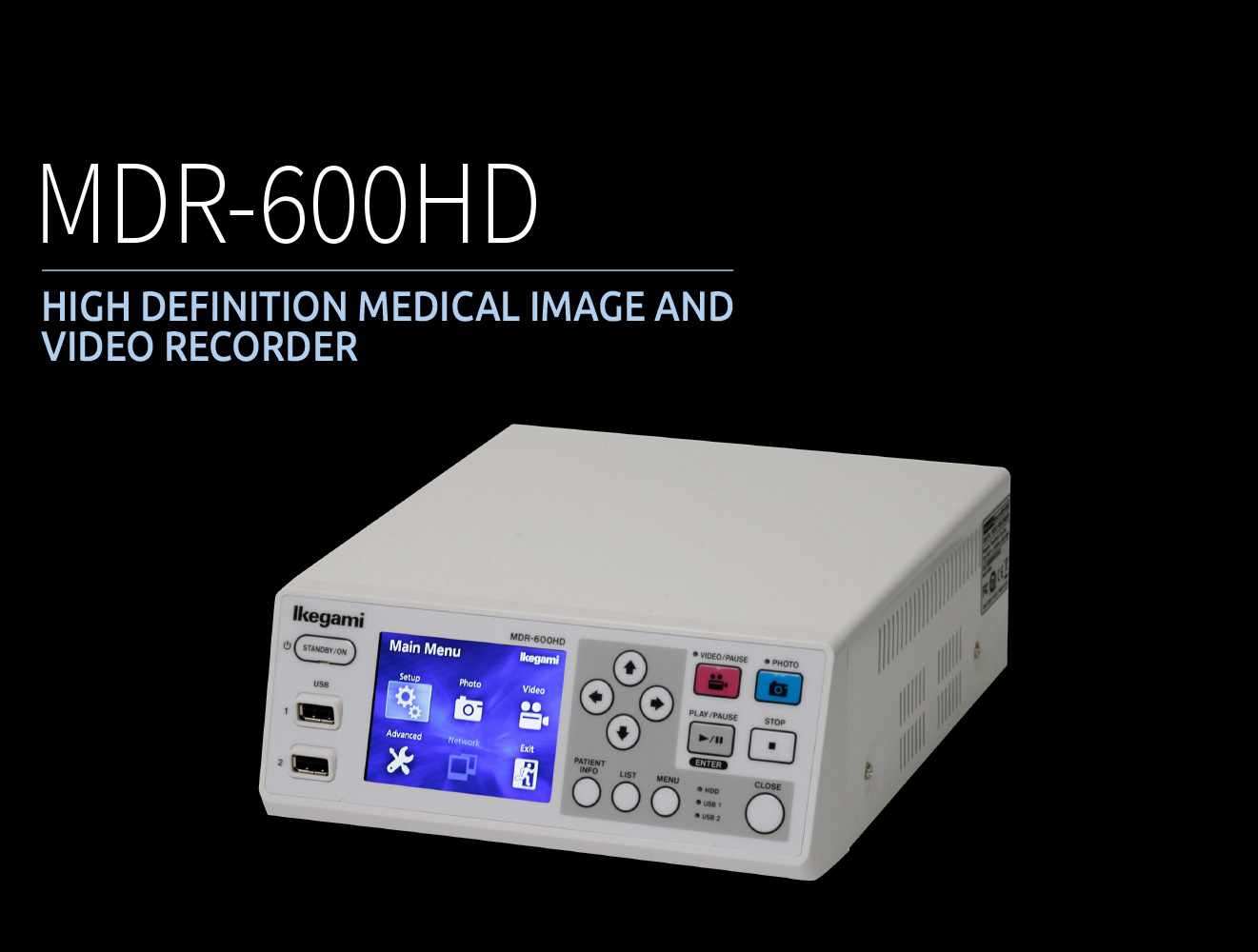

Various type of video signals (SD & HD) can be recorded by simple operation. Reliable simultaneous recording and playback feature on Internal HDD or External USB-device is also available.
- Full-HD 1920x1080 Video and still Image Recording
- Built-in LCD Monitor
- Various Search Feature
- Image Data Transfer
- Back-up Power for Momentary Stop
HIGH QUALITY VIDEO AND IMAGE
High quality SD/HD video and still image (640x480to 1920x1080) can be recorded and play backed simultaneously.
DUAL RECORDING FEATURE
Simultaneous recording feature on Internal HDD and External USB device secure data reliability. "Maximum 3-way recording (Internal HDD and 2x USB devices) is available."
AUTO-SIGNAL DETECTION & AUTO-RESOLUTION FOLLOWING
Simply connect with video input device, it enables the auto-signal detection and the auto-resolution following feature and quick start.
IMAGE-DATA TRANSFER FEATURE (OPTION)
"Transferring data using LAN and retrieving data from internal HDD or mass storage device using USB cable, and auto forwarding to FTP/CIFS server are available."
VARIOUS SEARCH FEATURE
Patient data (Date, ID, Name, DOB, Sex) can be searched and reproduced quickly.
SIMULTANEOUS RECORDING AND PLAYBACK FEATURE
Still image can be saved during video recording, also video or still image can be play backed during video recording period.
Just one button "Video" enable start recording video, also just "Photo" button enable start recording still image.
BUILT-IN LCD MONITOR
Recording or Play backing video can be checked on LCD monitor. Also unit status and remaining data space can be displayed.

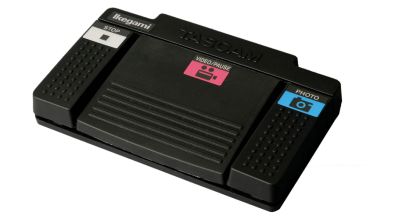

EXTERNAL CONTACT SWITCH
External contact (foot) switch can control recording start, stop and hold.
APPLICABLE SAFETY REGULATION
IEC60601-1, CSA60601-1, EN60601-1, CE
IEC60601-1-2, CSA60601-1-2, EN60601-1-2, FCC classB
