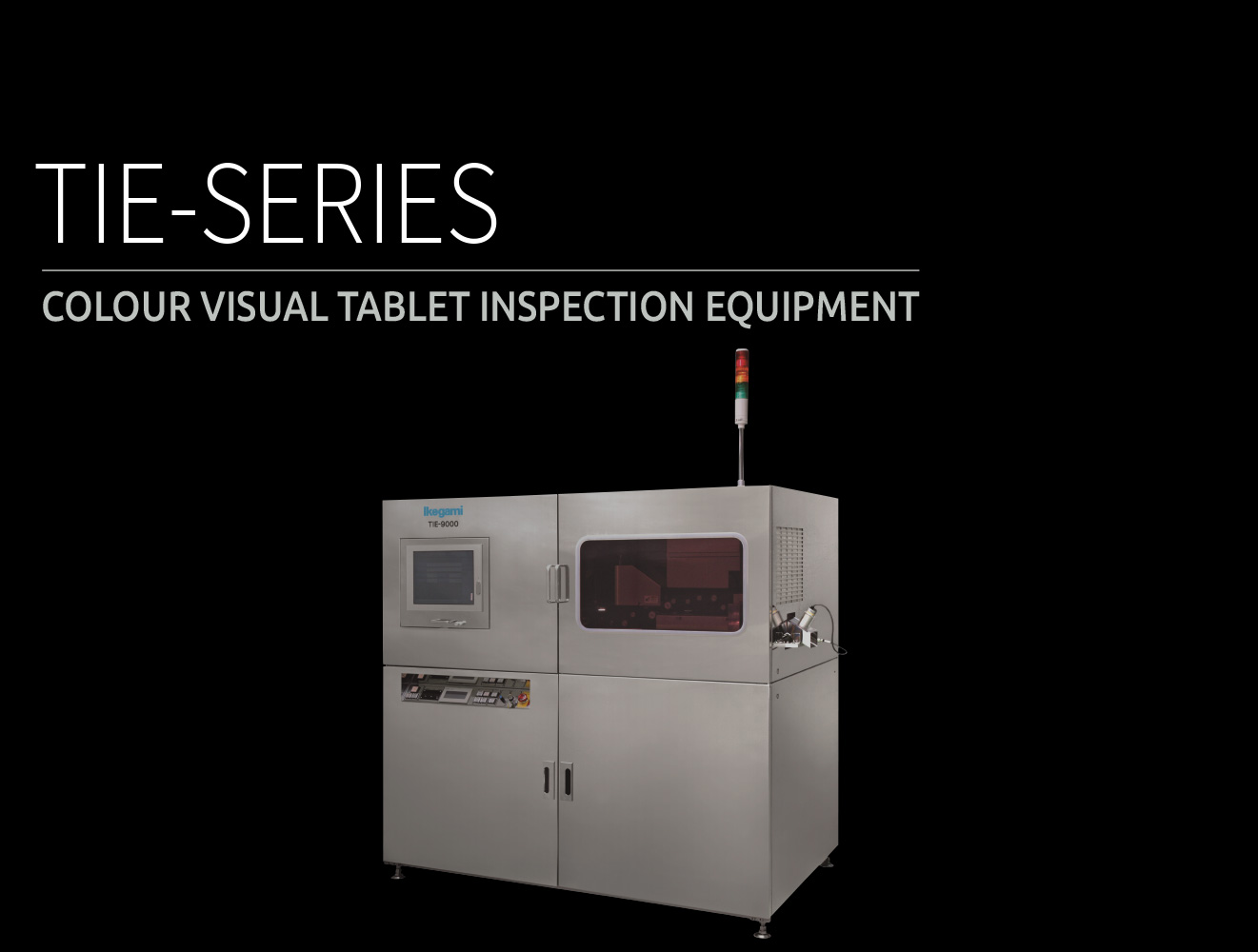

TIE-Series
RATINGS


By adopting the newly developed optical system A.I.I., the TIE-9000 series has the capability of inspecting tablet for diffuse stains, printing defects, and many other defects with a high degree of accuracy. The new developed high quality color line sensor is equipped with the camera unit. Also, combined the high quality image processing technology, the detection accuracy of color stain is significantly improved. The TIE-9000 series can contribute greatly to improving product quality, consistency and safety, as well as helping to improve overall production efficiency.

  • Operate while Checking Transportation Section
  • Camera for High Accuracy Inspection (Option)
  • Process Data Store in PC connected to LAN
  • Easy Setting of pre-set Threshold (Option)
  • Display Sample on Touch Panel
  • RGB Colour line sensor
  • Colour processing technology allows diffuse stains and printing defects to be easily detected
  • High accuracy detection of small defects, foreign matter and fiber in or attached to the tablet
  • Extensive supply of tablet
  • Feeding section
  • Stable high-speed transportation by 2 rows belt transportation section
  • High speed and stable supply
  • Colour touch panel

You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: industrial@ikegami.de
Contact Form

up

RATINGS / PERFORMANCE TIE-Series
Applicable Tablets Plain tablet, Film-coated tablet, Sugar-coated tablet, Irregular-shaped tablet
(Division-lined tablet, Engraved tablet, Printed tablet <Oneside/Both sides>)
Shape 2mm to 8mm *Other sizes may be applicable with customer's requirement
Thickness F9 @ 4K / 60 p, F10 @ 4K / 50 p, F11 @ HD / 59.54 i, F12 @ HD / 50 i
at 2000 lx (White reflection 89.9 %)
Colour White color to Dark Brown color
Inspection Items Front/Back/Sides Inspection Stain, Printing smudge, Printing blur, Chipping, Cracking, Deformation, Color stain,
Discoloration, Color difference, Printing color difference, Hair, Fiber
Inspection Accuracy Front/Back/Sides 50μm or larger corresponding to black spot
Processing Capacity TIE-9000 Max 250,000 to 300,000 tablets/hour, *Depends on the shape and size of tablet.
Processing Capacity TIE-9500 Max 500,000 to 600,000 tablets/hour, *Depends on the shape and size of tablet.
Lighting Standard Inspection Lighting method: High brightness LED diffuse illumination(optical diffusion bulit-in
reflective plate), Light intensity adjustment function, Life estimated: more than 30000h
Lighting Standard Inspection Lighting method: High brightness LED diffuse illumination(optical diffusion bulit-in
reflective plate), Light intensity adjustment function, Life estimated: more than 30000h
Lighting Special Front/Back Inspection High brightness LED oblique direct illumination,Light intensity
adjustment function, Life estimated: more than 30000h
Lighting Special Front/Back Inspection High brightness LED oblique direct illumination,Light intensity
adjustment function, Life estimated: more than 30000h
Lighting Special Front/Back Inspection High brightness LED oblique direct illumination,Light intensity
adjustment function, Life estimated: more than 30000h
Camera Standard
Inspection
High sensitivity color line sensor, lense: F=2.8 f=52mm,
Scanning method: one axis self-scanning method
Camera Special Front/Back Inspection High sensitivity color line sensor, lense: F=2.8 f=52mm
Judging Process Real-time parallel processing method
Power Requirement Requirement Three phase AC200V ±10% 3Φ 50Hz/60Hz, more than 5KW [TIE-9000] (Inside the
inspection equipment, AC200V/210V/220V is selectable at transformer tap)
Power Consumption TIE-9000: Less than 3kW
Power Connection Terminal block: M6 screw R/S/T/FG 4terminal
Air Pressure More than 0.5Mpa
Air Consumption Approx. 400 liter per minute
Air Connection Caliber High coupler socket (400SH,NITTO KOHKI), Inspection equipment side: 400PM NITTO KOHKI
Operating Temperature +20°C to +30°C
Operating Humidity 30% to 70% (non-condensing)
External dimensions Approx. W1780 x H1751 x D1060 mm
Weight Approx: 1400kg
Option 3D inspection, Block removal function, csv support, Powder removal system (SUS spec.,
coating spec.), Printing software, Operation management system, Setting of Sensitivity support function, Simulation Function
