UHL-X40
FUNCTIONS
RATINGS

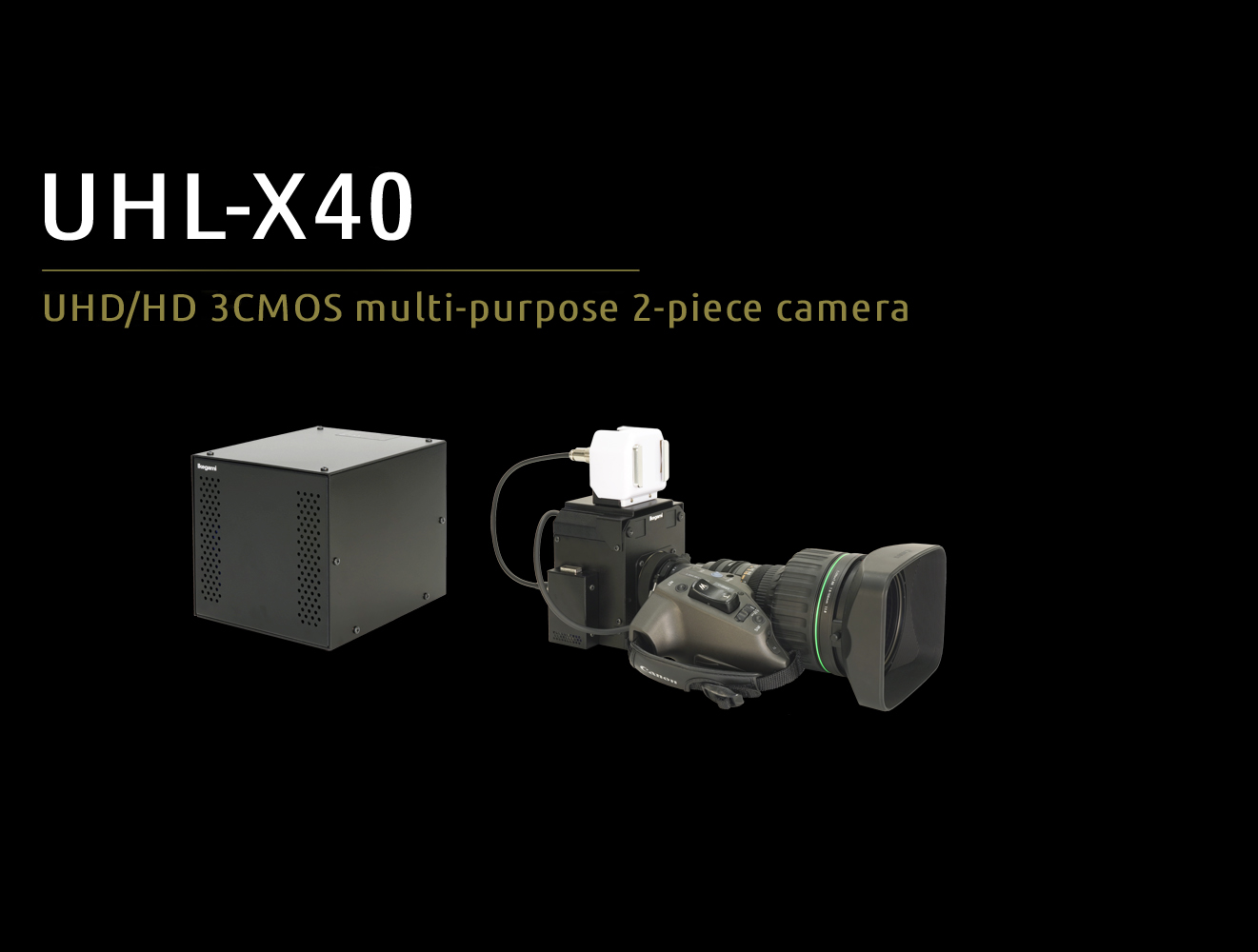

The UHL-X40 is a new ultra-compact box style UHD/HD 3CMOS multi-purpose box camera tailored for broadcasting applications based on the outline of the famous UHL-F4000 camera that was designed with a strong focus on helicopter and aerial applications.

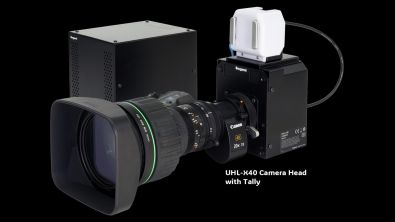

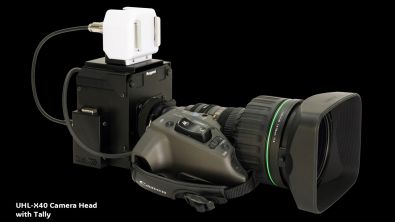

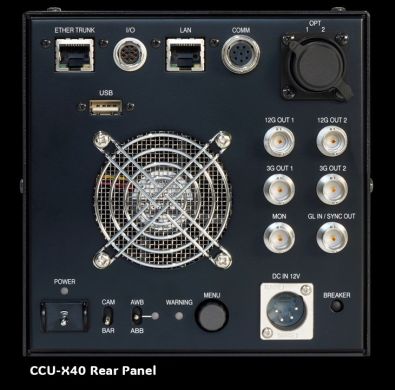

The UHL-X40 consists of two parts, the lightweight and low power consuming broadcast quality camera head plus the compact CCU-X40. The low weight of the camera head (only 1.1kg) allows the use of a Pan & Tilt head with a low payload, thus saving installation space and budget. The camera head measures only 120 x 128 x 89 mm and is powered externally with 12V DC (only 28 Watts). It connects with the CCU-X40 via dual single mode fiber cables to cover a distance of up to 10km. The compact CCU-X40 includes the digital processing part and all the interfaces to the conventional broadcast eco system.



  • Compact Size
  • Global Shutter 3CMOS
  • Full HDR Support
  • OVC (Optical Vignetting Correction)
  • Digital Zoom Function
  • High Sensitivity
  • HD Coutout Function
  • Image Sharpening Function
  • Optical Fiber Connection
  • Focus Assist Function
  • Image Reversal Function
  • Ethernet Trunk Line
  • AVC (Auto Video-Level Control) Function
  • ATW (Auto Tracking White balance) Function



In a nutshell: with its small size and ultra-high performance, the UHL-X40 meets a wide variety of point-of-view camera purposes, including high-end surveillance applications.



You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form


up


Compact Size

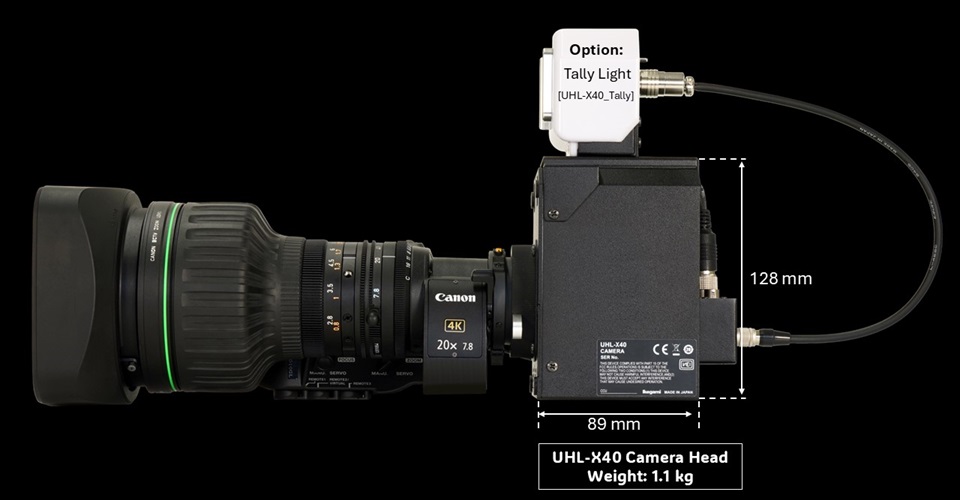

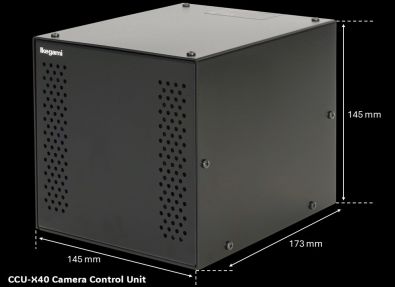

The camera head measures only 120 x 128 x 89 mm and its weight is 1.1 kg (w/o lens). The CCU-X40 only measures 145 x 145 x 173 mm with a weight of about 2.6 kg.

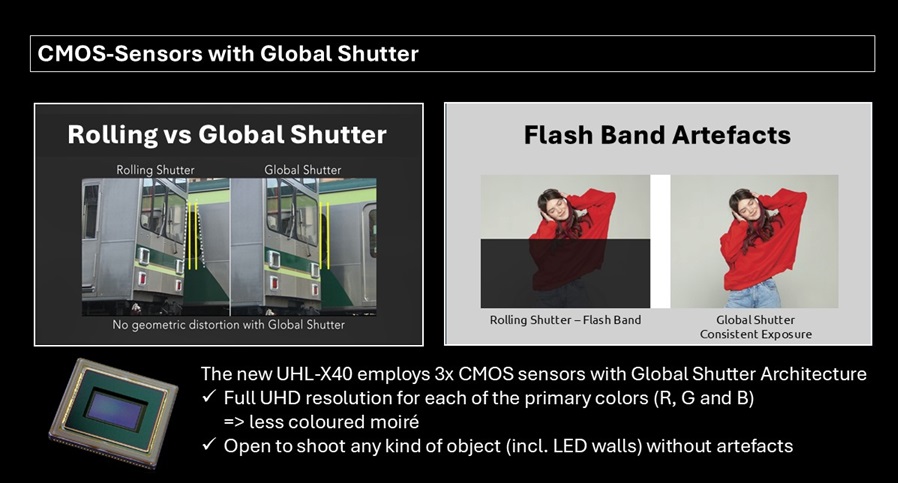

Global Shutter CMOS Sensor with high sensitivity

The newly developed global shutter 4K/UHD CMOS sensors provide an outstanding performance:

Standard Sensitivity: F11 @ 2160p 50

Signal-to-noise ratio: 62dB.

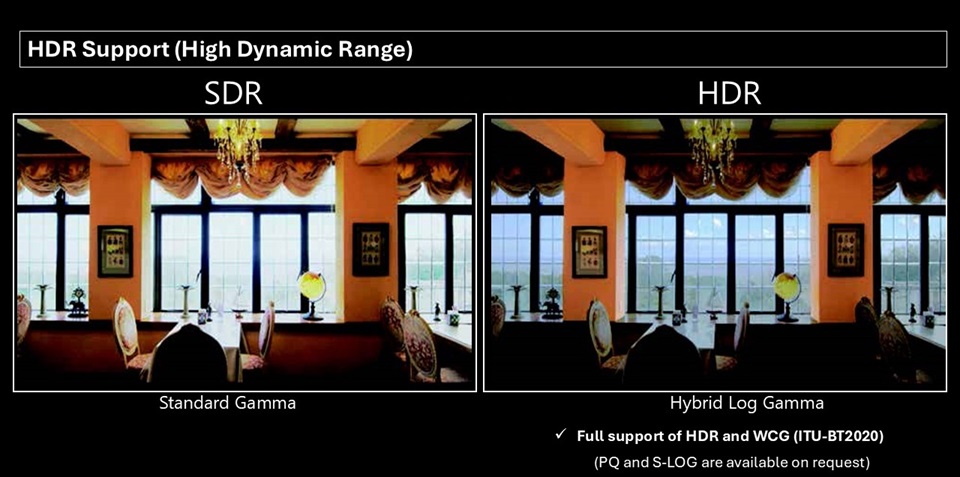

Full HDR Support (High Dynamic Range)

The camera provides an HLG (Hybrid Log Gamma) mode conforming to ITU-R BT.2100 which is an international standard for High Dynamic Range. HDR enables the UHL-X40 to deliver superbly detailed picture quality across the full range of brightness levels from deep black to peak white. With it's wide color gamut (BT2020), the camera also captures rich colors.

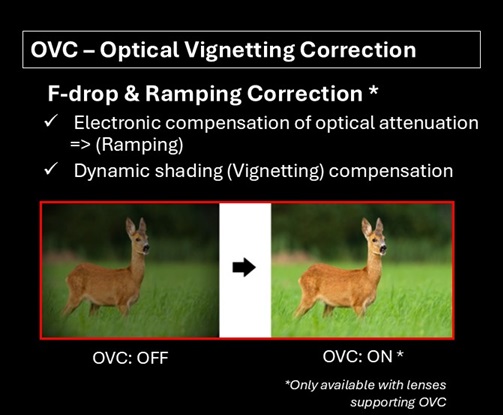

OVC (Optical Vignetting Correction)

The UHL-X40 includes automatic Vignetting correction and F stop ramping compensation for the zoom lens, minimizing dark corners and overall loss of light when the lens in tele position and the iris wide open.

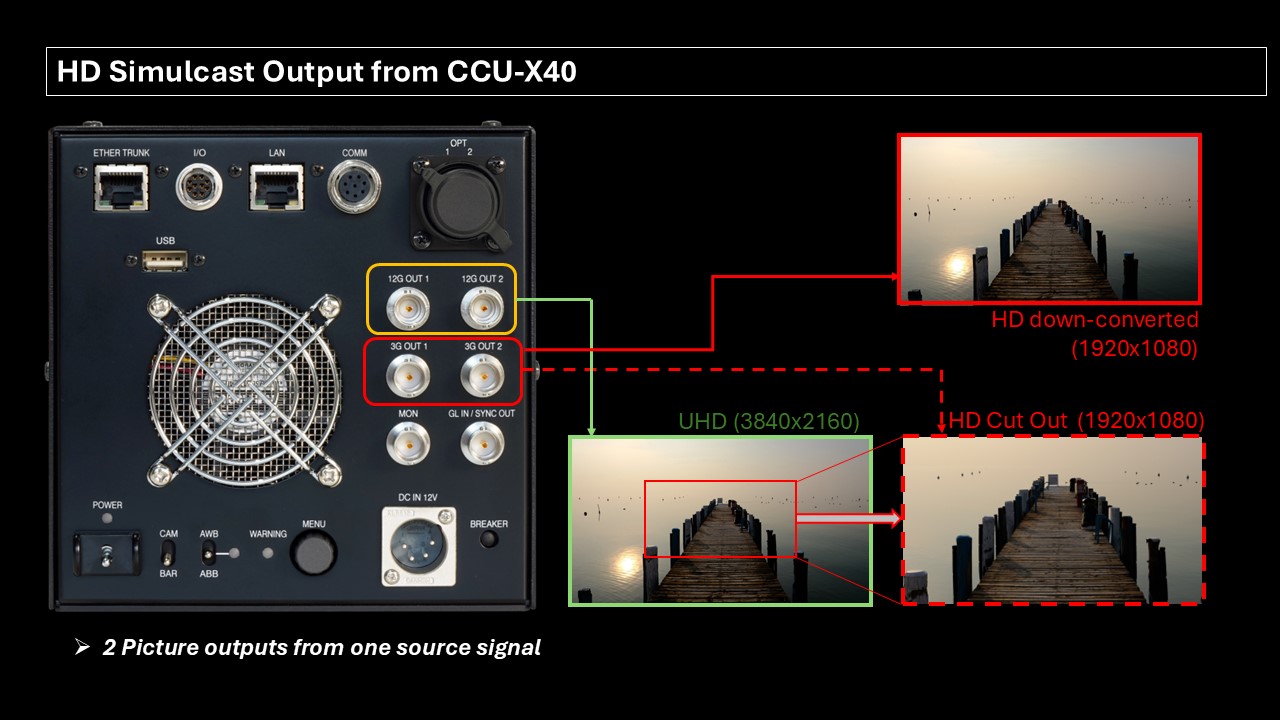

Simultaneous HD Output

The simultaneous HD output at the CCU can be either a down-conversion of the entire viewing angle of the UHD image or an extraction to a 1920x1080 HD window of an area of interest within a fixed 4K/UHD image. With the HD cutout function, CCU feeds the two images with different viewing angles simultaneously.

Digital Zoom Function

The UHL-X40 features a digital zoom function from 1.1x to 10.0x in increments of 0.1 steps, allowing a very smooth and natural zoom. Combined with the optical zoom, the overall zooming of the image looks more natural.

The Digital Zoom function is accessible only via the camera menu or the optional remote controller RM-71F.



Image Sharpening Function

The Image Sharpening Function boosts the edge levels of the image, e.g. when  zoomed in. This function can be effective when shooting a car license plate.



Optical Fiber Connection

Connection from camera head to CCU-X40 is made by standard duplex SM (single mode) fiber cables, carrying the uncompressed 4K/UHD video signals plus a 1000Base-T Ethernet trunk channel. As such, PTZ control commands, script data or teleprompter signals can be transmitted simultaneously.

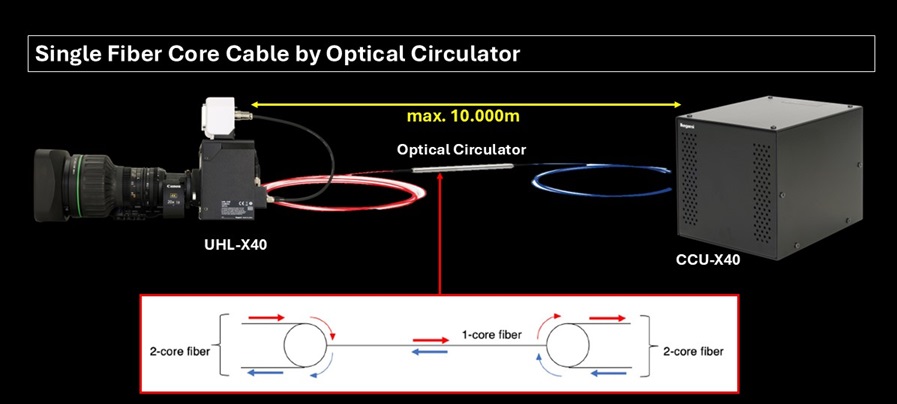

In order to use a single optical cable, an optical circulator can be employed to convert a dual fiber core (TX & RX) to a bidirectional single fiber core cable.

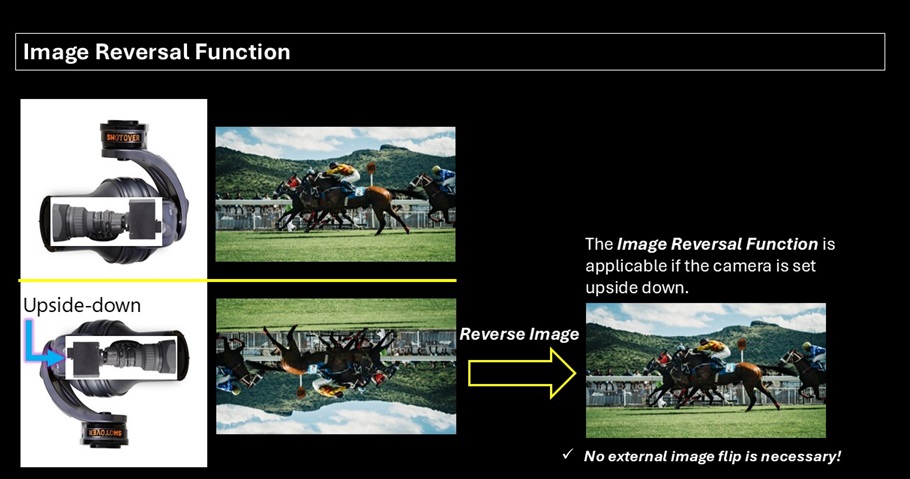

Image Reversal Function

The UHL-X40 can output an up-down reversed image, which is applicable if the camera is mounted upside down.

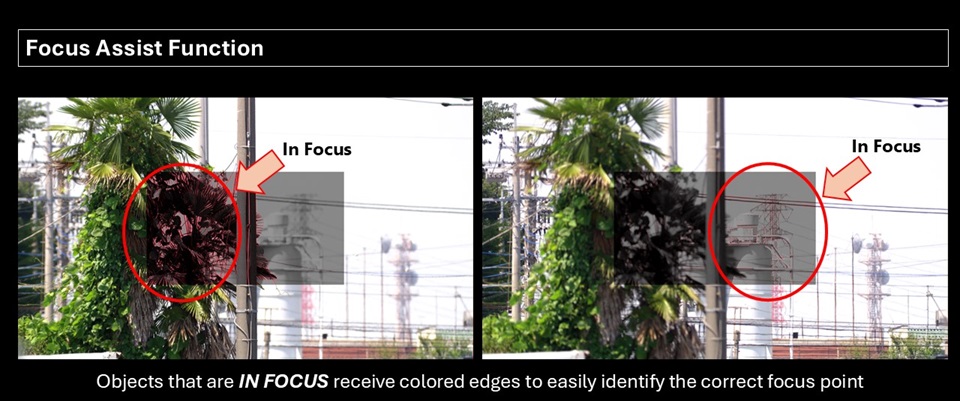

Focus Assist Function

Focus Assist Function is achieved by placing the edge components of the 4K image on the HD MON OUT signal. Therefore it is possible to critically focus 4K images using an HD monitor.

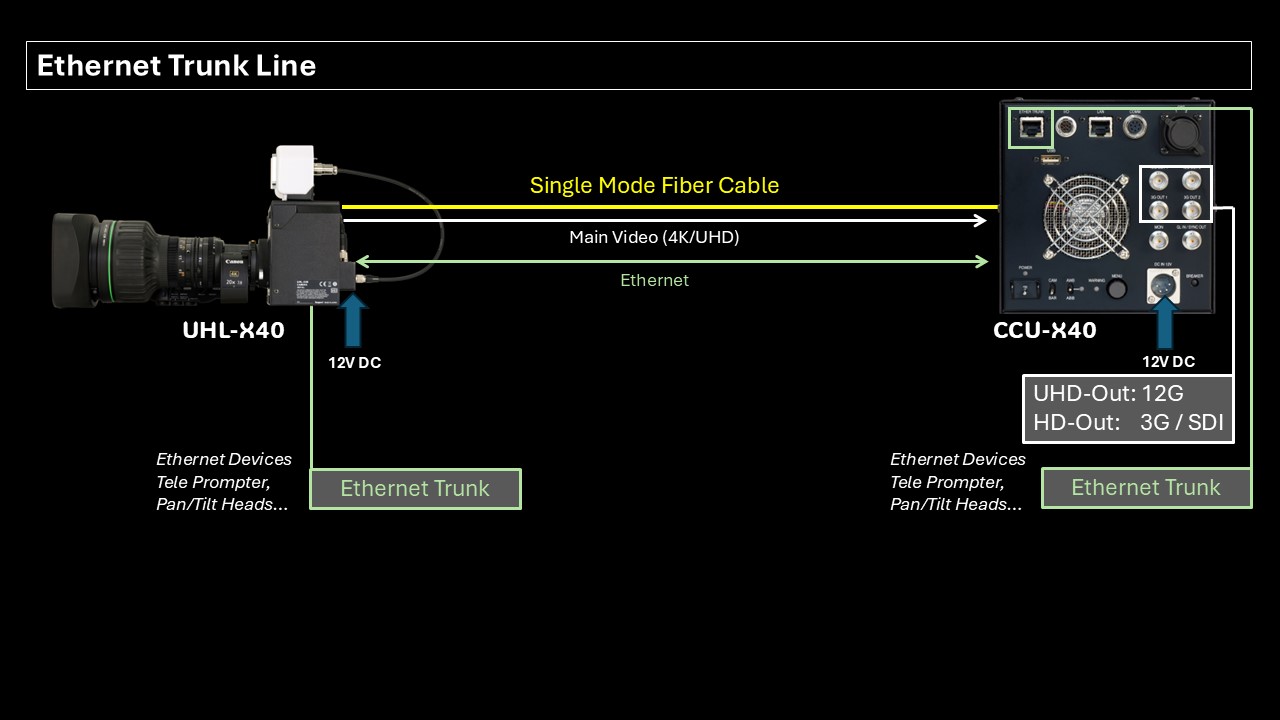

Ethernet Trunk Line

An Ethernet Trunk line is available between camera head and CCU. Using this line enables a controller on the CCU side at a distant location to send commands to a peripheral device such as a Pan & Tilt Head.



AVC (Auto Video-Level Control) Function

The AVC (Auto Video-Level Control) Function allows the camera to maintain a constant video level by automatically controlling ND filter position, IRIS, gain, and shutter speed.



ATW (Auto Tracking White balance) Function

The UHL-X40 features ATW (Auto Tracking White Balance) in addition to one-push AWB. ATW Function makes it possible to automatically adjust white balance when shooting outside with varying color temperature.



RATINGS / PERFORMANCE
UHL-X40

Signal Format 2160p 59.94 or 50 Hz
1080p 59.94 or 50 Hz
1080i 59.94 or 50 Hz
720p 59.94 or 50 Hz
Image Sensor Three CMOS (Global Shutter)
Optical System 2/3-inch RGB prism
Lens Mount B4
Motorized Optical ND Filter
(Options are assignable for CC5)
ND: CLR, 1/4, 1/8, 1/16, 1/64
CC: 3200K, 4300K, 6300K, CROSS, OPTION
Input Voltage Camera Head:DC +11 ~ 16V DC
CCU :DC +12V DC
Operating Temperature -20℃ ~ +45℃
Storage Temperature -30℃ ~ +60℃
Operating Humidity 30% ~ 90%
*no condensation
Dimensions Camera Head : W100 x H128 x D89 (mm)
CCU : W145 x H145 x D173 (mm)
Weight Camera Head : 1.1kg
CCU : 2.6kg
Performance
SN Ratio HD 62dB (typ.)
Limiting Resolution 1000 TVL (typ.) @ HD
2000 TVL (typ.) @ UHD
Sensitivity F11 @UHD/50P
2000lx, Reflectivity 89.9%
GAMMA OFF, 0.35, 0.4, 0.45, CUSTOM1 - 5
*HLG is available for CUSTOM1 - 5
Electronic Shutter 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
*Variable shutter available
Power Consumption Camera Head : 28W
CCU : 82 W
