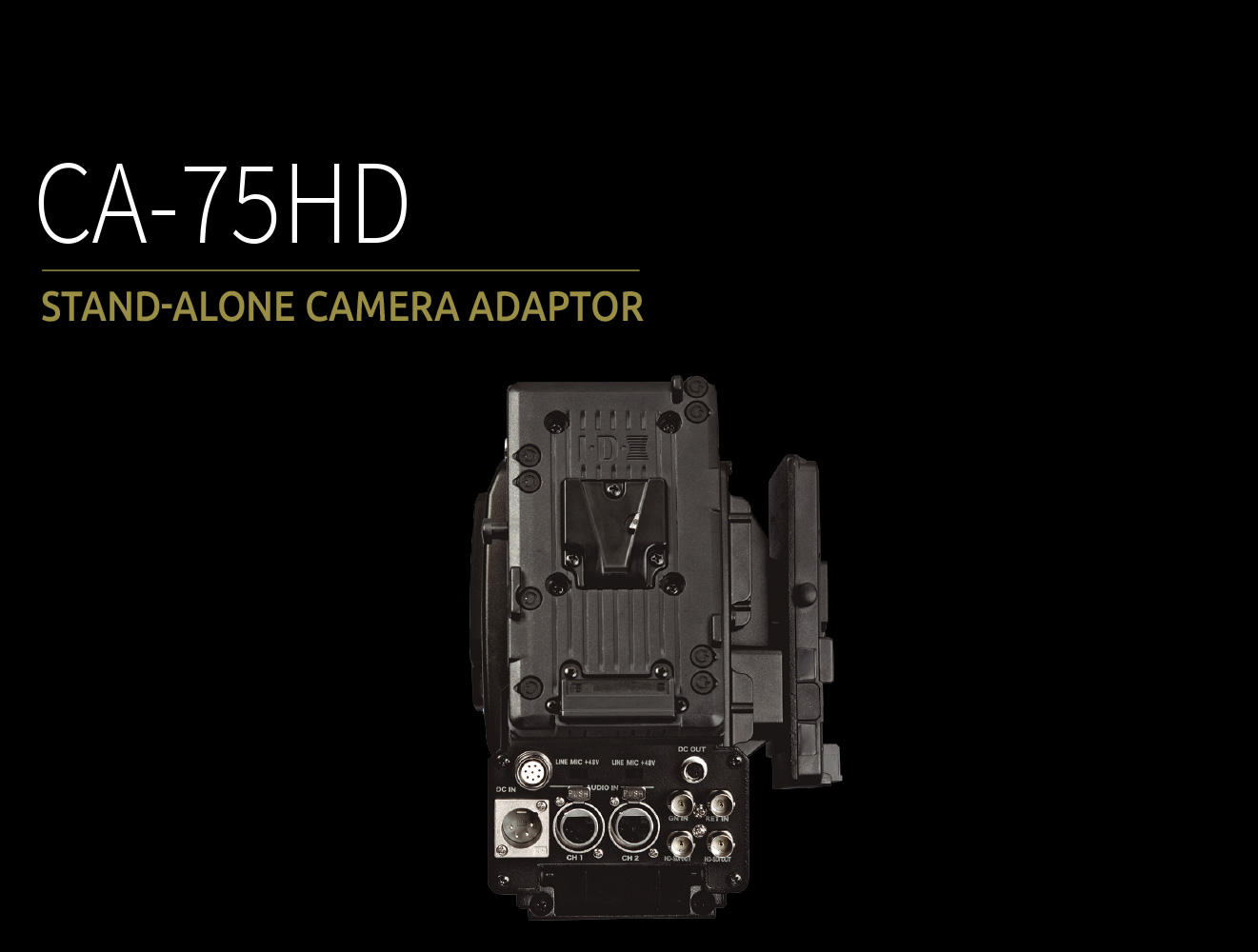

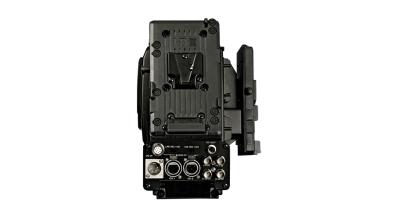

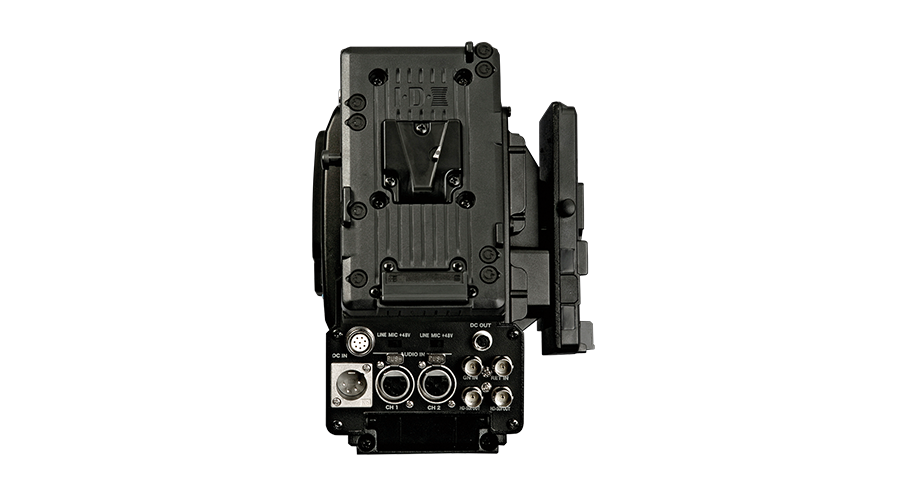

CA-75HD
RATINGS

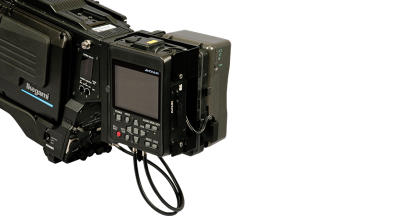

Camera Adaptor for Unicam series HD camera.

You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form




up

RATINGS / PERFORMANCE CA-75HD
Input Signal External Sync BNC x 1 (BB or 3 state SYNC)
Input Signal Audio Audio
AUDIO IN XLR 3 pin x 2
LINE =+4 dB, MIC= -60 dB, +48 V on / off
Input level VR x 2
Input limitter on / off
Input Signal HD-SDI Return BNC x 1
Input Signal Remote Control 8-pin remote control for Ikegami remote panels
Input Signal DC-Power DC Power V mount plate x 2, DC in XLR 4 pin
Output Signal HD-SDI HD-SDI out x 2
Output Signal Audio Embedded audio CH 1/2
Output Signal DC-Out DC OUT +12 V XLR 4 pin (F) x 1
DC OUT +12 V mini 4-pin x 2
DC OUT 12 V CAMTAP x 1
USB 5 V 2 A x 2
Power Requirement DC12 V (10.8 to 18 V)
Ambient Temperature -20 °C to +45 °C)
Dimension / Weight W 160 x H 235 x D 240 mm / 2.0 kg
