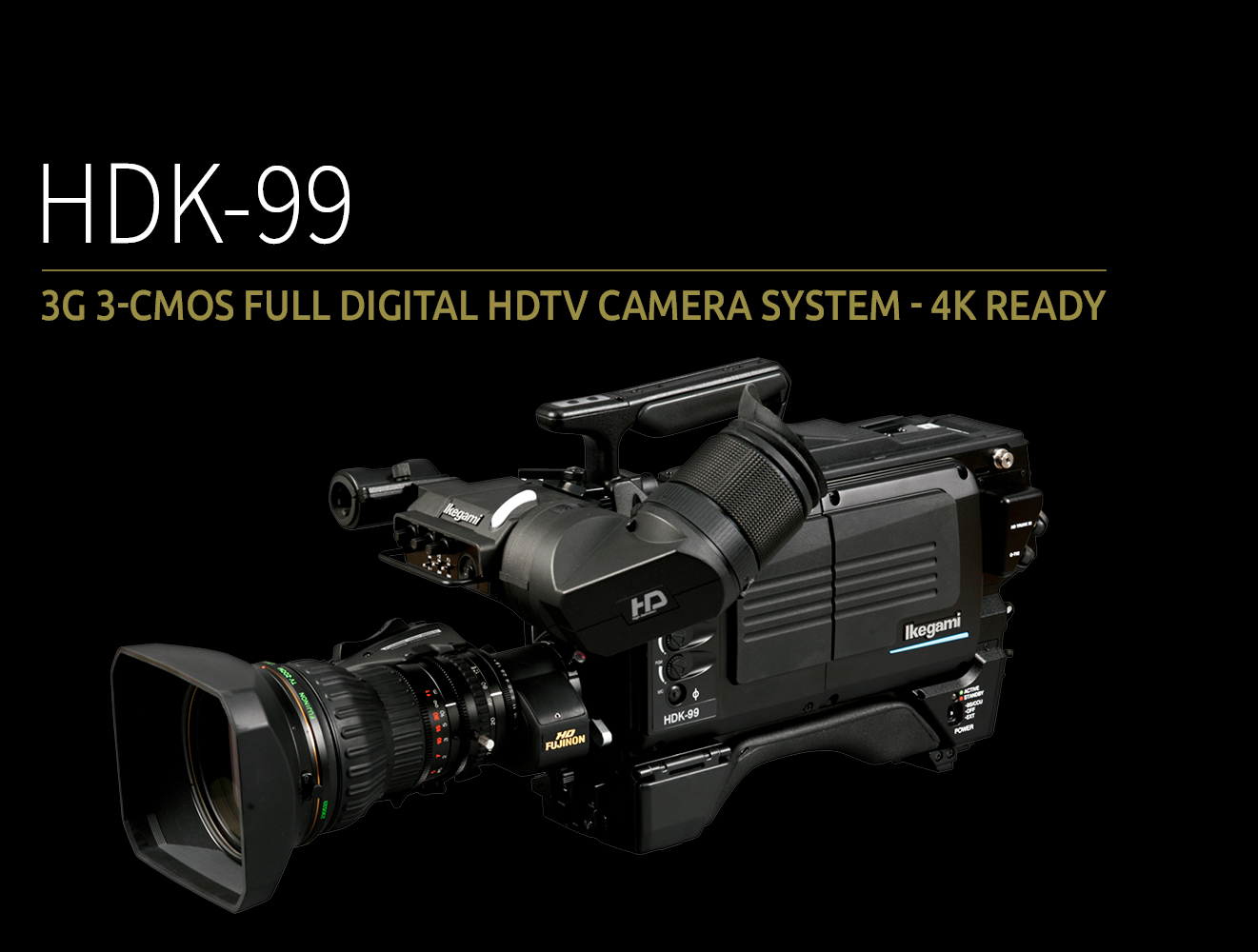

HDK-99
FUNCTIONS
RATINGS


The camera employs 2.6 Mega pixel 2/3-inch CMOS image sensors, achieving superior quality HDTV video with horizontal resolution of 1000TVL, SNR of 62dB or more, and sensitivity of F11.

  • Newly Developed High Performance Full HD 2/3-inch CMOS Sensors
  • Multi-format
  • Supports high-band 3G-SDI (1080p59.94/50Hz) video output
  • HDR (High Dynamic Range)
  • 4K ready
  • Next Generation High Speed Video Processor, AXII
  • 2 times slo- motion (1080i 119.88/100Hz)
  • 16-Axis Color Correction
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



up


NEWLY DEVELOPED HIGH PERFORMANCE FULL HD 2/3-INCH CMOS SENSORS

The HDK-99 utilizes three 2/3-inch 2.6 mega pixel CMOS sensors, each capable of capturing full HD 1920 x 1080 resolution images and a wide dynamic range of more than 600% and giving you an excellent sensitivity of F11 (60Hz) / F12 (50Hz), high signal-to-noise ratio and modulation depth.



MULTI-FORMAT

The camera supports various HDTV formats of 1080p (59.94/50Hz), 1080i (119.88/100Hz), 1080p (29.97/25Hz) and 720p (59.94/50Hz), achieving flexible picture representation.



HIGH-BAND VIDEO OUTPUT

The camera supports 3G-SDI 1080p (59.94/50Hz) wide-band video output as a standard feature for higher picture quality. The single and dual link output is available with CCU-980/BS-98 camera control unit/base station supporting 3G-SDI signal.



HDR (HIGH DYNAMIC RANGE)

The camera provides an HLG (Hybrid Log Gamma) mode, conforming to ITU-R BT.2100 which is an international standard for HDR. It is now possible to expand the range represented from dark to bright, providing superb bright pictures with High Dynamic Range, and also achieves r ich colors with wide color gamut. Hybrid Log-Gamma and various kinds of gamma curve can be flexibly set by users.



4K READY

Slot in BS-98 and CCU-980: Optional board provides 4K output from a 2K source.



NEXT GENERATION HIGH SPEED VIDEO PROCESSOR AXII

Ikegami has developed a new processing engine, AXII, for our next generation HD, 4K, and 8K cameras. This ASIC can perform high speed processing of super high resolution video signals in various formats and frame rates. The HDK-99 utilizes this new processor, making it possible to deliver high quality, high reliability and low power consumption. The camera is also capable of 16-axis color correction and an improved focus assist function.



2 TIMES SLO-MOTION

Switchable for live and slo-motion picture with one camera. It is possible to get a slo-motion picture without changing the camera position. (Option)



16-AXIS COLOR CORRECTION

The color matrix function enables precise color adjustment for all occasions. 16 axes of the color gamut can be fine turned in both hue and saturation. This function works in real time and is extremely beneficial for live multi-camera applications.


up

RATINGS / PERFORMANCE HDK-99
Signal Format 1,080p (59.94/50 Hz), 1,080i (119.88/100 Hz), 1,080i (59.94/50 Hz), 720p (59.94/50 Hz), 1,080p (29.97/25 Hz), 1,080p (23.98 Hz)
Image Sensor 2/3-inch 2.6 million pixel 3CMOS
Optical System 2/3-inch, R,G,B 3 prism, F1.4
Lens Mount B4 mount bayonet
Filter ND: 1/CAP, 2/100%, 3/25%, 4/6,2%, 5/1,6%;
ECC: A/CROSS, B/3200K, C/4300K, D/6300K, E/8000K
Ambient Temperature -20°C to +45°C (-4°F to 113°F)
Relative Humidity 30% to 90% (Non-condensing)
Operating Voltage +11 to 16V
Weight Approx. 4.9kg (10.8lbs) (Camera Head + FA, excluding VF)
Dimensions W138.5 x H270 x D337mm (Camera Head + FA, excluding VF) (W5.5 x H10.62 x D13.25 inch)
Sensitivity 2,000 lux F11 (1,080/59.94i)
S/N Ratio 62dB or more
Limiting Resolution 1000TV lines (in 1080/59.94i)
Electrical Shutter 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000
Modulation Depth 60% at 800TV lines (in 1080/59.94i)
Gamma OFF, 0.35, 0.4, 0.45, Hybrid Log Gamma
Gain -6dB, -3dB, 0dB, +3dB, +6dB, +9dB, +12dB, +18dB
