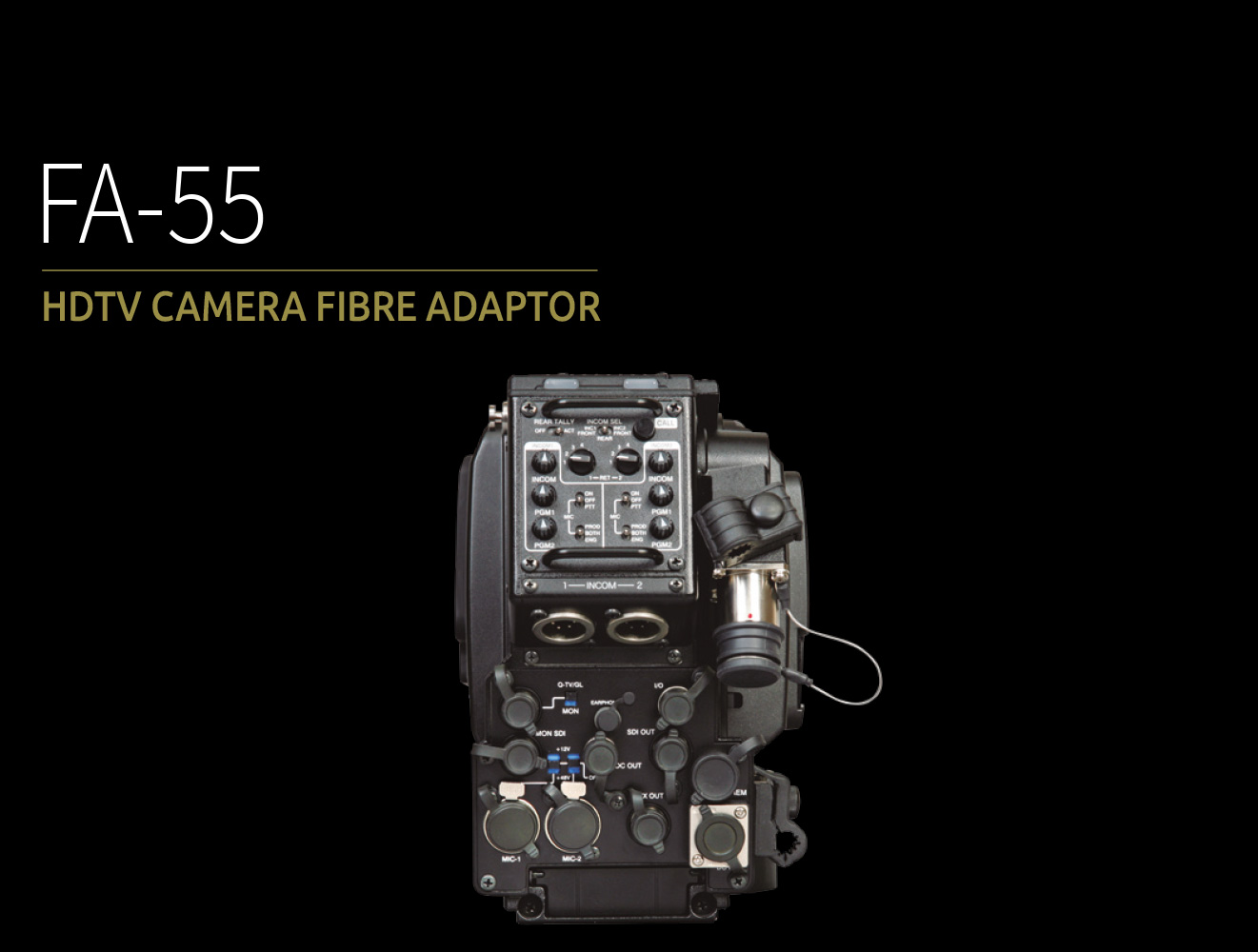

FA-55
RATINGS

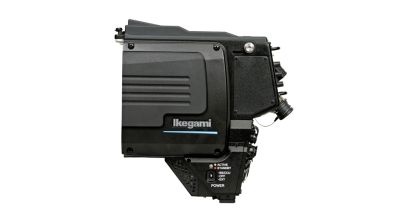

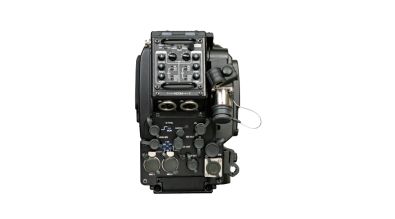

Fiber Adaptor for UNICAM-HD camera series (for 1080i or 720P frame rates). To be connected to BSX-100H or BSX-100M control units.

You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form




up

RATINGS / PERFORMANCE FA-55
Input Signal External Sync SYNC 0.6 Vp-p ±6 dB 75 Ω BNC 1 ch
Input Signal Audio -60dB to +4dB (variable) / -20dB (fixed) 2 ch
(600 Ω balanced)
Input Signal Intercom XLR Type or 110 Type CN 2 ch
Output Signal HD-SDI Serial Digital 75 Ω 1 ch
Output Signal Analog Video R, G, B D-Sub CN 1ch (for System Expander)
Output Signal AUX-Out VBS signal 1 ch
(QTV-1, QTV-2 or Main video selectable by menu)
Output Signal Q-TV VBS signal 1 ch
Output Signal Monitor Video VF / RET / MON (MENU Selection)
Serial Digital 75 Ω BNC 1 ch
Output Signal Intercom 0 dBs 4 ch (ENG / PROD / PGM1 / PGM2)
XLR Type or 110 Type CN
Output Signal DC-Out +12VDC 500 mA (max.) 4-pin type 1 ch
