SE-H750
RATINGS

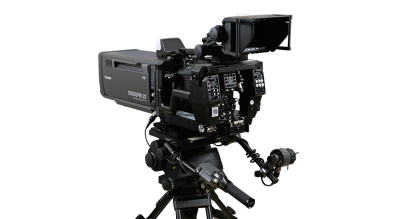

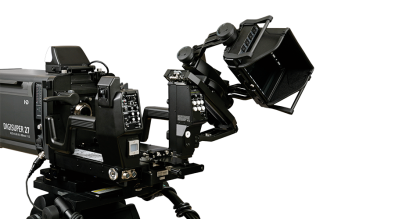

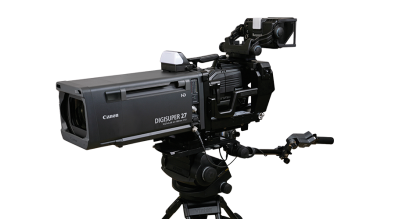

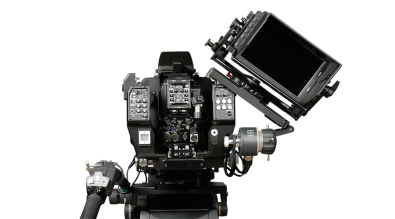

The SE-H750 System Expander enables the use of large Viewfinders and full studio lenses in combination with the UNICAM-HD camera range (HDK-99 / HDK-73). Installing a Camera into the SE-H750 is very easy and hassle free due to the movable Viewfinder attachment. Cables are unnecessary for connection, it’s all part of the highly sophisticated mechanisms.

  • Newly developed cable less Structure
  • No optical Axis Error
  • Portable Lens also can be attached
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



up

RATINGS / PERFORMANCE SE-H750
Power for script lighting DC 12 V 0.5 A
Power for miscellaneous use (with CCU-970/M) AC 220 V 1.0 A
Power for lens DC 12 V 3.0 A
VF VIDEO 1.0 Vp-p 75 Ω, 1 ch or 3 ch
Ambient Temperature -20 °C to +45 °C
External Dimensions W 403 ±5 x H 279.5 ±5 x D333 mm
Weight 16.5 kg (incl. Lens supporter)
